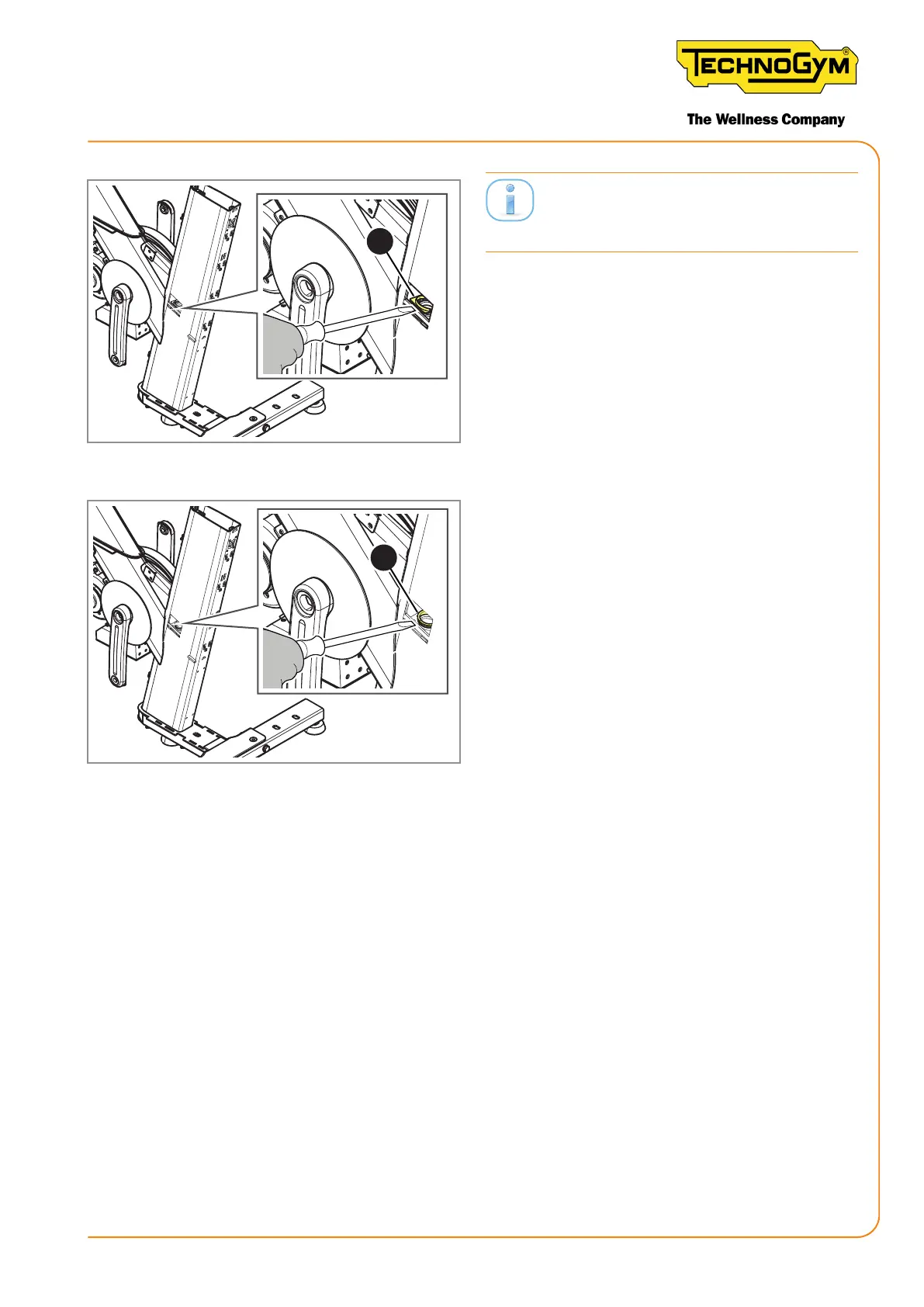

Figure 244
Repeat the procedure used for the right
guard (steps 7 - 11).
13. Remove the bush (9) with a at screw-
driver.
10
Figure 245
14. Remove the bush (10) with a at screw-
driver.
To t the seat guardsback on the bike, follow the
aforementioned procedure in the reverse order.
New Group Cycle (D92):
Technical Service Guide - Rev. 5.1
Document uncontrolled when printed
Page 201
