Technogym Group Cycle D92 - Page 200

6

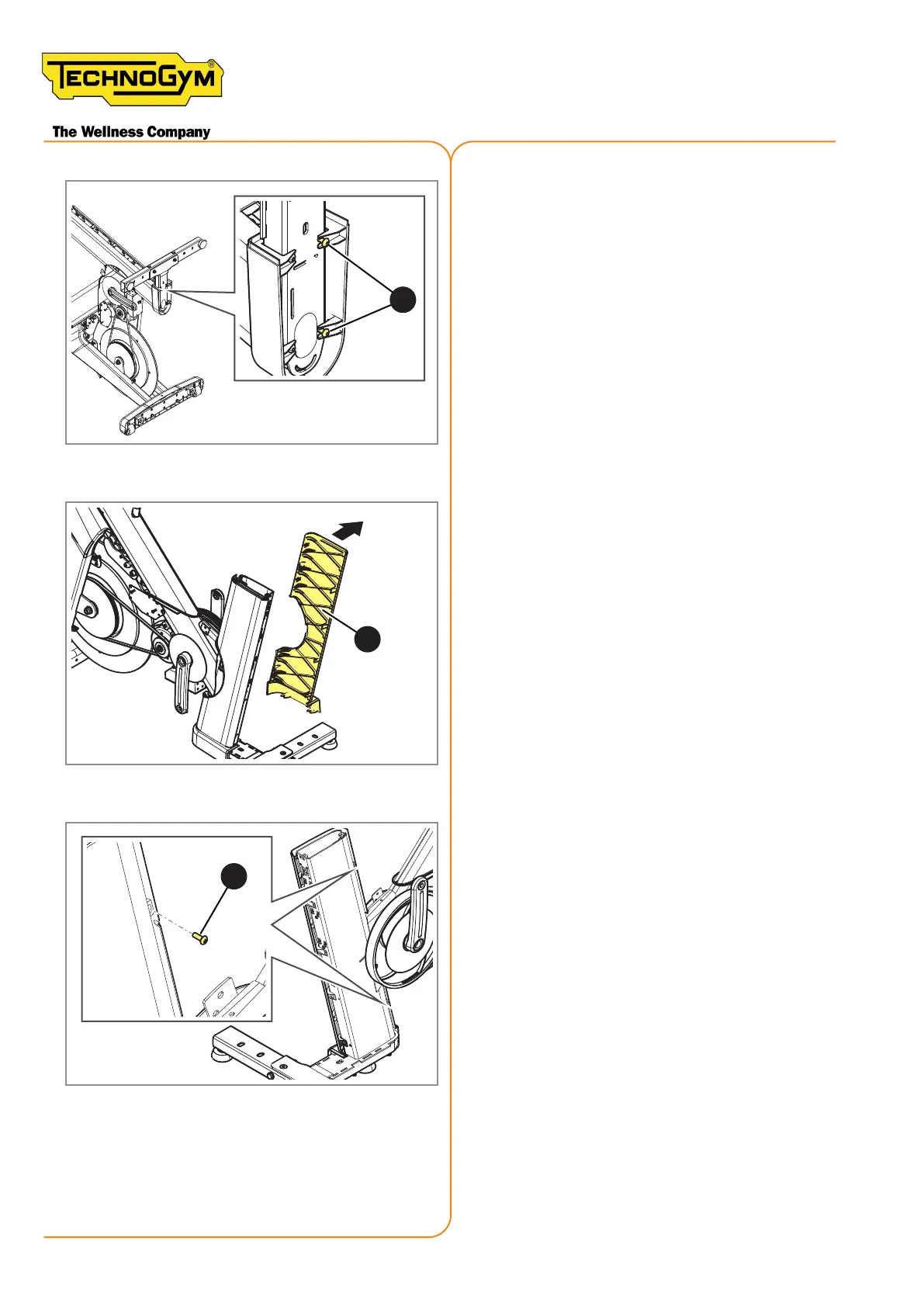

Figure 241
8. Rotate the bike until the handlebar touch-
es the oor.
9. Loosen the screws (6) with a 3 mm Allen
wrench.
7
Figure 242
10. Rotate the bike back to its original posi-
tion.
11. Remove the right guard (7).
8
Figure 243
12. Remove the screws (8) using a medium
Phillips screwdriver.
New Group Cycle (D92):
Technical Service Guide - Rev. 5.1
Document uncontrolled when printed
Page 200
