The following figure shows the actual pulse output signal path through the switch matrix to the device
under test (DUT), and back to the pulse generator. A more detailed look at signal paths is provided in
Using Switch Matrices (on page 2-1).

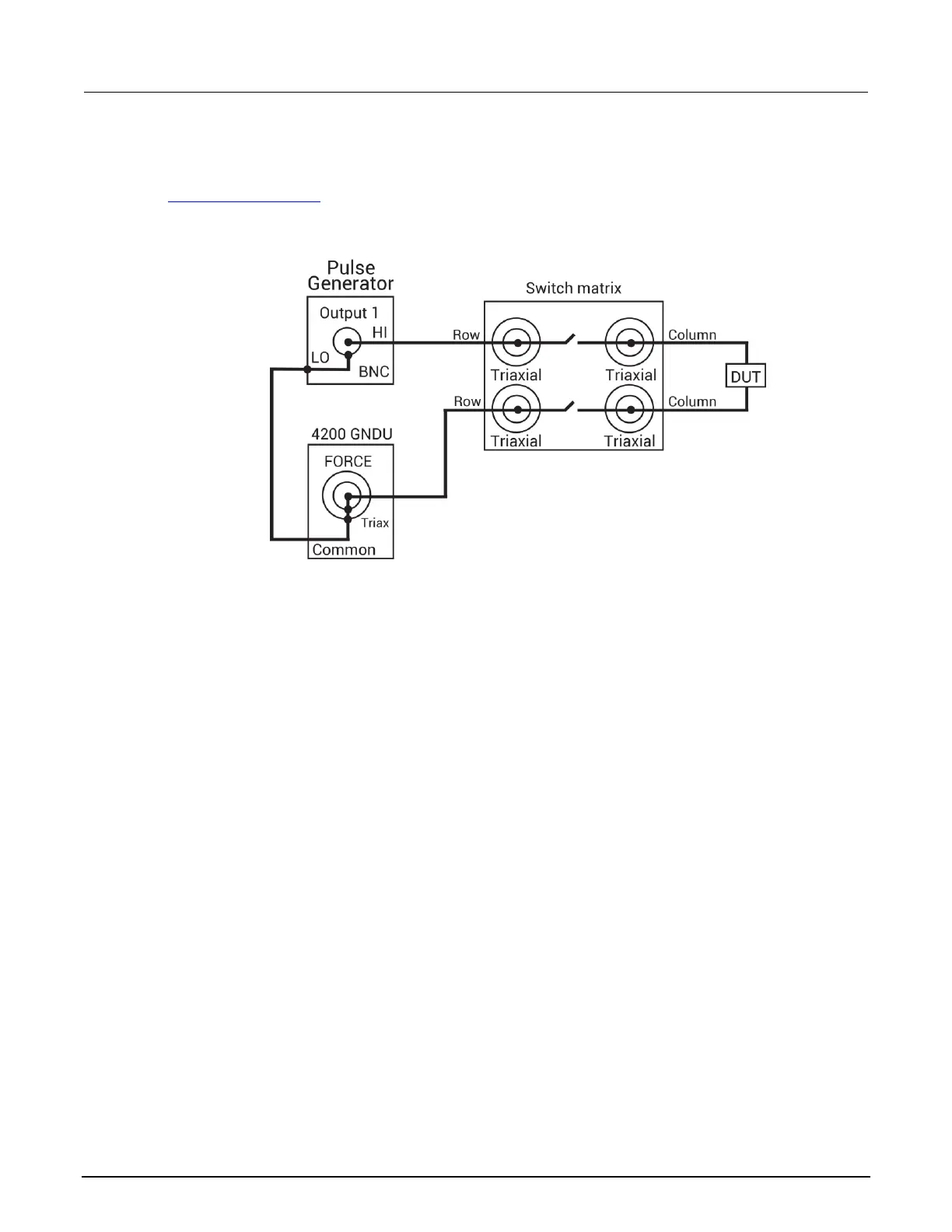

Figure 118: Pulse output signal path
GPIB connections
The 4200A-SCS controls the pulse generator through the General Purpose Interface Bus (GPIB). Use
the 7007-1 or 7007-2 GPIB cable to connect the GPIB port of the pulse generator to the GPIB port of
the 4200A-SCS.
Using KCon to add a Keysight pulse generator to the
system
In order for the 4200A-SCS to control an external instrument, that instrument must be added to the
system configuration. The pulse generator is added to the test system using the Keithley
Configuration Utility (KCon).
Refer to “Use KCon to add equipment to the 4200A-SCS” for instruction. For additional detail on
KCon, refer to the Model 4200A-SCS Setup and Maintenance User's Manual.
