If you use a semi-automatic prober, understand that a Clarius probe action only triggers movements
that are already programmed in the prober controller. Each execution of the action advances the
probe to the next site in this programmed sequence. Site numbers are not communicated between
the prober and Clarius. Therefore, if you evaluate multiple sites, the range of site numbers that you
specify in the Clarius Project window must agree with the sequence of site numbers in the prober
controller program.
Set up a Clarius project that controls a prober:
1. Choose Select.
2. Select Projects.
3. Search for probesites or probesubsites.
4. Select Create to add the prober project to the project tree.

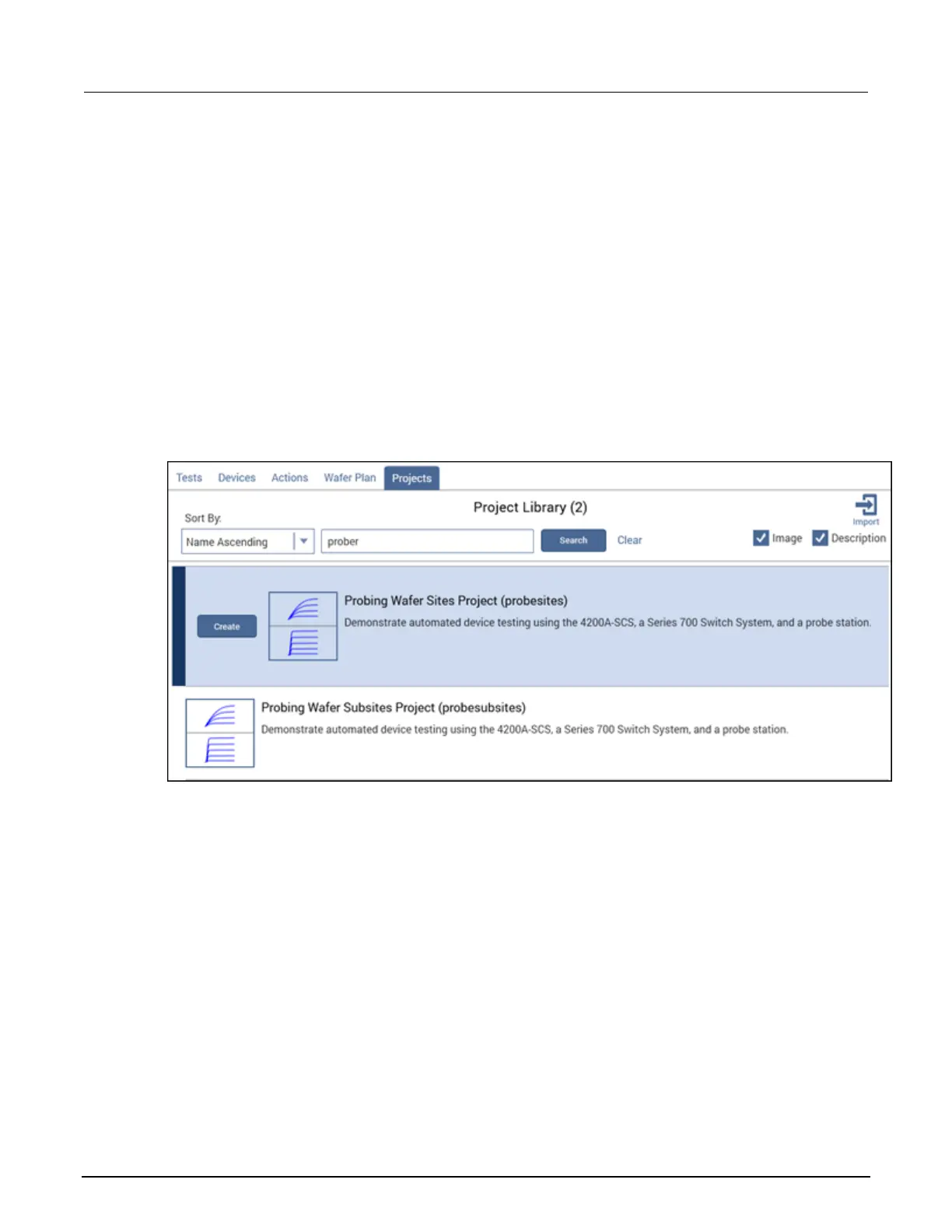

Figure 122: probesites project
Example test execution sequence: probesites project
Configure the probesites project:
1. In Clarius, select Configure.
2. In the project tree, select probesites.
3. Set the Project Execution Loop Settings as needed for your project.
4. Select Run.
5. Select Analyze to review the data.
