Tektronix Keithley 4200A-SCS User Manual

Model 4200A-SCS Prober and External Instrument Control Section 12: Using a Cascade Summit-12000 Prober
4200A-913-01 Rev. A December 2020 12-27
3. Select Probe Station.
4. Select OK. KCon displays the properties for the prober.

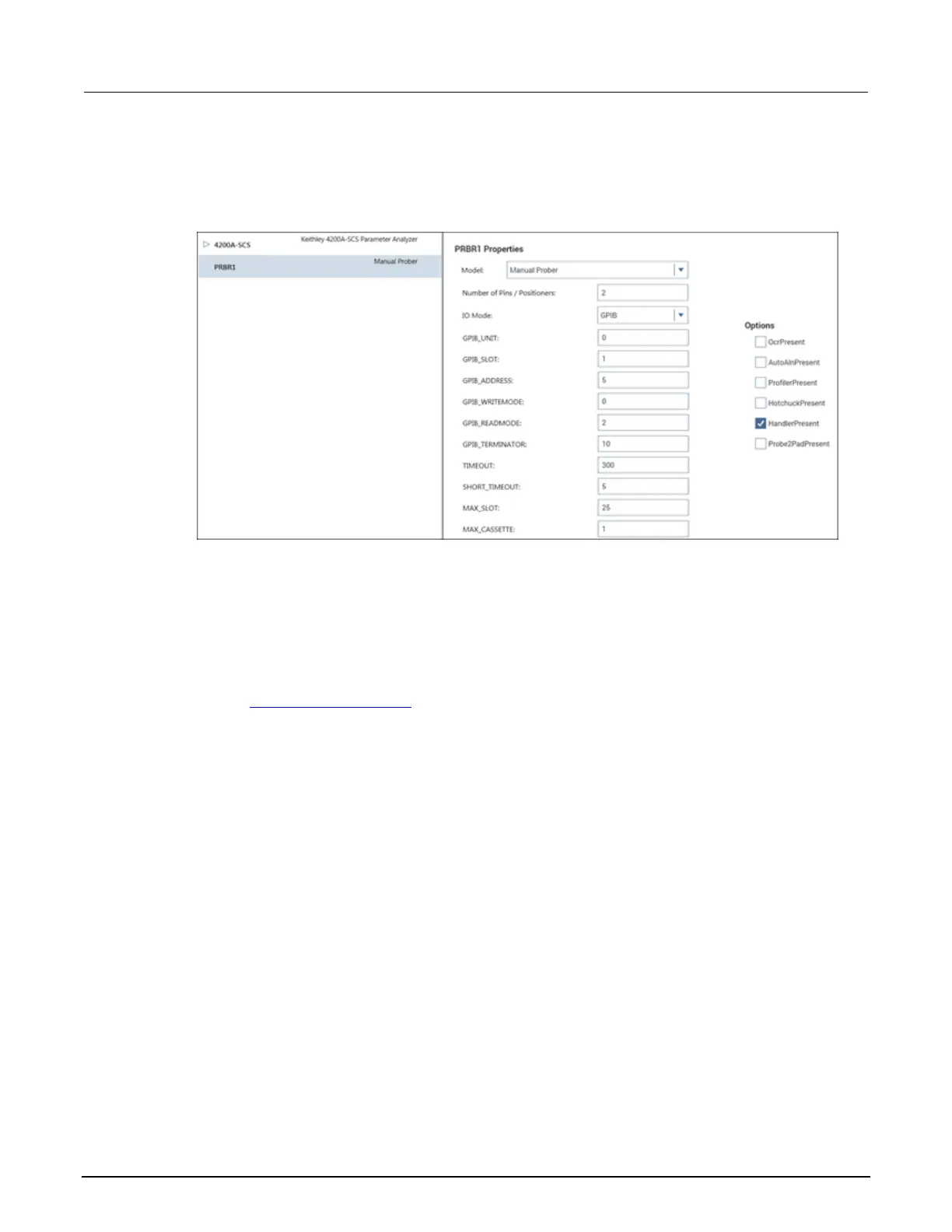

Figure 287: Use KCon to select a prober
5. Select the Cascade 1200 prober as the model.
6. Make sure the Number of Pins / Positioners is correct. The number of pins defined here
determines the pins that are available to assign to a switch matrix card column.
7. Verify the IO Mode is set to GPIB.
8. Verify the GPIB_ADDRESS is set to the address of the prober. This address was set in the
section Set up communications (on page 13-2). The default address is 28.
9. Select Save.
10. Exit KCon.
Clarius
Use Clarius to load and run the probesites or probesubsites project using the new KCon
configuration file, which allows you to execute the project for this prober.
On the 4200A-SCS:
1. Open Clarius.
2. Choose Select.
3. Select Projects.
4. Search for probesubsites.
5. Drag the probesubsites project to the project tree.
