Section 10: Using a Micromanipulator 8860 Prober Model 4200A-SCS Prober and External Instrument Control
10-8 4200A-913-01 Rev. A December 2020
Create a site definition and define a probe list
On the pcBridge computer, create a site definition for a single subsite for each die. To do this, use the
software to create a selection of dies to probe. If a single subsite for each die is to be probed, refer to
Probesites Clarius project example (on page 10-18). Creating a site definition for multiple subsites for
each die also uses the software to create a selection of dies to probe and create a selection of the
subsites on each die that will be probed. If multiple subsites for each die will be probed, refer to the
Probesubsites Clarius project example (on page 10-23).
Use the following information to load a previously-defined and saved site definition.
Single subsite per die
To open the file:
1. Start pcWafer by clicking the pcWfr button in the pcLaunch window. The pcWfr window is
displayed. See the following two figures.

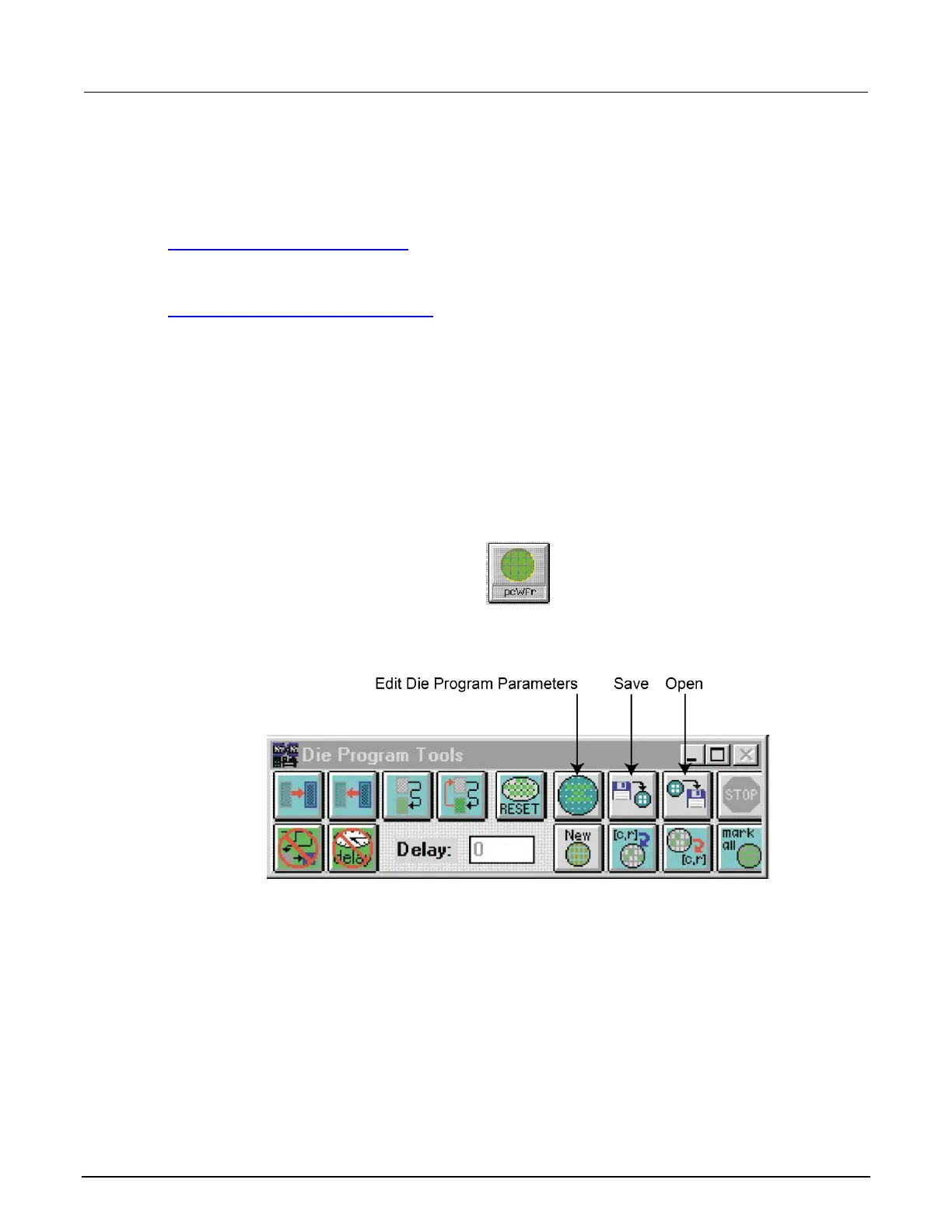

Figure 184: pcWfr button
Figure 185: Die Program Tools window
2. Click Open on the Die Program Tools window to open an existing file or New to create a new file.
3. Select the file and click OK.
