Section 4: Using a Model 590 C-V Analyzer Model 4200A-SCS Prober and External Instrument Control
4-12 4200A-913-01 Rev. A December 2020

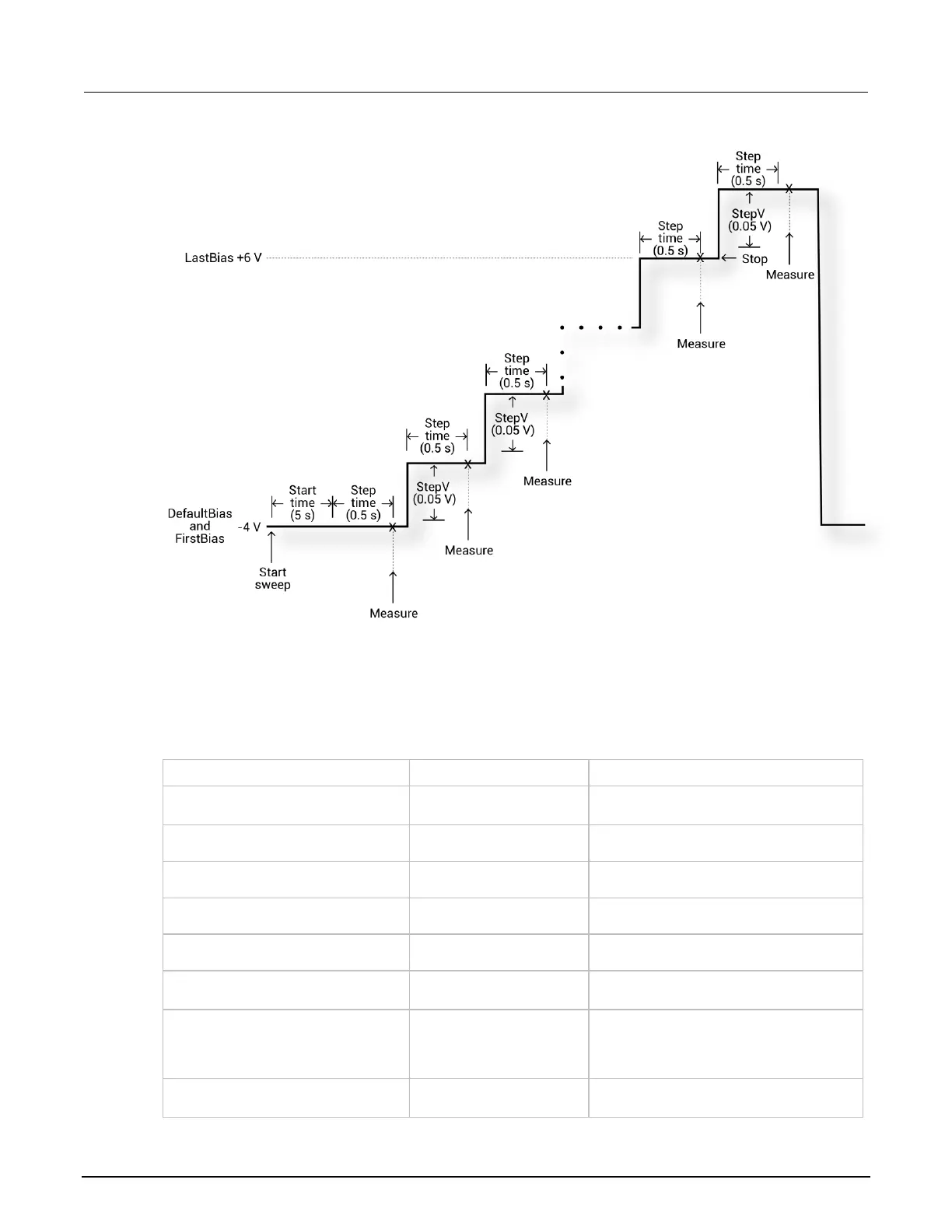

Figure 58: C-V linear staircase sweep
KI590ulib user library
The user modules in the KI590ulib user library are used to control the 590 C-V Analyzer. These
user modules are summarized in the following table. Also listed in the table are names of the user test
modules (UTMs) and actions in Clarius that use the user modules.
KI590ulib user modules
User module
UTM or action name
Description
CableCompensate590
cable-compensate in
the ivcvswitch project
Performs cable compensation using
known capacitance source values.
Cmeas590
590-cmeas
Makes a single capacitance
measurement.
CtSweep590
590-ctsweep
Makes a capacitance versus time
measurement.
CvPulseSweep590
590-cvpulsesweep
Makes capacitance versus voltage
measurements using a pulse sweep.
CvSweep590
590-cvsweep
Makes capacitance versus voltage
measurements using a staircase sweep.
DisplayCableCompCaps590
display-cap-file in
the ivcvswitch project
Places capacitance source values in a
spreadsheet.
LoadCableCorrectionConstants
n/a
Reads the cable compensation
parameters for the range and frequency
specified from the cable compensation file
and sends these parameters to the 590.
SaveCableCompCaps590
save-cap-file in the
ivcvswitch project
Saves entered capacitance source values
to a file.
