Set up and run a switch matrix in Clarius
To set up and run the connectpins action:
1. Choose Select.
2. Select Actions.
3. Search for connectpins.
4. Select the connectpins action.
5. Select Add.
6. In the project tree, select the connectpins action.
7. Select Configure. The parameter settings are displayed, as shown below.
8. Set Pin2 to 6. This connects SMU2 to point 6.
9. Select OpenAll to open all matrix card switches.
10. Set Pin5 to 3. This connects GNDU to pin 5.
11. Leave all other pin settings at 0 to indicate that no connection will be made.

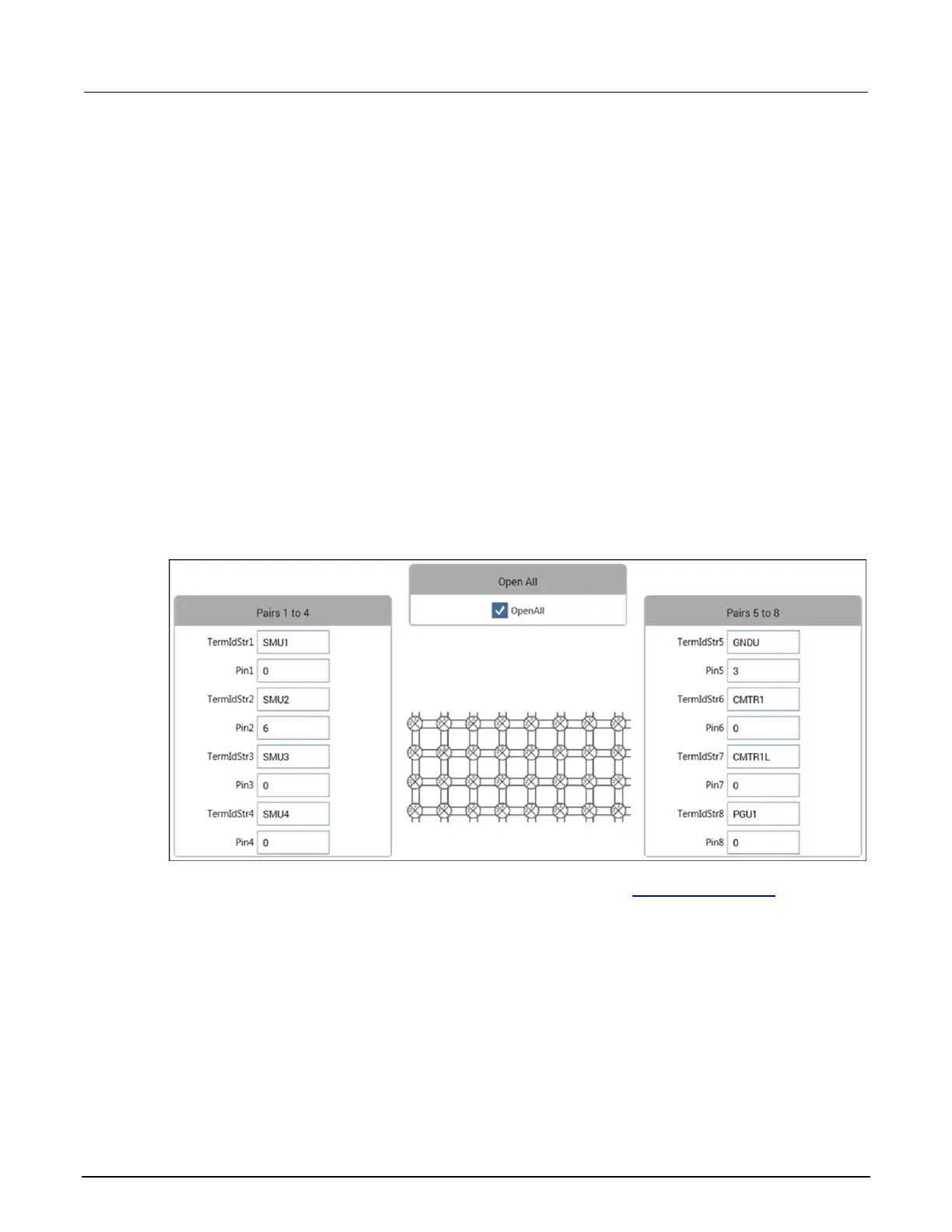

Figure 28: connectpins settings
12. Select Run. The 4200A-SCS connects to the DUT as shown in Switch matrix control (on page
2-16).
