Tektronix Keithley 4200A-SCS User Manual

Section 10: Using a Micromanipulator 8860 Prober Model 4200A-SCS Prober and External Instrument Control
10-26 4200A-913-01 Rev. A December 2020

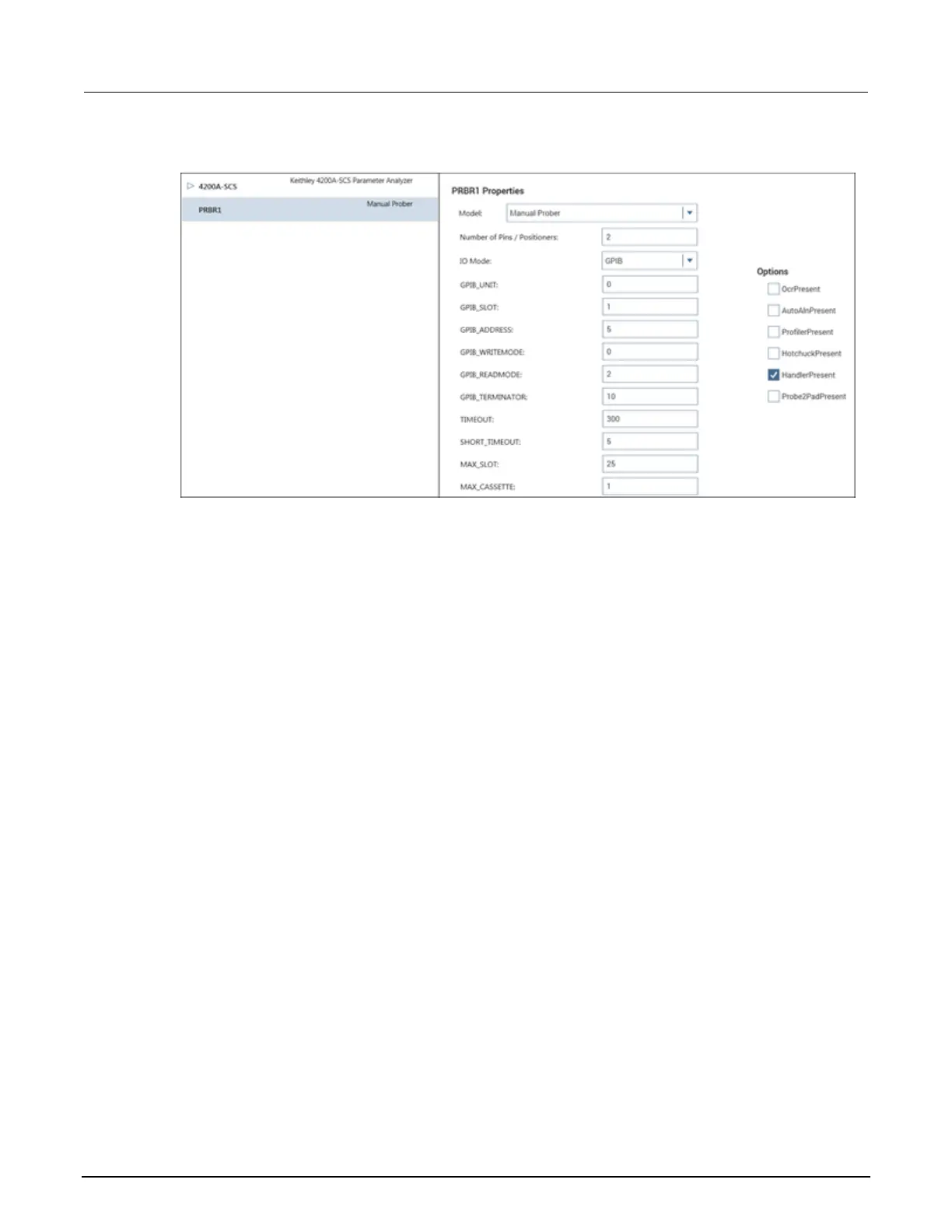

Figure 223: Use KCon to select a prober
5. Select the Micromanipulator 8860 Prober as the model.
6. Ensure that the Number of Pins / Positioners is correct. The number of pins defined here
determines the pins that are available to assign to a switch matrix card column.
7. Select Save.
Clarius
Use Clarius to load and run the probesites or probesubsites project using the new KCon
configuration file, which allows you to execute the project for this prober.
On the 4200A-SCS:
1. Open Clarius.
2. Choose Select.
3. Select Projects.
4. Search for probesubsites.
5. Drag the probesubsites project to the project tree.
