Configure the connectpins action
To configure the connectpins action:
1. Select the first connectpins action you added to the project tree.
2. Select Configure.

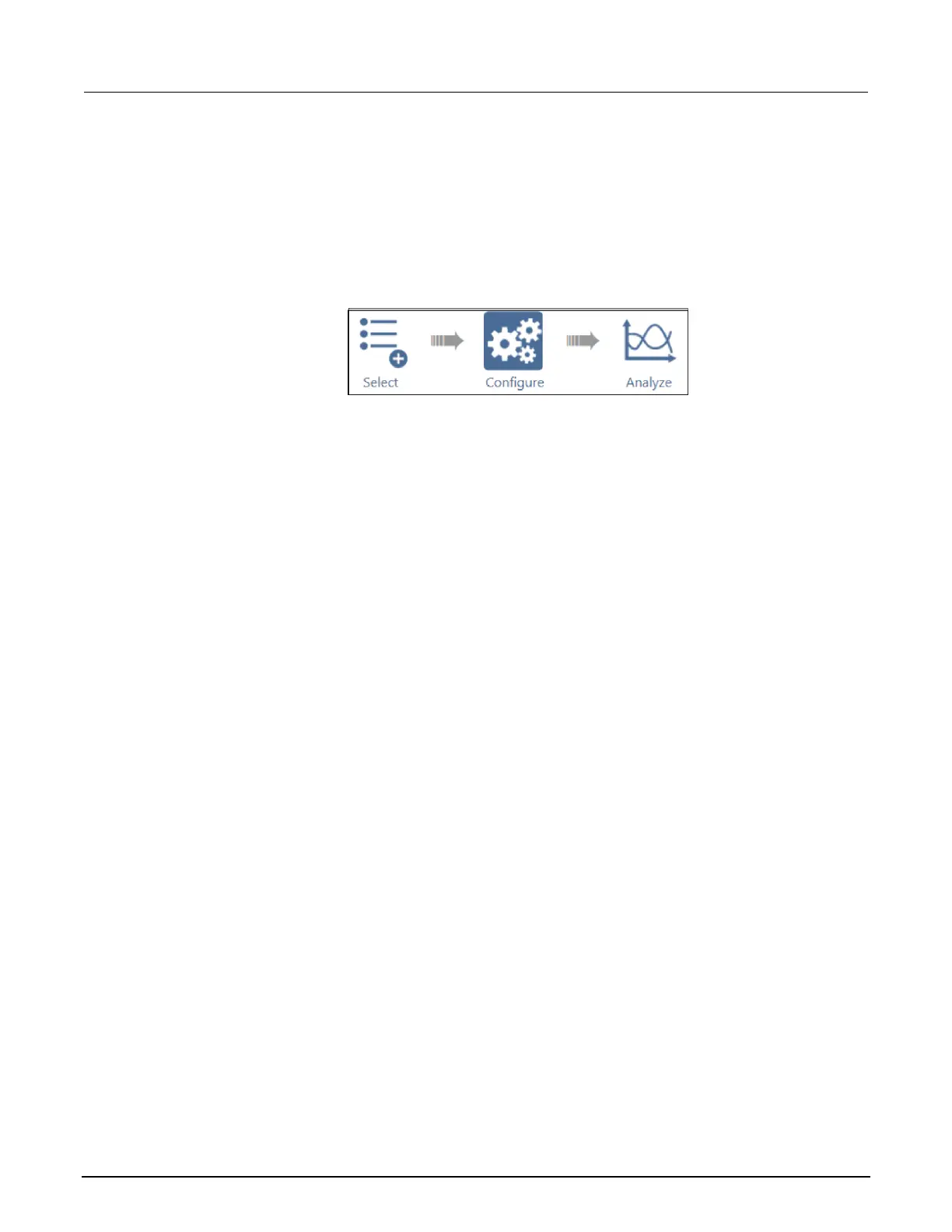

Figure 41: Configure highlighted
3. Make the following connections using the pairs of TermIdStr# and Pin# fields in the action:
▪ SMU1 – Pin 3
▪ SMU2 – Pin 2
▪ SMU3 – Pin 1
▪ GNDU – Pin 4
When you are finished, the Key Parameters view of the action should look like the next graphic. The
order of the instruments does not matter if each instrument is paired with the correct pin number.
In this example, assigning TermIdStr1 to SMU1 and Pin 1 to 3 connects SMU1 to Pin 3 on the matrix.
