Formulas for capacitance tests
Formulas to calculate data for graphs are in the Formulator for each test. To open the Formulator
dialog box, click Formulator in the Test Settings pane for the selected test. The following figure
shows the Formulator for the system82-cvsweep test used in the simcv project.

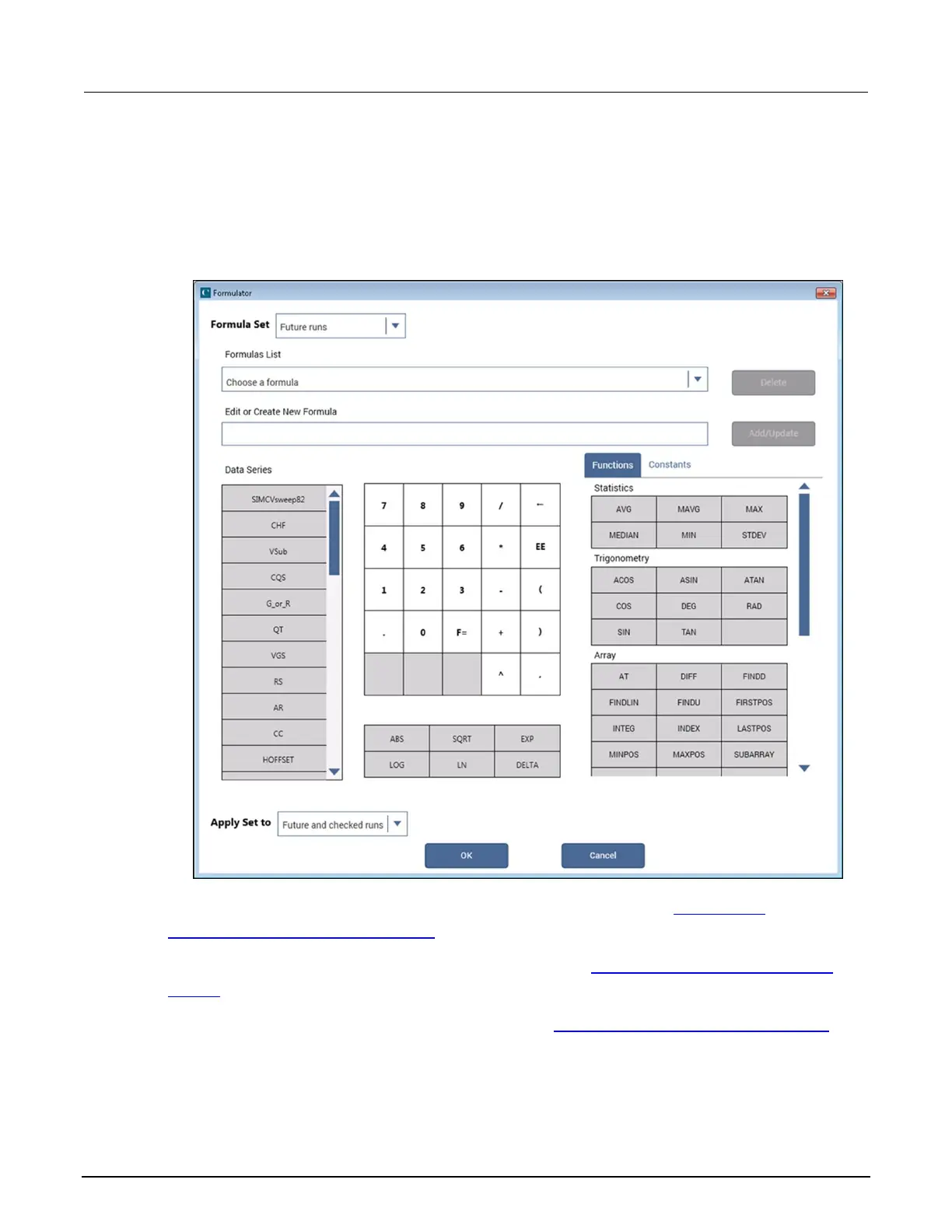

Figure 99: Formulator for system82-cvsweep test (simcv project)
Formulas for the system82-cvsweep test (simcv project) are shown in Formulas for
system82-cvsweep test (simcv project) (on page 6-21).
Formulas for ctsweep test (lifetime project) are shown in Formulas for ctsweep test (lifetime
project) (on page 6-22)
Formulas for cvsweep test (stvs project) are shown in Formulas for cvsweep test (stvs project) (on
page 6-23).
