Model 4200A-SCS Prober and External Instrument Control Section 6: Using a Model 82 C-V System
4200A-913-01 Rev. A December 2020 6-19
CtSweep test description
As shown in C-t sweep (on page 6-18), the CtSweep UTM uses the CTsweep82 user module to
make C-t measurements. Refer to CtSweep82 user module (on page 6-32) for definitions of the input
parameters.
If using the parameters shown in C-t sweep (on page 6-18), the 590 performs 100 capacitance
measurements using a 100 ms sample time between reading samples. The time interval between
reading samples is determined by the set sample time and the selected reading rate.

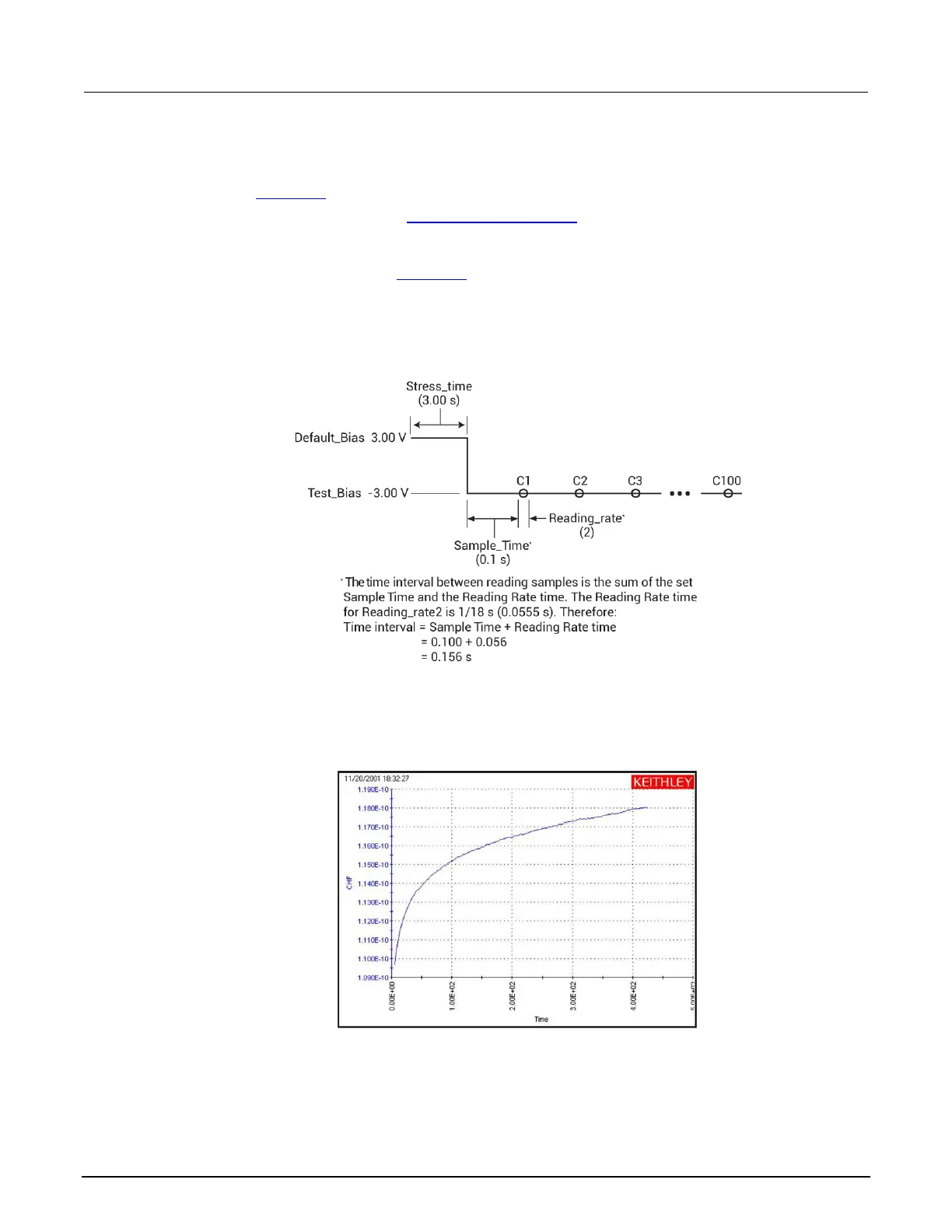

Figure 97: C-t measurements
The graph below shows for this test plots capacitance versus time.
Figure 98: CtSweep graph
