Section 2: Using switch matrices Model 4200A-SCS Prober and External Instrument Control
2-6 4200A-913-01 Rev. A December 2020
In the following figure, the C-V Analyzer signal paths (on page 2-20) for the Keysight Model 4980A
and Keysight Model 8110A pulse generator signal path (on page 2-23) show how signals are routed
through 7174A matrix switches to a DUT.

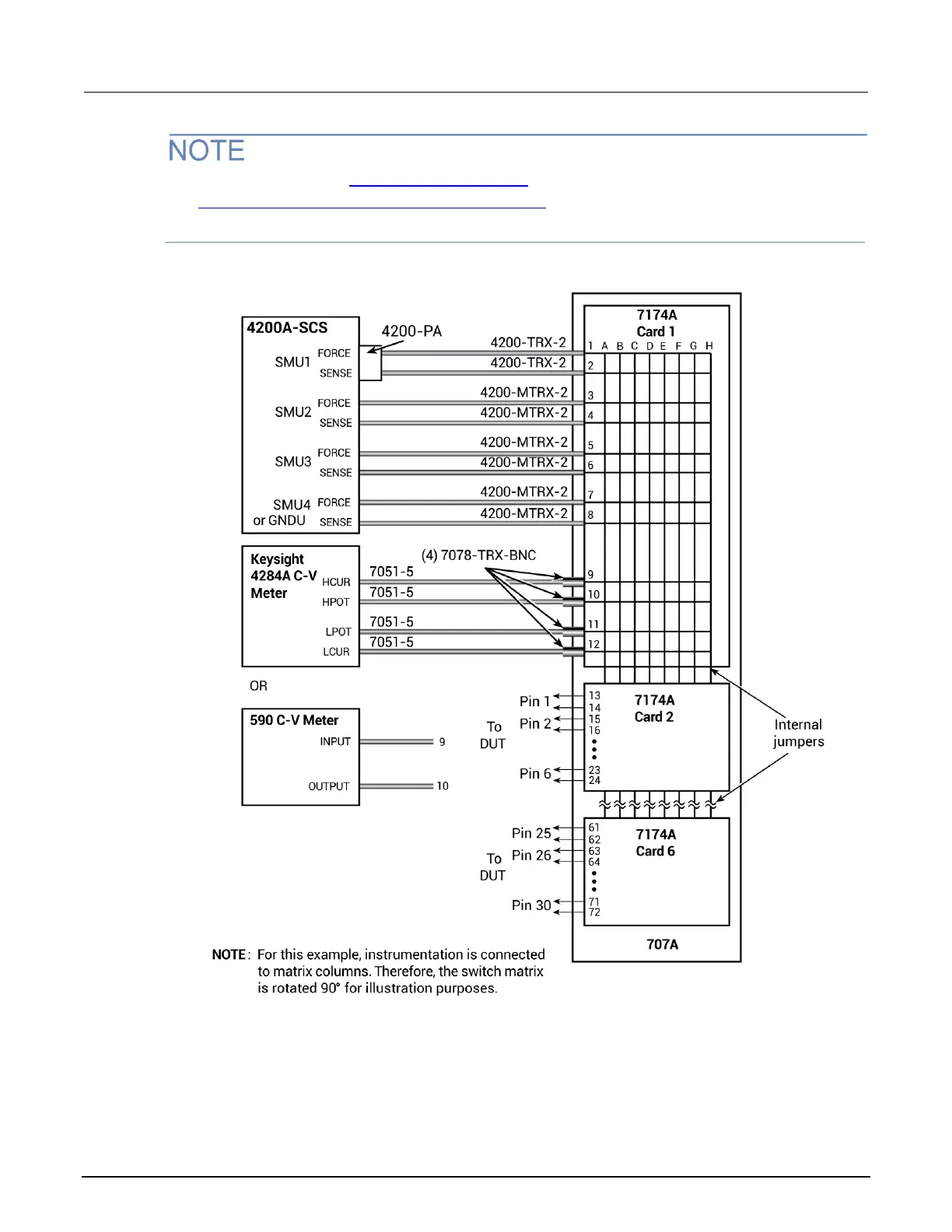

Figure 5: Remote sense test system using 7174A matrix cards
