Model 4200A-SCS Prober and External Instrument Control Section 9: Using a Cascade Microtech PA200 Prober
4200A-913-01 Rev. A December 2020 9-13
4. From the Configure menu, select Edit Map.
5. Enter the wafer geometry values and click Apply.
6. Click OK.

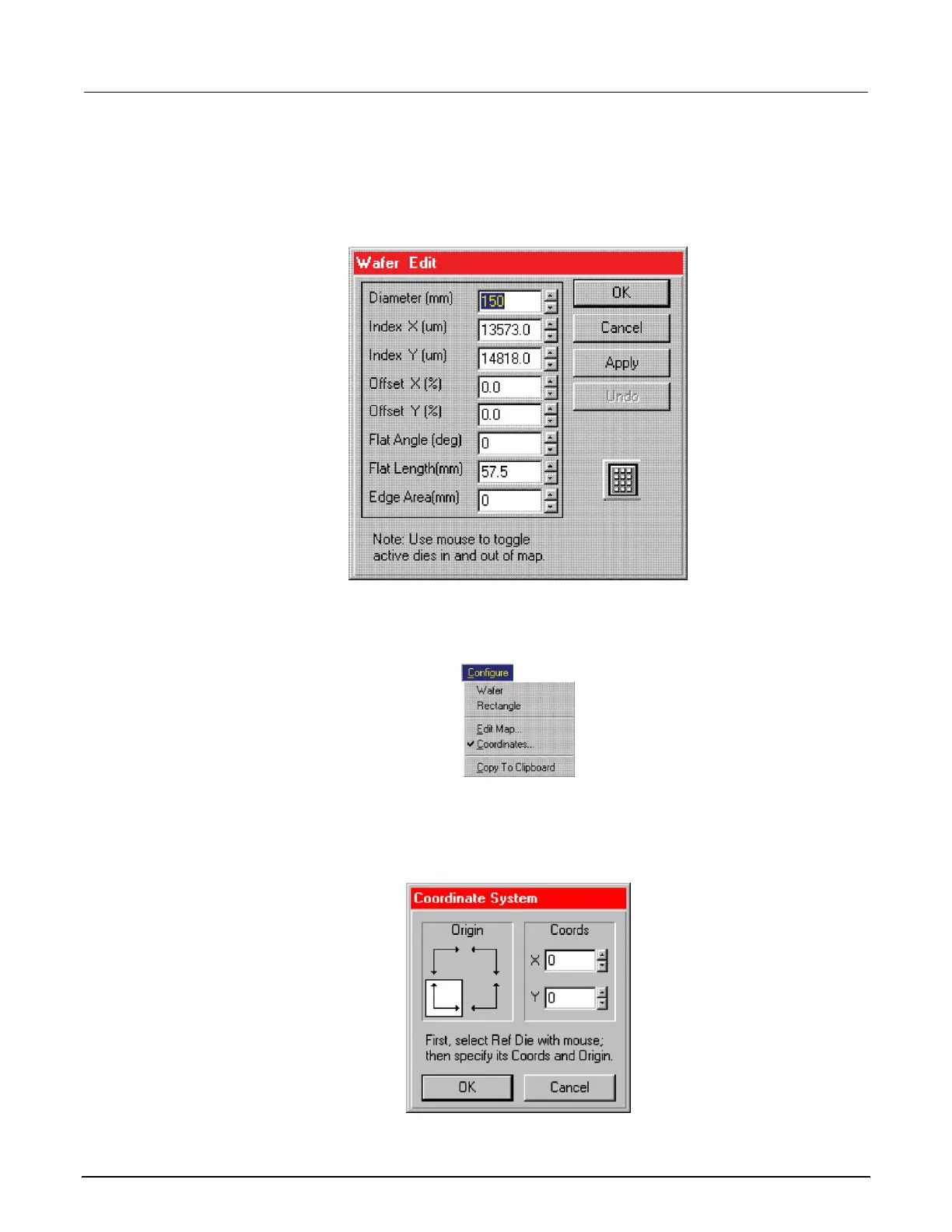

Figure 143: Wafer Edit dialog box
7. From the Configure menu, select Coordinates.
Figure 144: Configure menu
8. From the Coordinate System dialog box, set Origin, as shown. You can set any initial X and Y
coordinates.
Figure 145: Coordinate System dialog box
