Model 4200A-SCS Prober and External Instrument Control Section 9: Using a Cascade Microtech PA200 Prober
4200A-913-01 Rev. A December 2020 9-21
3. Click Set-Z. The Set Chuck Heights dialog box is displayed.

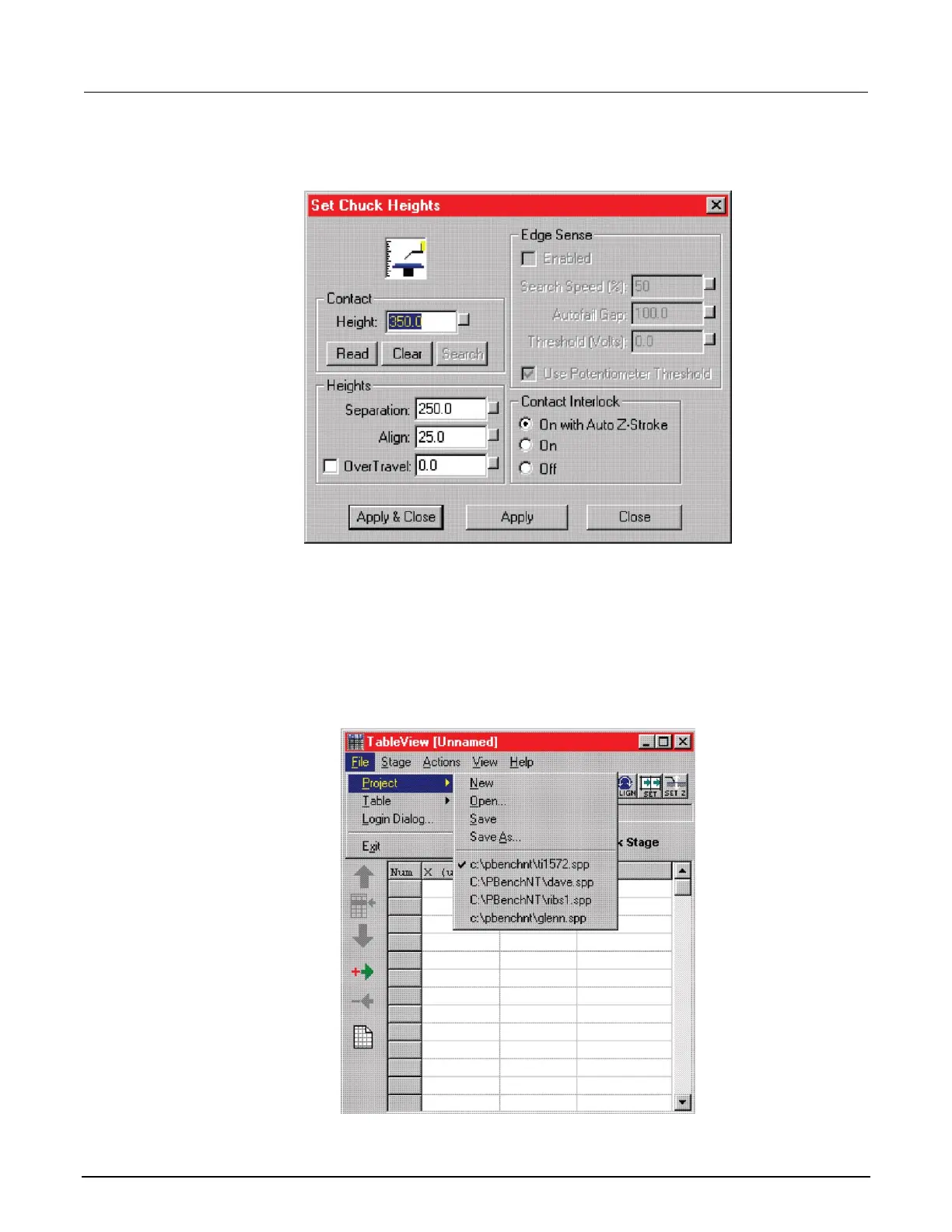

Figure 158: Set chuck heights
4. Click Read. The contact height value changes to the present height.
5. Click Apply.
6. Click Close.
7. Select File > Project > Save to save the Chuck Navigator settings.
Figure 159: PA200 Chuck Navigator: Save
