Section 2: Using switch matrices Model 4200A-SCS Prober and External Instrument Control
2-12 4200A-913-01 Rev. A December 2020

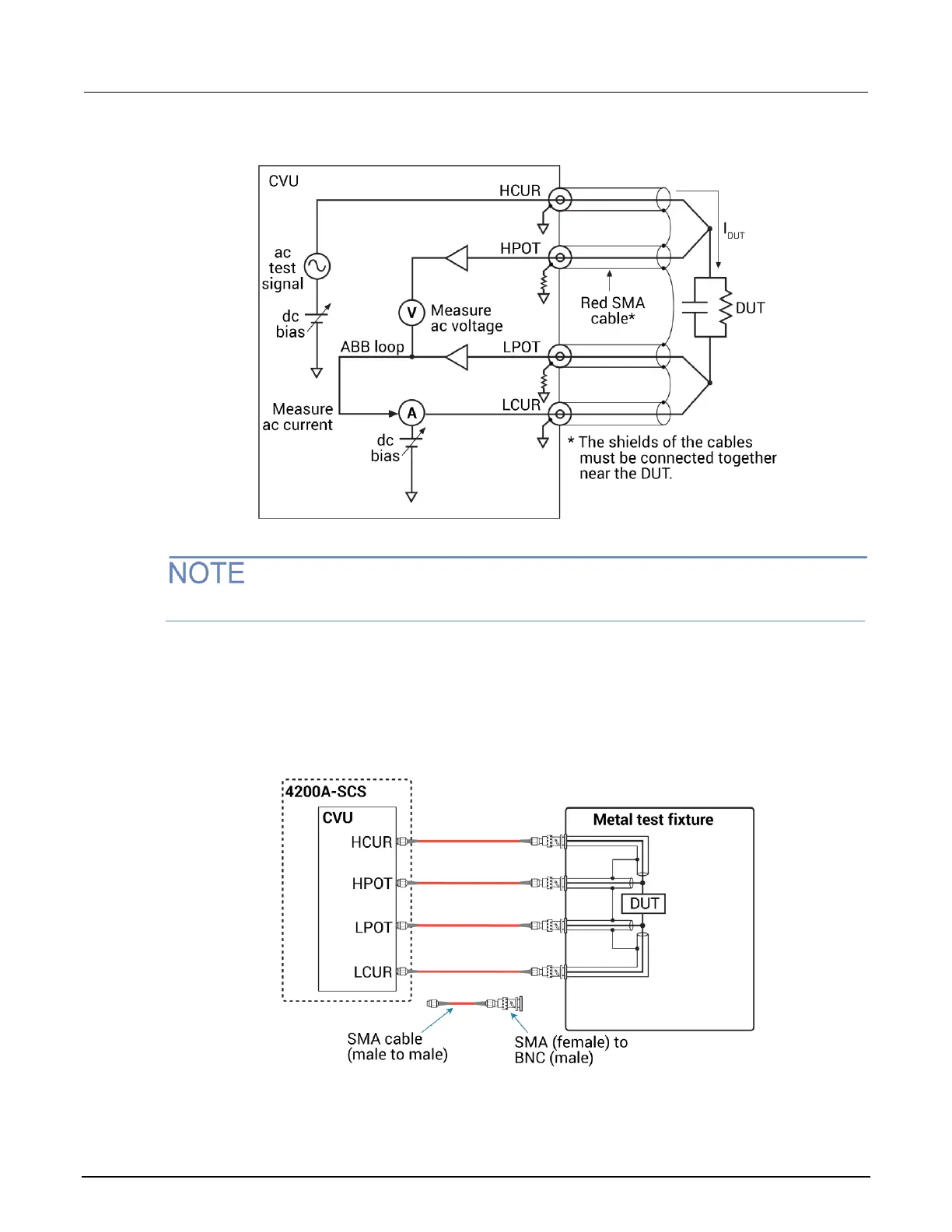

Figure 10: Measurement circuit (simplified)
You can swap the HCUR and HPOT and LCUR and LPOT terminal functionality in Clarius.
The following figure shows typical connections to a DUT installed in a test fixture that has BNC
bulkhead connectors. Use a conductive test fixture with the bulkhead connectors mounted directly to
the test fixture. Do not use insulators between the connectors and test fixture. The cables and
adapters shown are the ones supplied with the 4210-CVU or 4215-CVU.
Figure 11: Typical CVU connections to a DUT in a test fixture
