Model 4200A-SCS Prober and External Instrument Control Section 2: Using switch matrices
4200A-913-01 Rev. A December 2020 2-15

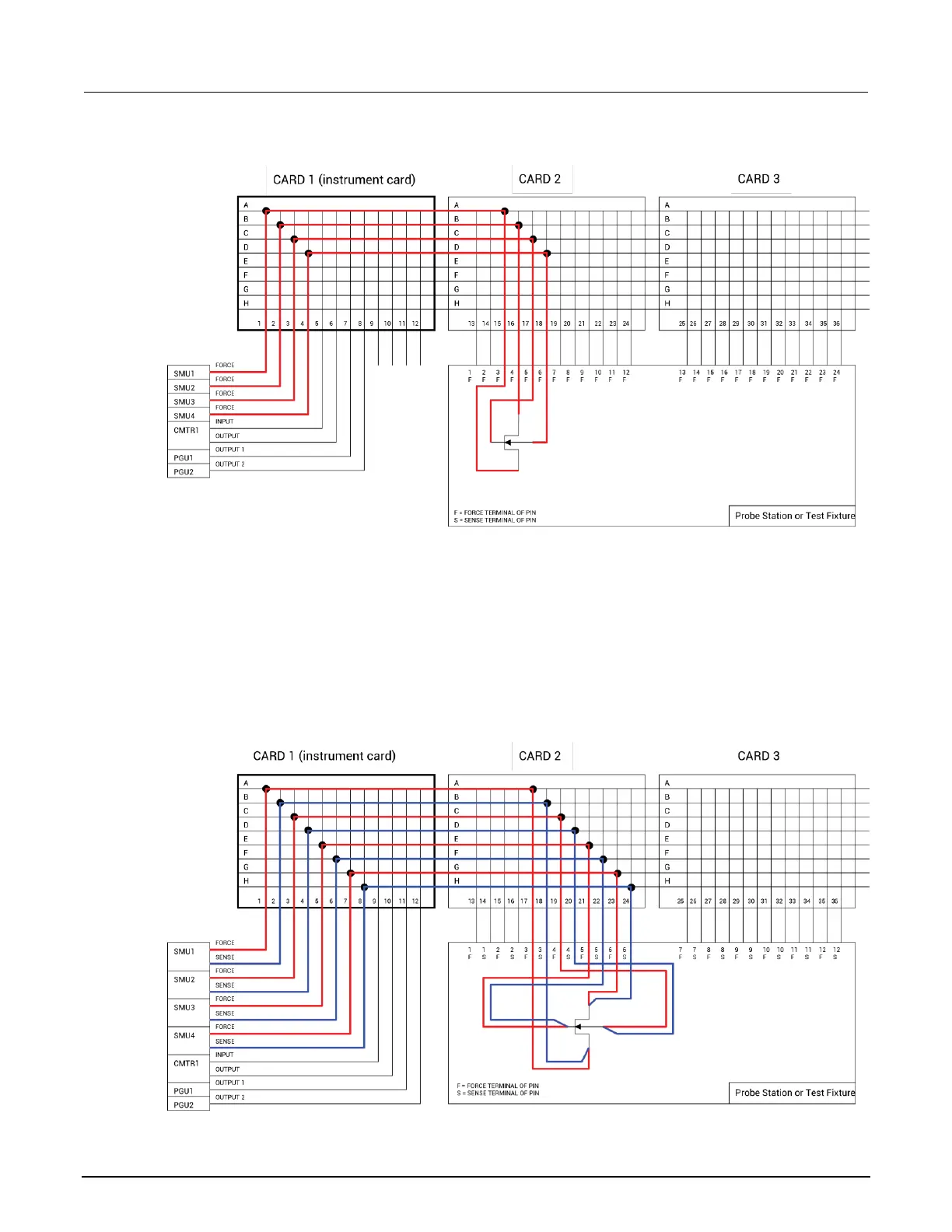

Figure 13: Instrument Card, Local Sense Connection Scheme example
Instrument card scheme for remote sense
Use remote sense to eliminate the effects of measurement pathway resistance. The following figure
illustrates the use of remote sense in an instrument card configuration. Note that remote sense
requires twice as many measurement pathways. The FORCE pathways (in red) are the
current-carrying pathways, and the SENSE pathways (in blue) are the measurement pathways.
Figure 14: Instrument Card, Remote Sense Connection Scheme example
