X35 Console Monitoring & Managing Files
10.4

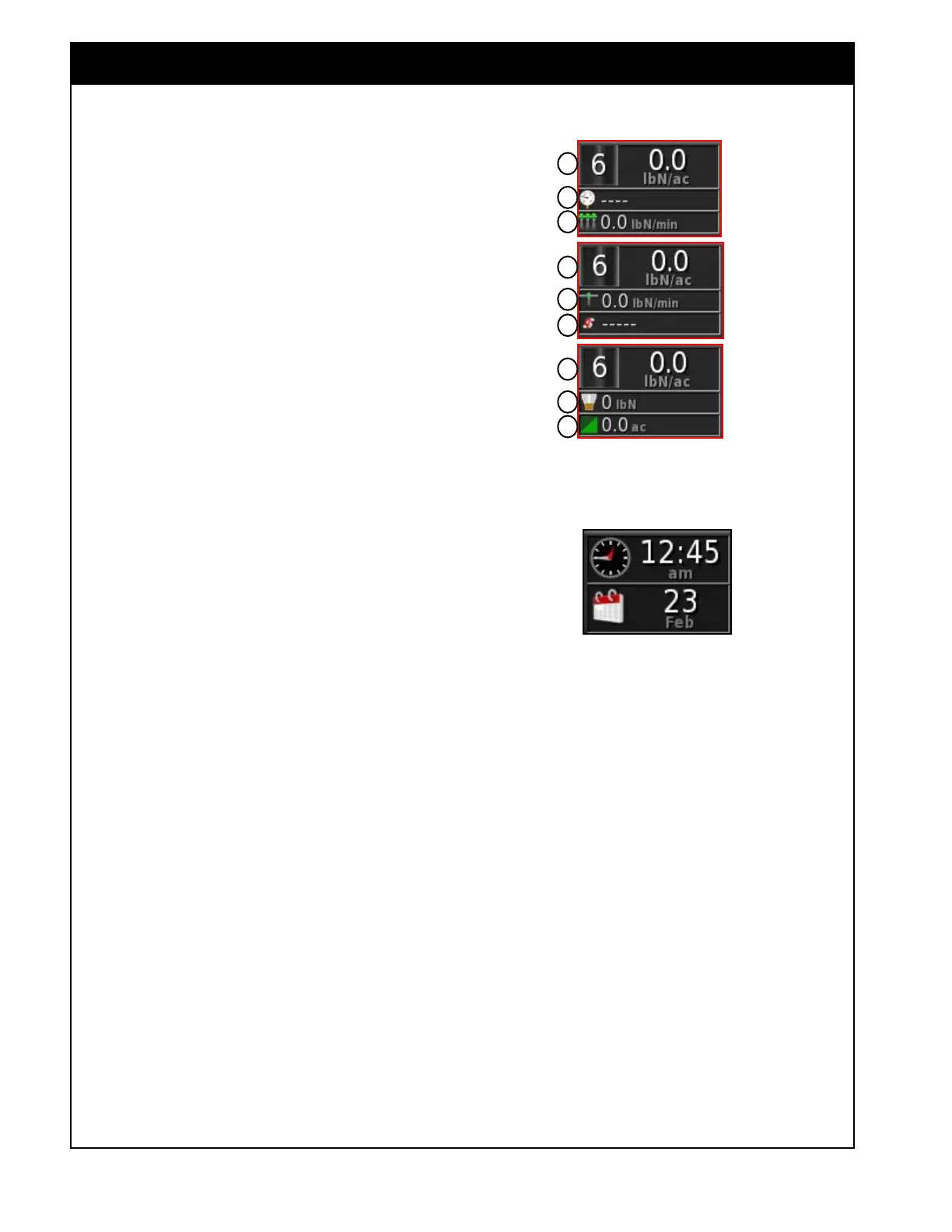

Figure 10.5 - Clock Panel
Figure 10.4 - Liquid/NH3 Tank Panel Configuration
1
2
3
4
5
1
1
6
7
3. Tank (Liquid/NH3) (D) - displays data related
to the Liquid/NH3 tank, the number of the
tank shown on the icon.
a. This panel can be customized to display up
to three parameters, refer to
Figure 10.4.
Select from:
- Application Rate (1)
- Pressure (2)
- Boom Flow (3)
- Nozzle Flow (4)
- Pump Speed (5)
- Tank Volume Remaining (6)
- Area Remaining (7)
Note
For detailed information about granular/liquid/NH3
tank parameters refer to Section 2.6.3.1 - Tank
Parameters.
The date and time can be displayed on the
Dashboard by selecting Clock from the Customize
Dashboard menu, refer to Figure 10.5.
4. Clock - displays the time and date in the
format that was selected when setting up the
user preferences (refer to Section 3.2.1.2 -
Time/Date).
a. Can be customized to display either time,
date, or both.
To display GPS information select GPS from the
Customize Dashboard menu, refer to Figure 10.6.
