X35 Console Monitoring & Managing Files
10.5
5. GPS (E) - displays information related to the
GPS.
a. Can be customized to display up to three
parameters:
b. Number of Satellites - indicates system
readiness and the number of satellite
signals available.
i. The satellite symbol
will
be displayed in different colours
depending on the reported accuracy
of the GPS:
green - good accuracy
yellow - average accuracy
red - poor accuracy
grey - no signal
c. HMRS - displays correction quality and
position accuracy.
i. The correction symbol
can
display different colours:
grey - if correction source is set to
Autonomous.
green - if the correction source
received and accurate.
yellow - if correction source
received, but not accurate enough
engage steering.
red - if the correction source is
different from the one that was
selected during setup.

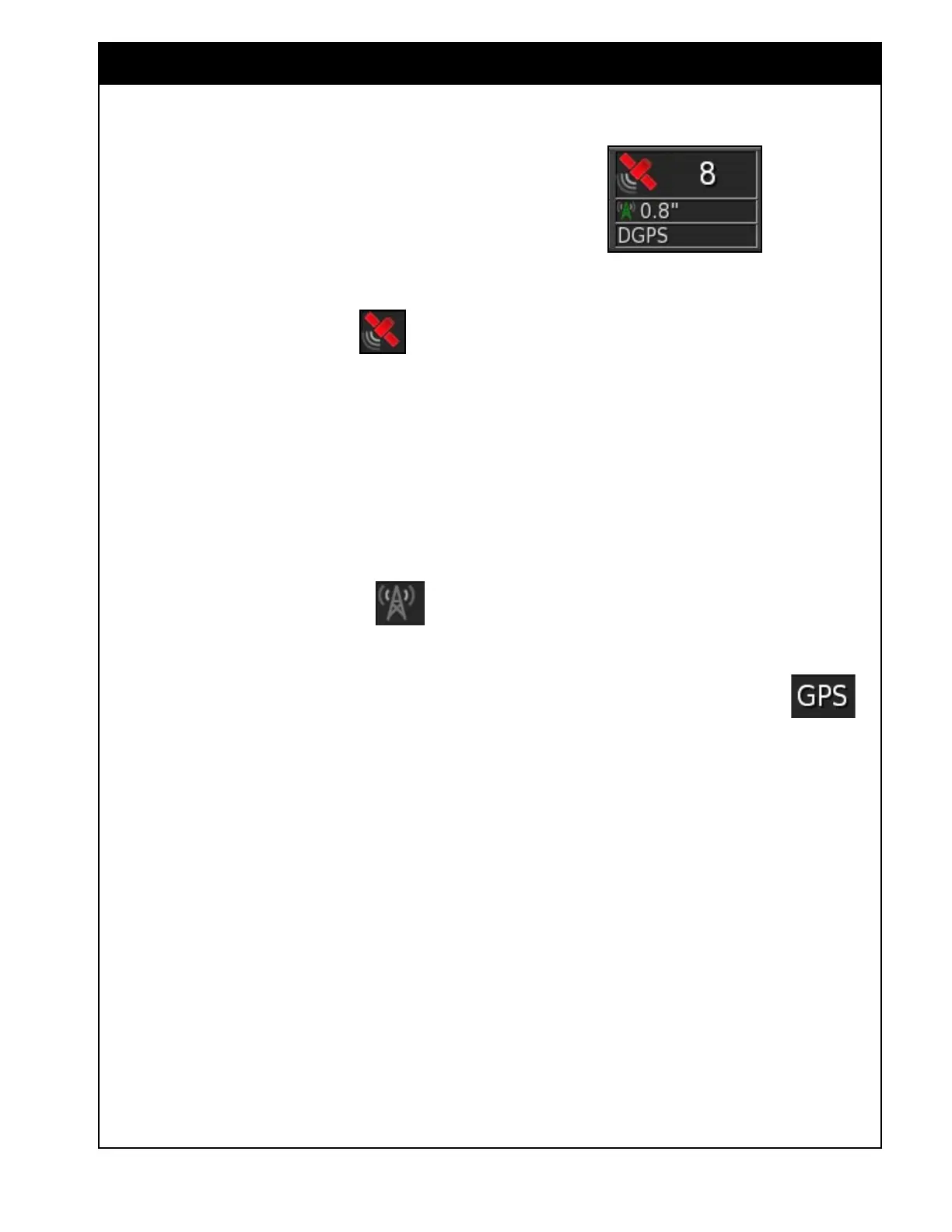

Figure 10.6 - GPS Panel
Note
If the GPS receiver type is set as Other, the
differential fix indicator will be:
- Red, if receiving autonomous
- Green, if it has differential or RTK fix.
d. Differential correction - displays the
correction source in use - DGPS, PPS,
RTK, Omnistar etc.
i. If the correction source is set to
Autonomous during setup,
will be displayed on the panel.
