X35 Console Overview
2.15
D Area Counters panel - for detailed
information refer to Section 2.6.5 - Area
Counters Panel.
E Fan Status panel toggle - this icon works like
a toggle switch, making the Fan Status panel
(F) visible or not.
F Fan Status panel - displays fan(s) speed for
enabled fan(s), for a disabled fan it will show
"----" in place of a fan speed.
G Monitoring panel - includes multiple
windows to display and control the section
state for the configured booms as well as the
blockage monitoring state and the drill control
parameters (if enabled).
i. The title bar lists which window is
displayed and how many windows are
available along with the slider bar on the
left. To switch windows touch in the panel
and slide up or down.
ii. If the unit is configured with multiple
booms, the section state window will list
which one is displayed and they can be
toggled by touching on the boom and
sliding up or down depending on the
position of the other boom.
Note
To slide to the next window when the section state
window is displayed, touch on the very top or very
bottom of the window and slide up or down.
iii. To expand the monitoring panel touch
on the title bar, then it can be scrolled
over to view the fan panel by touching
on the window and sliding left and right.
Touch the title bar again to minimize the
monitoring panel.
H Drill Fold panel - functions to control the
3420 drill only. Refer to
3420 Operator's
Manual.

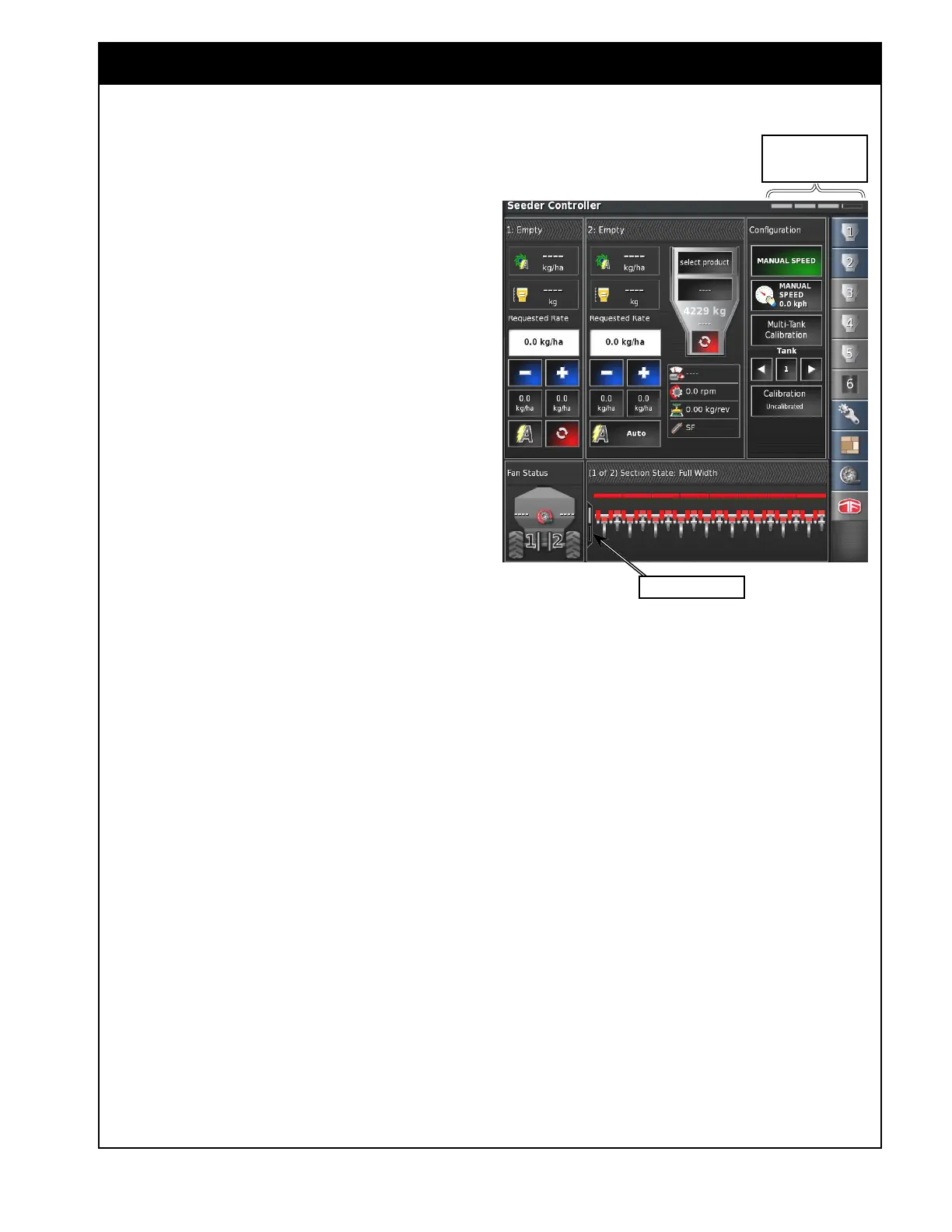

Figure 2.22 - Section State Panel
Viewing are position
status bar
Slider Status Bar
To Next Page
