Technical Data
Issue 5 - 04/01 A1-5

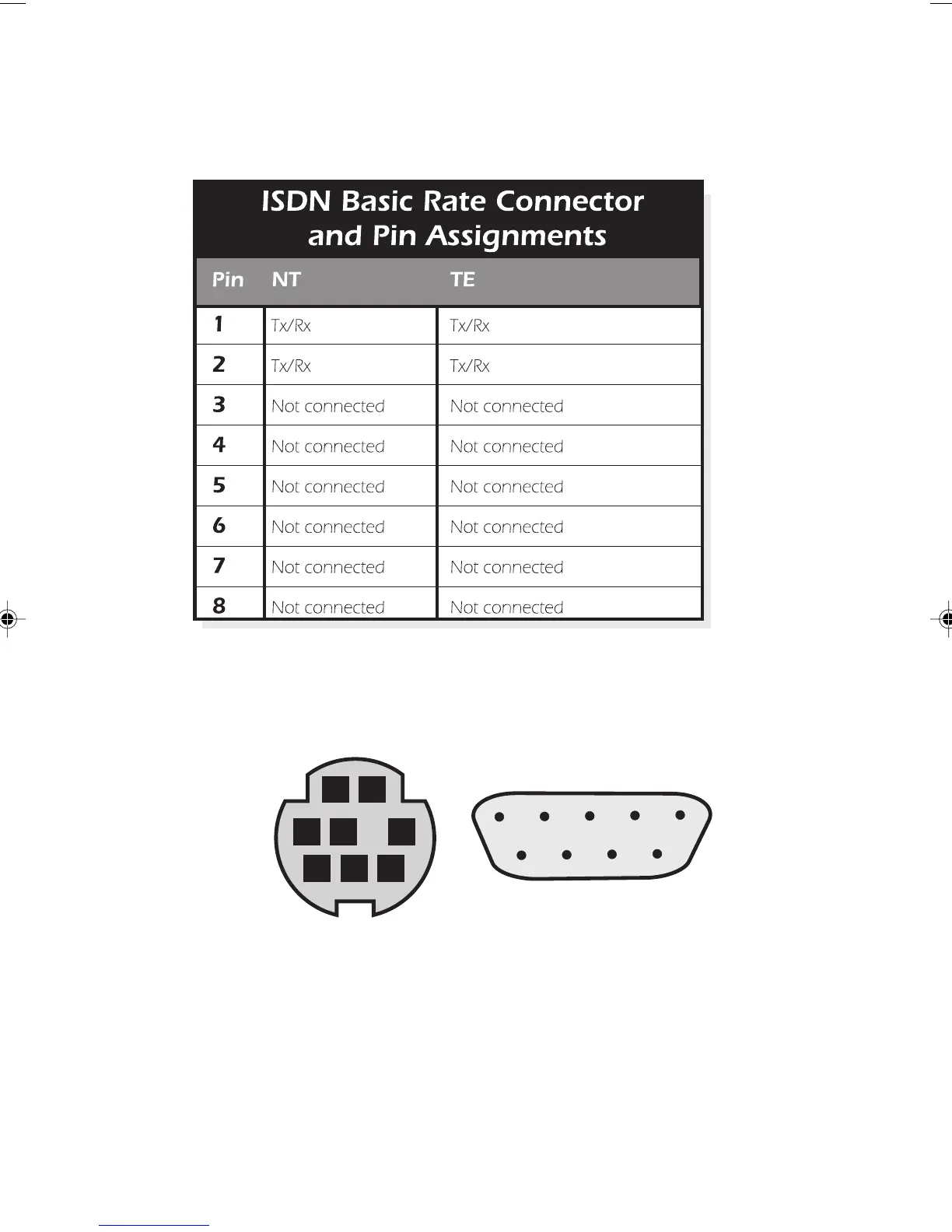

U connecting cable
8 pin mini DIN cable:
Viewed from the wire direction
2
2
3
3
4
4
7
7
1
1
5
5
8
89
6
6
8 pin mini din socket to 9 way D female
pin 1 connected to pins 1, 6 and 8
pin 2 connected to pin 7
pin 3 (Tx) connected to pin 2 (Rx)
pin 4 connected to pin 5
pin 5 (Rx) connected to pin 3 (Tx)
