Getting Started
Issue 5 - 04/01 2-7

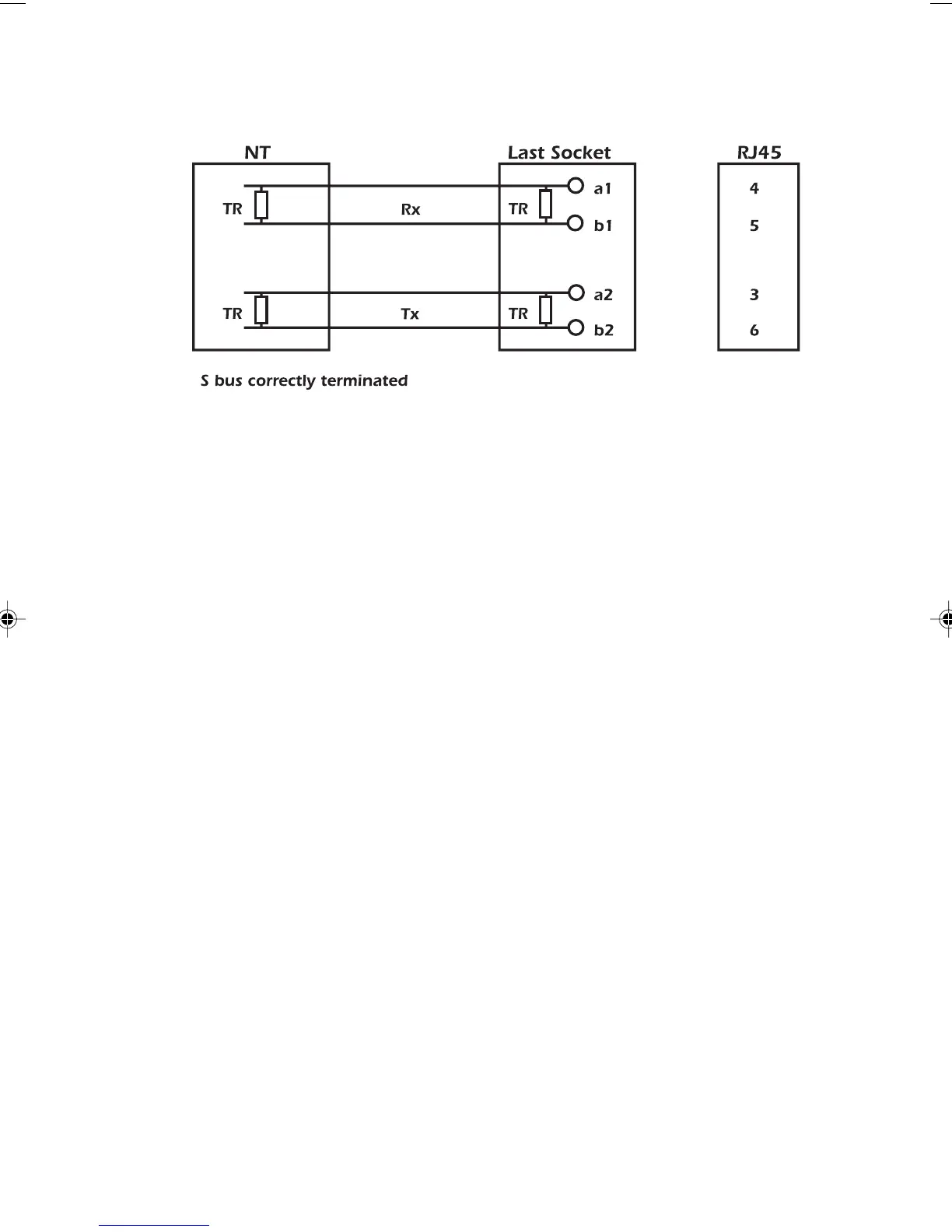

If there are no resistors in the wiring the termination can be
achieved with
AuroraPlus. Set the Termination Resistor Switch
as follows.
DOWN Additional termination resistors are connected
on the line.
UP There is no termination by AuroraPlus.
If the TERM switch is depressed while in POTS Check mode
the unit draws analogue dial-tone.
For use of this function, refer to the section titled POTS
Check Switch earlier in this chapter.
Interface Switch (Optional)
The Interface Switch is used to select either the ISDN or
Analogue interface.
ISDN Selects ISDN mode.
AuroraPlus may be
connected to the S or U Interface.
ANALOG/ Selects Analogue mode. The two-wire cable
POTS may be connected to the telephone network.
