4 Using 2D Guidance in theField
Working with profiles
Note – Profile Slope memories are only available when Cab Rotation Support or
GNSS Receiver Support is enabled.
Depth memories and Slope memories can be used with Profile guidance. This
allows you to apply a depth and/or slope to a profile.

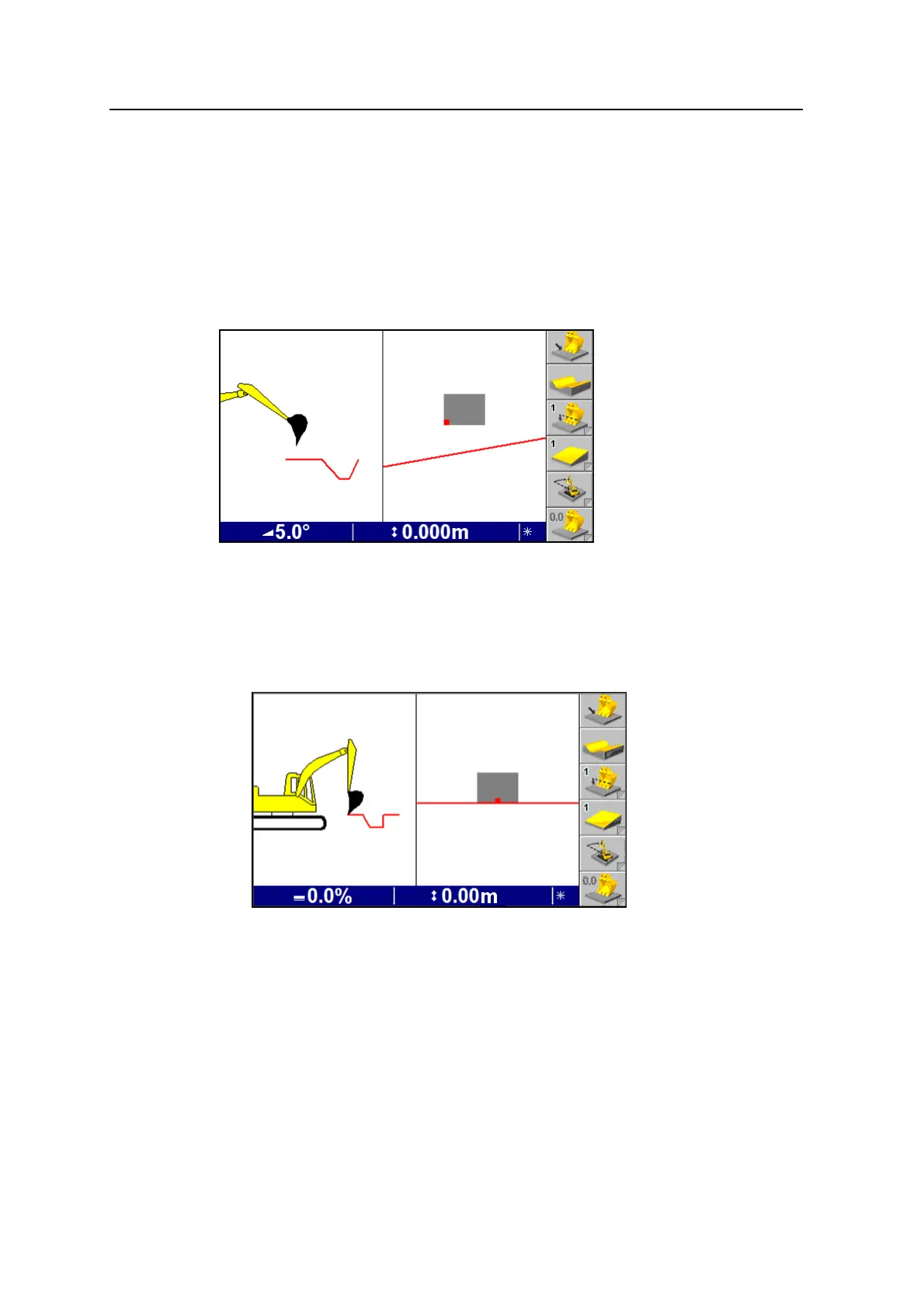

The following example shows a trench profile with a 5° mainfall slope.
For more information, see 4.4.2 Depth and slope models.
When Cab Rotation Support or GNSS Receiver Support is enabled, the following
additional ways of working with profiles are available:
l Square (perpendicular) to the benched alignment, for example working square
to a trench.
