2.2 Power Connection
2.2.1 Power: Console Server Management Switch
TheB096-048/16ConsoleServerManagementSwitchhasdualuniversalACpowersupplieswithautofailoverbuiltin.These
powersupplieseachacceptACinputvoltagebetween100and240VACwithafrequencyof50or60Hzandthetotalpower
consumptionperConsoleServerislessthan30W.TwoIECACpowersocketsarelocatedattherearofthemetalcase,and
theseIECpowerinletsuseconventionalIECACpowercords.ANorthAmericanpowercordisprovidedbydefault.Powercords
for other regions are available separately from Tripp Lite.
2.2.2 Power: Console Server with PowerAlert

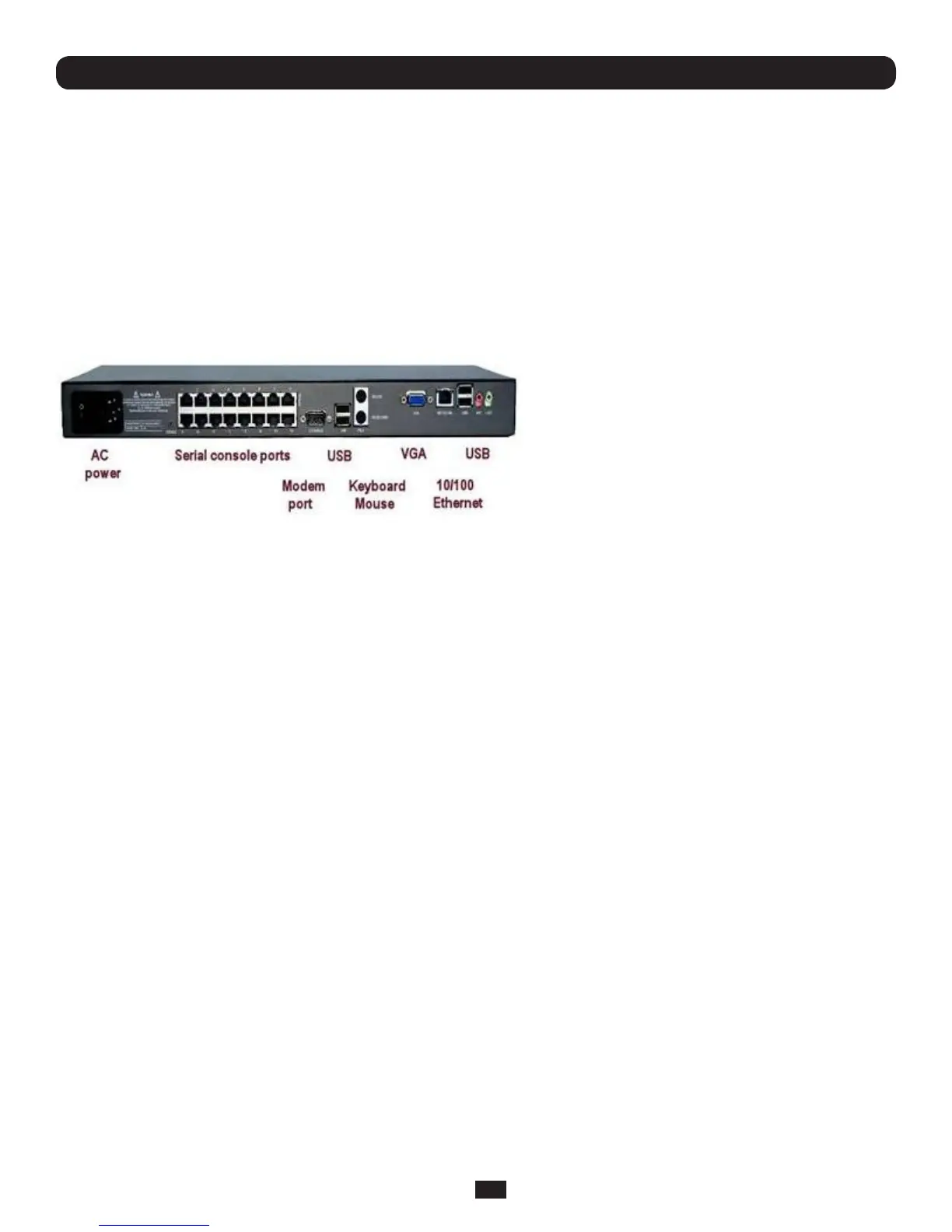

ThestandardB092-016ConsoleServerhasabuilt-inuniversalauto-switchingACpowersupply.ThispowersupplyacceptsAC
inputvoltagebetween100and240VACwithafrequencyof50or60Hzandthepowerconsumptionislessthan40W.
TheACpowersocketislocatedattherearoftheB092-016.ThispowerinletusesaconventionalACpowercord.ANorth
American power cord is provided by default. Power cords for other regions are available separately from Tripp Lite.
2.2.3 Power: Console Server
TheB095-004/003andB094-008-2E-M-FConsoleServerseachhaveanexternalwall-mountpowersupply.Thispower
supplyacceptsACinputvoltagebetween100and240VACwithafrequencyof50or60Hzandthetotalpowerconsumption
perconsoleserverislessthan20W.TheDCpowersocketontheConsoleServerislocatedonthesideofthemetalcase
marked PWR.
2.3 Network Connection
TheRJ4510/100LANportislocatedontherearoftheB092-016ConsoleServer,onthefrontoftheB096-048/016
ConsoleServerManagementSwitchandonthesidepaneloftheB095-004/003andB094-008-2E-M-FConsoleServers.All
physicalconnectionsaremadeusingindustrystandardCat5epatchcables(TrippLiteN001andN002seriescables).Ensure
youonlyconnecttheLANporttoanEthernetnetworkthatsupports10Base-T/100Base-T.Fortheinitialcongurationofthe
ConsoleServeryoumustconnectacomputertotheConsoleServer’sprincipalnetworkport.
