243

Chapter 16: Thin Client

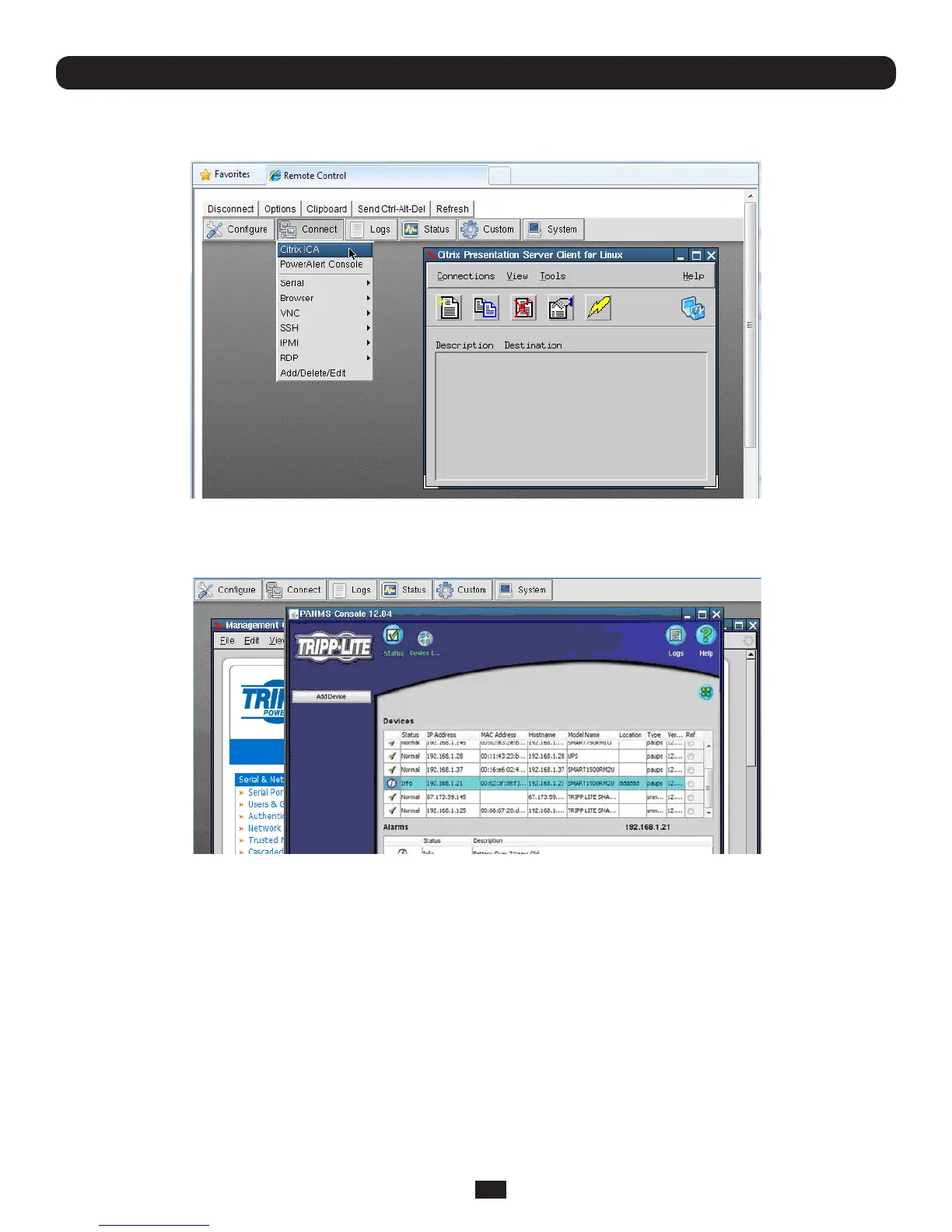

16.1.7 Connect: Citrix ICA

• SelectConnect: Citrix ICA on the control panel and click on the Citrix server to be accessed

16.1.8 Connect: PowerAlert

• SelectConnect: PowerAlert on the control panel. The PowerAlert software will be launched.
