Chapter 3: Initial System Conﬁguration

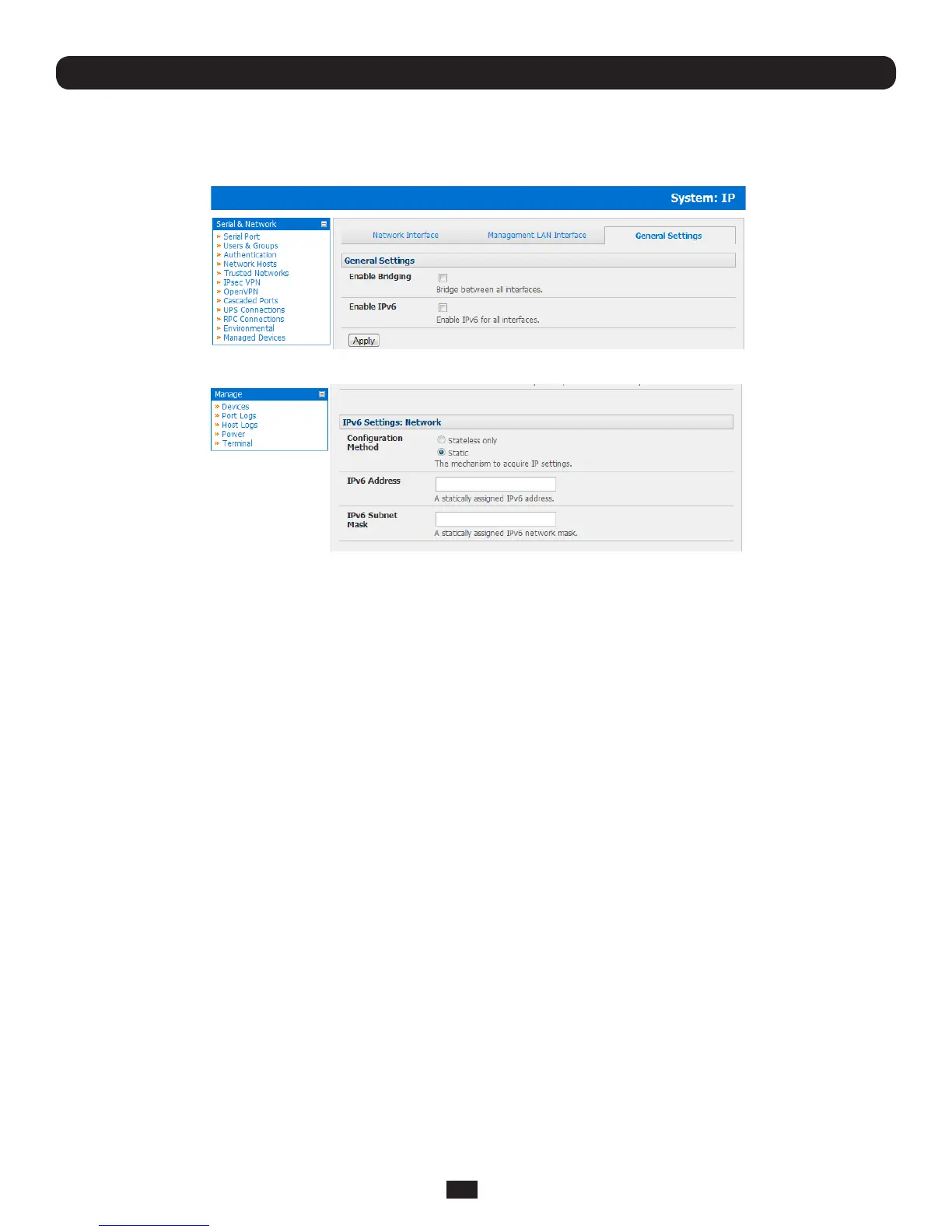

3.3.1 IPv6 conﬁguration

Bydefault,theConsoleServerEthernetinterfacessupportIPv.However,theycanalsobeconguredforIPv6operation:

• OntheSystem: IP menu select General Settings page and check Enable IPv6

• YouwillthenneedtoconguretheIPv6parametersoneachnetworkinterfacepage
