6.DISCHARGING CONTROL MODE
95
c)

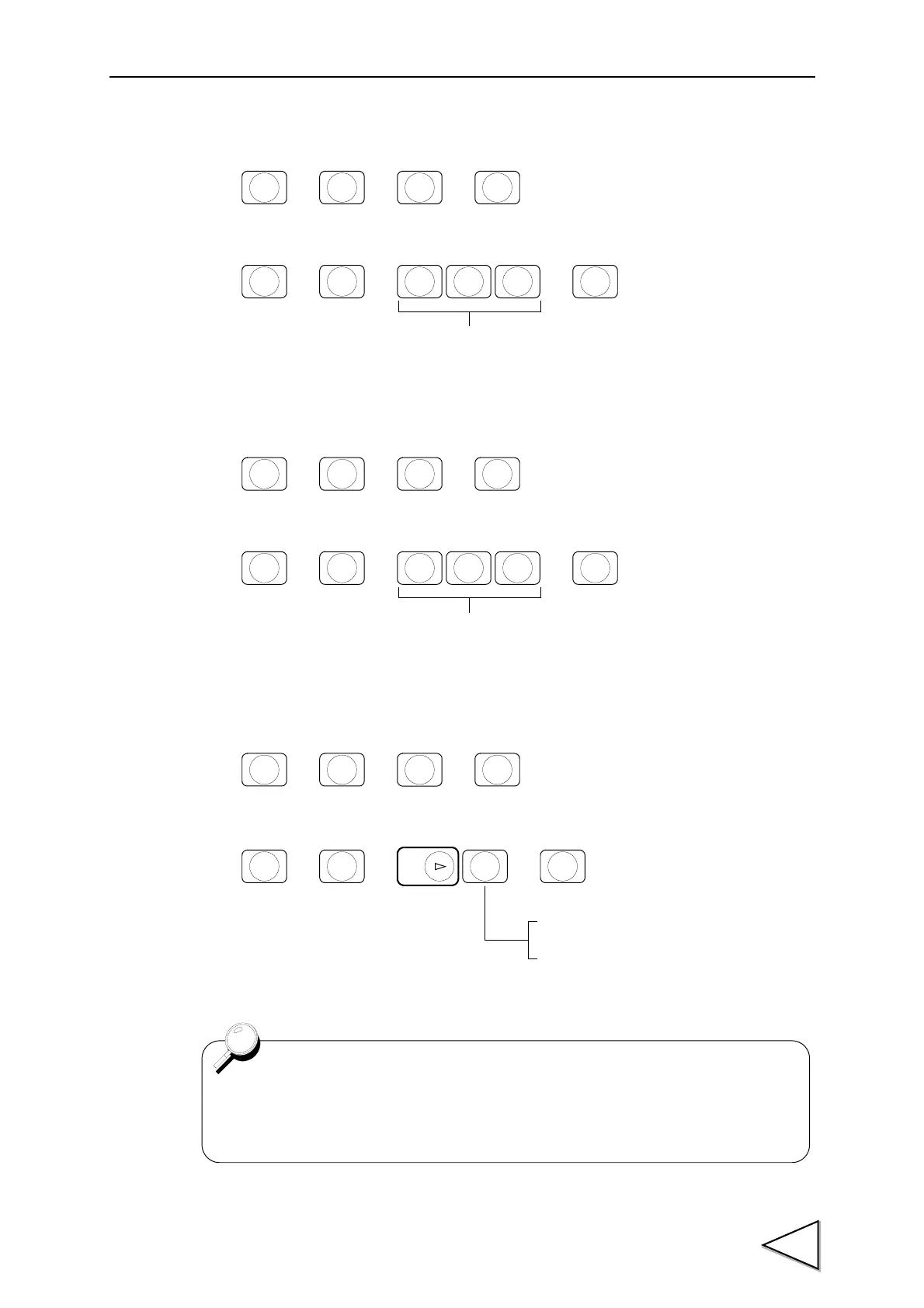

1) Select setting mode 1.
2) Input the Judging Time. (2-Judging Time)
d)
1) Select setting mode 1.
2) Input the Comparison Inhibit Time. (1-Comparison Inhibit Time)
e)
1) Select setting mode 5.
2) Set Output selection 2. (2-Output Selection)
→→→
F
CNG/ENT CNG/ENT
1
UPPER
→→ →
Judging Time (sec.)
(0.00 ~ 9.99)
2
LOWER
CNG/ENT CNG/ENT
→→→
F
CNG/ENT CNG/ENT
1
UPPER
→→ →
Comparison Inhibit Time (sec.)
(0.00 ~ 9.99)
CNG/ENT CNG/ENT
1
UPPER
→→→
F
CNG/ENT CNG/ENT
5
SP2
Output Selection 2 (B10 pin)
1 : Complete output
0 : Go output
→→ →
ZERO
CNG/ENT CNG/ENT
2
LOWER
- Unless the weight value once drops down to 25% or less of the Final after the
complete output, the complete output will not turn on after the next weighing.
- If the Final is set at 0, the complete output may turn on at power-on.
