Unipulse F701-C

10.INTERFACE
144
a) D/A Output Mode
b) D/A Zero Output Weight (Input range / 0 ~ 99999 or Capacity)
c) D/A Full Scale (Input range / 0 ~ 99999 or Capacity)

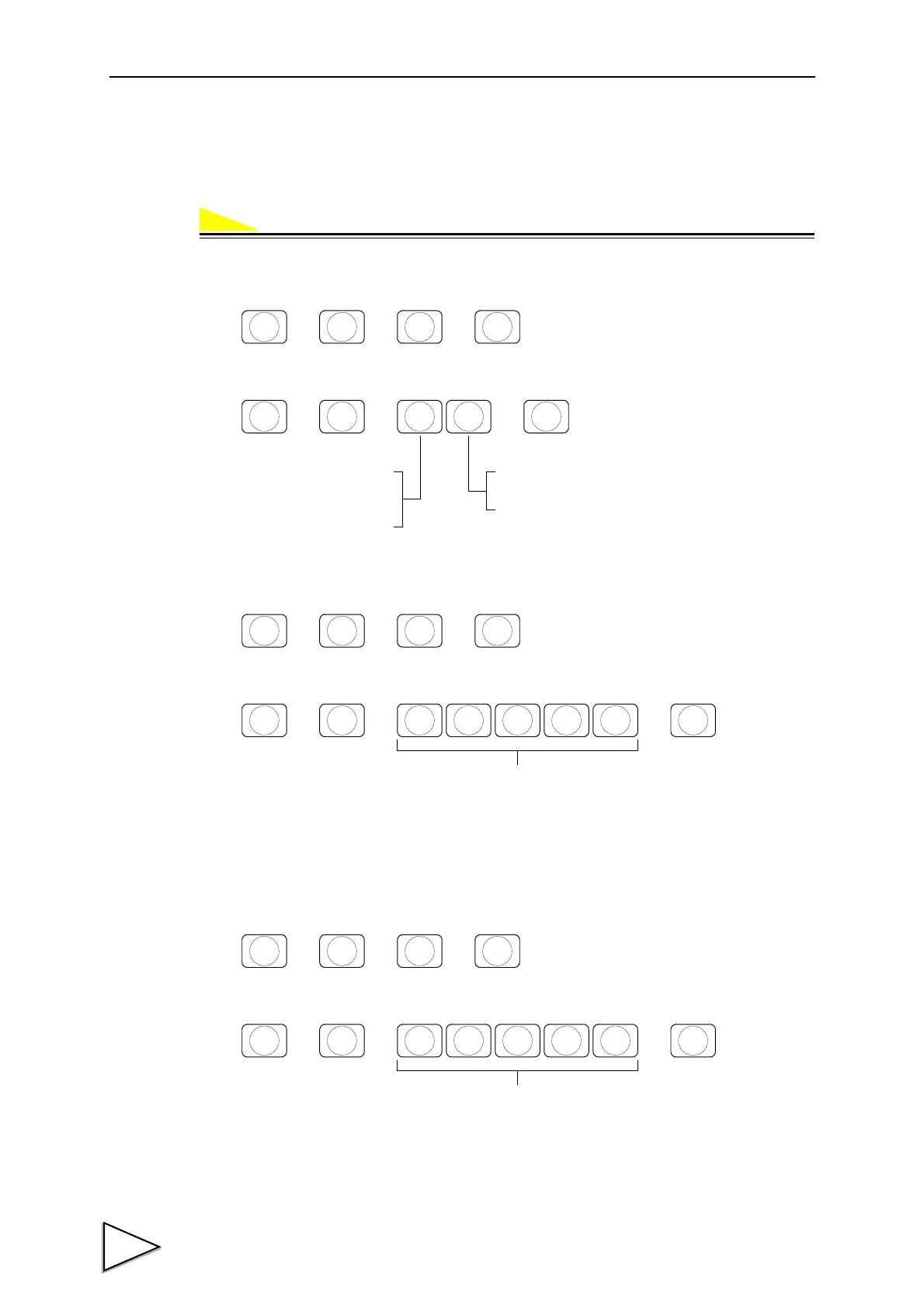

Operation
a)
1) Select setting mode 4.
2) Set Test mode and Output mode. (1-D/A Output Mode)
b)
1) Select setting mode 4.
2) Input the D/A Zero Output Weight. (2-D/A Zero Output Weight)
c)
1) Select setting mode 4.
2) Input the D/A Full Scale. (3-D/A Full Scale)
→→→
F CNG/ENT CNG/ENT
4
SP1
Test mode
2 : 20mA fixed output
1 : 4mA fixed output
0 : Tied to the weight value
Output mode
1 : Net weight
0 : Gross weight
→→ →
1
UPPER
CNG/ENT CNG/ENT
→→→
F
CNG/ENT CNG/ENT
4
SP1
D/A Zero Output Weight
(0 ~ 99999)
Input the weight value to output 4mA.
The default value is “00000”.
→→ →
2
LOWER
CNG/ENT CNG/ENT
→→→
F
CNG/ENT CNG/ENT
4
SP1
D/A Full Scale
(0 ~ 99999)
Input the weight value to output 20mA.
The default value is “10000”.
→→ →
CNG/ENT CNG/ENT
3
NEAR Z .
