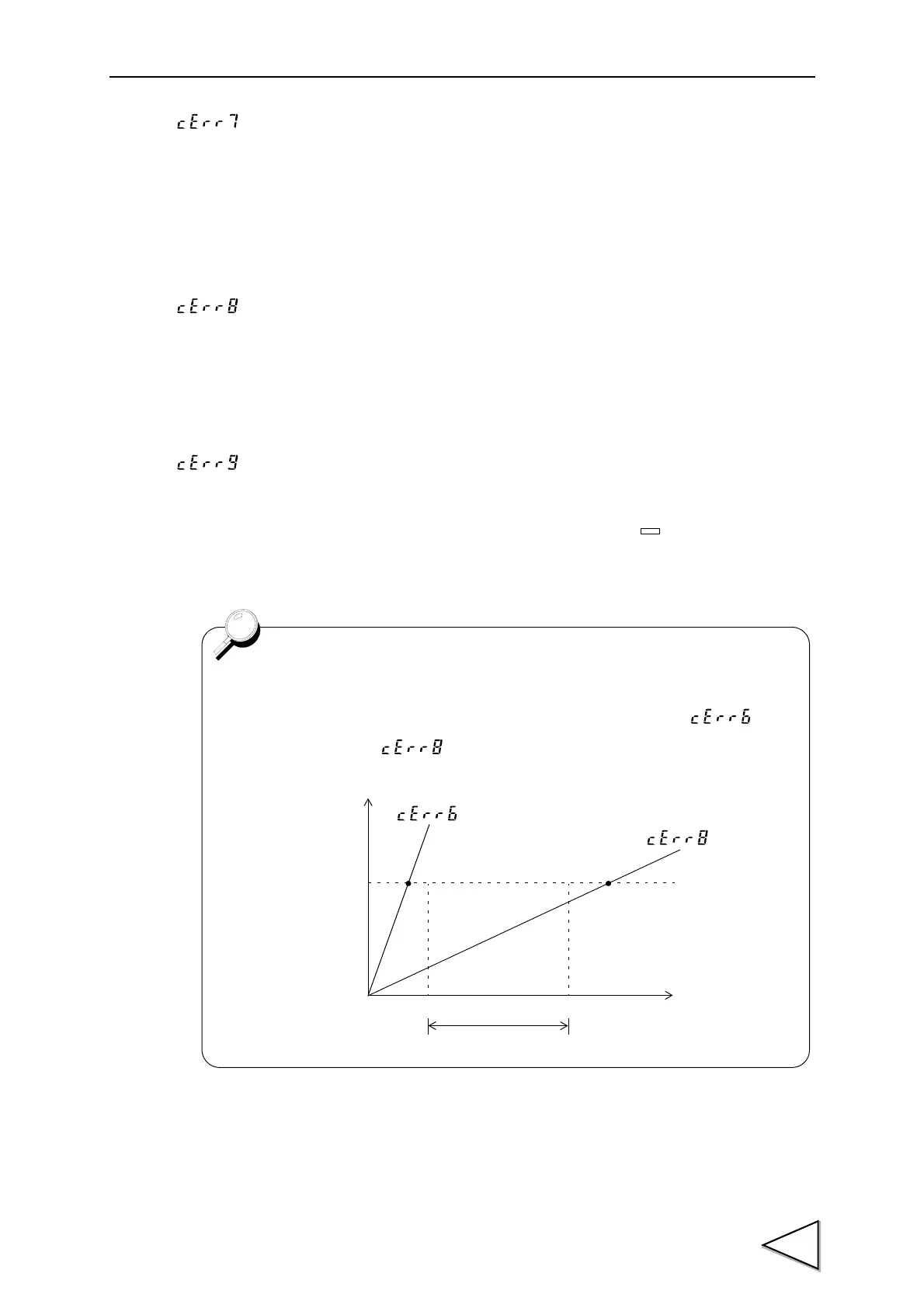

12.TROUBLE SHOOTING
163
(Calibration error)
Load cell output is negative.
Check that load cell is mounted in the correct direction; check that load is being applied to the load
cell in the correct direction; check that the +SIG and -SIG lines are propely connected. Do Span
Calibration again.
(Calibration error)
Load cell output is beyond span adjustment range of the F701-C.
Check how load is applied to load cell; check load cell has sufficient output (mV/V) to reach span
range. Do Span Calibration again.
(Calibration error)
The load is not stable enough for correct Calibration.
Adjust the stable period and stable range of Motion Detection so “ ” display lights during
Calibration. Do Calibration again.
The span adjustable range of the F701-C is 0.3 ~ 3.2 (mV/V).
Since display to the Capacity is guaranteed in Span Calibration, calibration
cannot be performed if the load cell output is under 0.3 (mV/V) ( ) or
exceeds 3.2 (mV/V) ( ) when the Capacity is reached.
Capacity
00.3 3.2
Load
Load cell output
[mV/V]
Span adjustable range
To Next Page
