12.TROUBL
E SHOOTI
NG
165
●

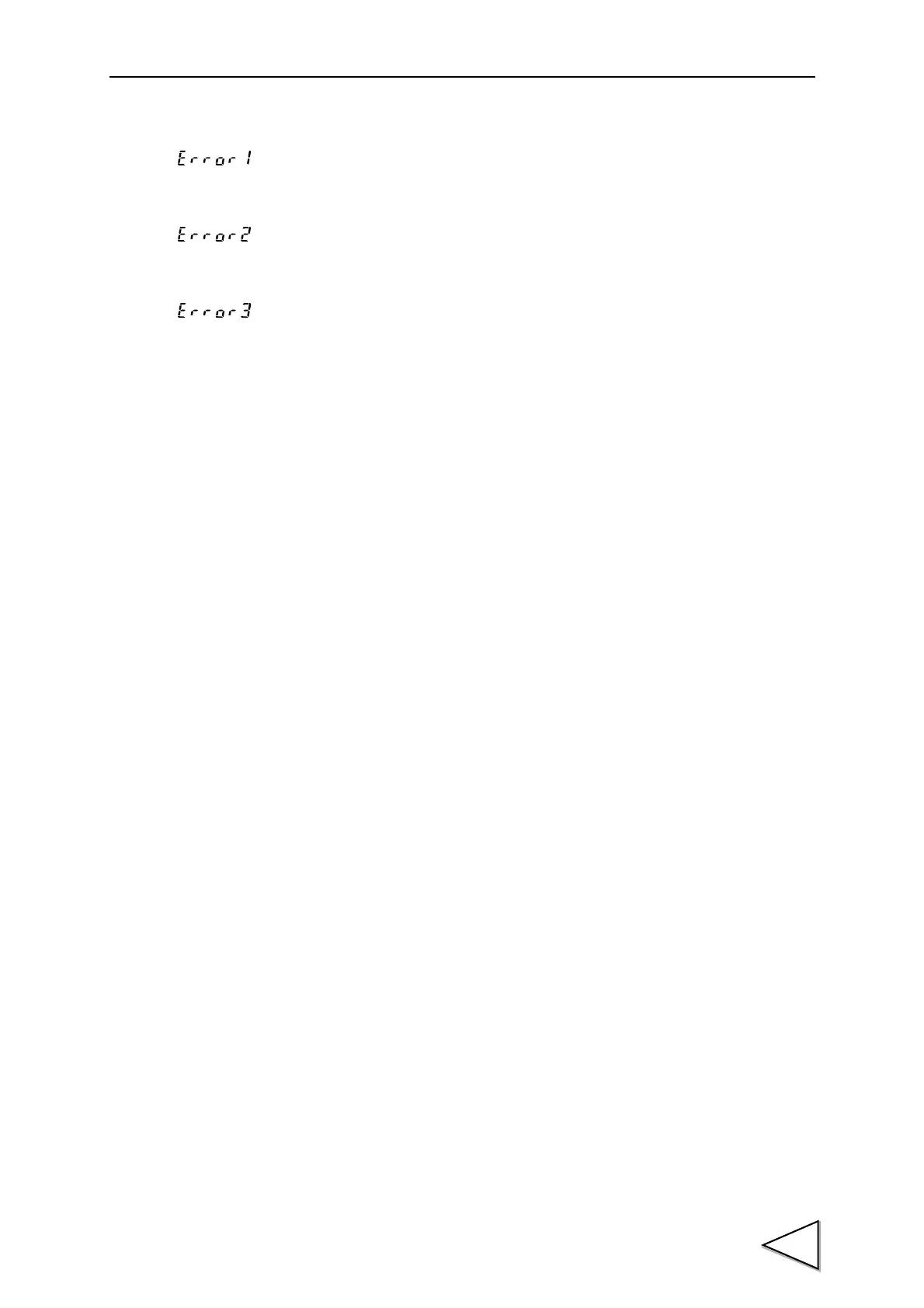

Self-check error display
(RAM check error)
It is displayed if a RAM check
error occurs in
self-checking.
(Checksum error)
It is displayed if a checksum error o
ccurs in self-checking or at power-on.
(NOV RAM check error)
It is displayed if a
NOV RAM check
error occurs in self-checking.
* In the case of self-c
heck error display
, the F701-C is faulty
.
Request repair from your distributor or us.
175
177
Table of Contents
Default Chapter
2
Safety Precautions
2
Table of Contents
6
1 ．Appearance Description
12
Front Panel
12
Status Display
14
Function Keys
15
Rear Panel
17
2 ．Connection
19
Load Cell Connection
19
6-Wire Connection
21
Connecting Load Cells in Parallel
22
Sensor Cable
22
Connection of the Power Input Terminals
23
Connection of the Guard Ground
23
SI/F Connection
24
Connection of the Control Connector
25
Control Connector-Pin Assignment
25
How to Assemble the Connector
26
Equivalent Circuit (Input)
27
Equivalent Circuit (Output)
27
3 ．Methods of Setting
28
Setting Procedure
28
Method of Selecting a Setting Mode
28
Method of Entering a Setting Value
30
Setting Mode
34
Setting Mode 0
35
Setting Mode 1
37
Setting Mode 2
39
Setting Mode 3
42
Setting Mode 4
44
Setting Mode 5
47
Setting Mode 8
49
4 ．Calibration
52
Span Calibration
52
Span Calibration Procedure
53
Secondary Calibration Procedure (Equivalent Calibration)
54
Preparation for Calibration
56
LOCK Release
56
Unit
57
Decimal Place
57
Capacity
58
Minimum Scale Division
58
Balance Weight Value
59
Gravitational Acceleration
59
1/4 Scale Division
61
Zero Calibration
62
Span Calibration
64
Secondary Calibration (Equivalent Calibration)
65
5 ． Function Settings
66
Display Frequency
66
Subdisplay Selection
67
Digital Filter
67
Analog Filter
68
Filter in Stable Condition
68
Motion Detection (MD)
69
Zero Tracking (ZT)
71
Digital Zero (DZ)
72
Digital Zero Clear
73
Zero Regulation Value
73
One-Touch Tare Subtraction
74
One-Touch Tare Subtraction Reset
75
Digital Tare Subtraction
76
Restriction of the Tare Subtraction Function
77
Switching Gross Weight/Net Weight Display
78
Reversing Symbol at Discharging Control
79
Invalidation of Function Keys
79
6 ．Discharging Control Mode
80
Feeding Weighing and Discharging Weighing
80
Feeding Weighing
80
Discharging Weighing
83
Discharging Mode
86
Simple Comparison Control and Sequence Control
87
Simple Comparison
87
Sequential Control
88
Sequence Mode
93
Auto Free Fall Compensation Regulation
94
Auto Free Fall Compensation ON/OFF
94
Average Count of Auto Free Fall Compensation
94
Auto Free Fall Compensation Coefficient
94
Final / Set Point 2 / Set Point 1 / Compensation / over / under
97
Negative Compensation
100
Near Zero / Upper Limit / Lower Limit
101
Upper/Lower Limit Comparison / Upper/Lower Limit Comparison Mode / Near Zero Comparison / Final and Comparison / Over/Under Comparison Mode
102
Complete Signal Output Mode / Complete Output Time / Judging Time / Comparison Inhibit Time / Output Selection 2
104
Judging Times / AZ Times / at Start Near Zero Confirmation / at Start Weight Value Confirmation / Adjust Feeding / Adjust Feeding Time
107
Net over / Gross over
111
Weight Error / Sequence Error
112
7 ． Statistical and Accumulation Function Setting and Operation
113
Data Display
114
Accumulation Command
114
Accumulation Clear
116
Auto Accumulation Command
118
8 ．System Mode
120
LOCK (Soft)
120
Password
120
Self-Check and Memory Clear
121
9 ．External Input/Output Signals
122
(Control Connector)
122
Control Connector-Pin Assignment
122
Equivalent Circuit (Input)
123
Equivalent Circuit (Output)
123
External Input Signal
124
Gross/Net Switching (G/N) <Edge Input> <Level Input
124
Digital Zero (D/Z ON) <Edge Input
124
Tare Subtraction (TARE ON) <Edge Input
125
Tare Subtraction Reset (TARE OFF) <Edge Input
125
Hold (HOLD) <Level Input
125
Judge <Level Input
126
Feed / Discharge <Level Input
126
Input Signals Used in Sequence Mode
126
Accumulation Command <Edge Input
127
Accumulation Clear <Edge Input
127
Input Selection
128
External Output Signal
129
Near Zero
129
Lower Limit, Upper Limit
129
Stable
129
Weight Error
129
Sequence Error
130
Run
130
Accumulation Error
130
Sp1, Sp2, Sp3
131
Under, Go, over
132
Complete
133
Output Selection
134
10 ．Interface
135
2-Wire Serial Interface (SI/F)
135
Connection
135
Auto Print Command
135
RS-232C Interface
136
Communication Specifications
136
Cable
136
Setting Values for RS-232C
137
Communication Mode
137
Transmission Format
139
Communication Format
140
BCD Parallel Data Output Interface
148
Control Connector-Pin Assignment
148
Equivalent Circuit (Input)
148
Equivalent Circuit (Output)
149
BCD Data Output
149
Polarity Output (MINUS)
149
Over Status Output (OVER)
150
Print Command Output
150
Data Strobe (STROBE)
150
BCD Data Update Rate Selection
151
Data Hold Input
151
Logic Switching Input
151
Output Selection Input
151
D/A Converter
152
Name of each Part
152
Specifications
154
Method of Adjusting the D/A Zero and Gain
154
About D/A Resolution
156
Communication Interface
157
Communication Specifications
157
Connection
157
RS-485 Communication Interface
157
Setting Values for RS-485
158
Communication Method
159
Communication Format
160
11 ．Over Scale & Error
168
Over Scale
168
Sequence Error
168
Calibration Error
169
12 ．Trouble Shooting
170
Error Display
171
13 ．Replacement of the Backup Battery
177
14 ．Block Diagram
178
15 ．Dimensions
179
16 ．Mounting on a Panel
180
17 ．Specifications
181
Analog Section
181
Display Section
182
Setting Section
182
External Input/Output
183
Interface
183
General Performance
185
Attachment
186
18 ．The List of Initial Setting Value
187
Setting Mode 0
187
Setting Mode 1
187
Setting Mode 2
188
Setting Mode 3
188
Setting Mode 4
188
Setting Mode 5
189
Setting Mode 8
189
Calibration Mode (Setting Mode 9)
189
