2.CONNECTION
9

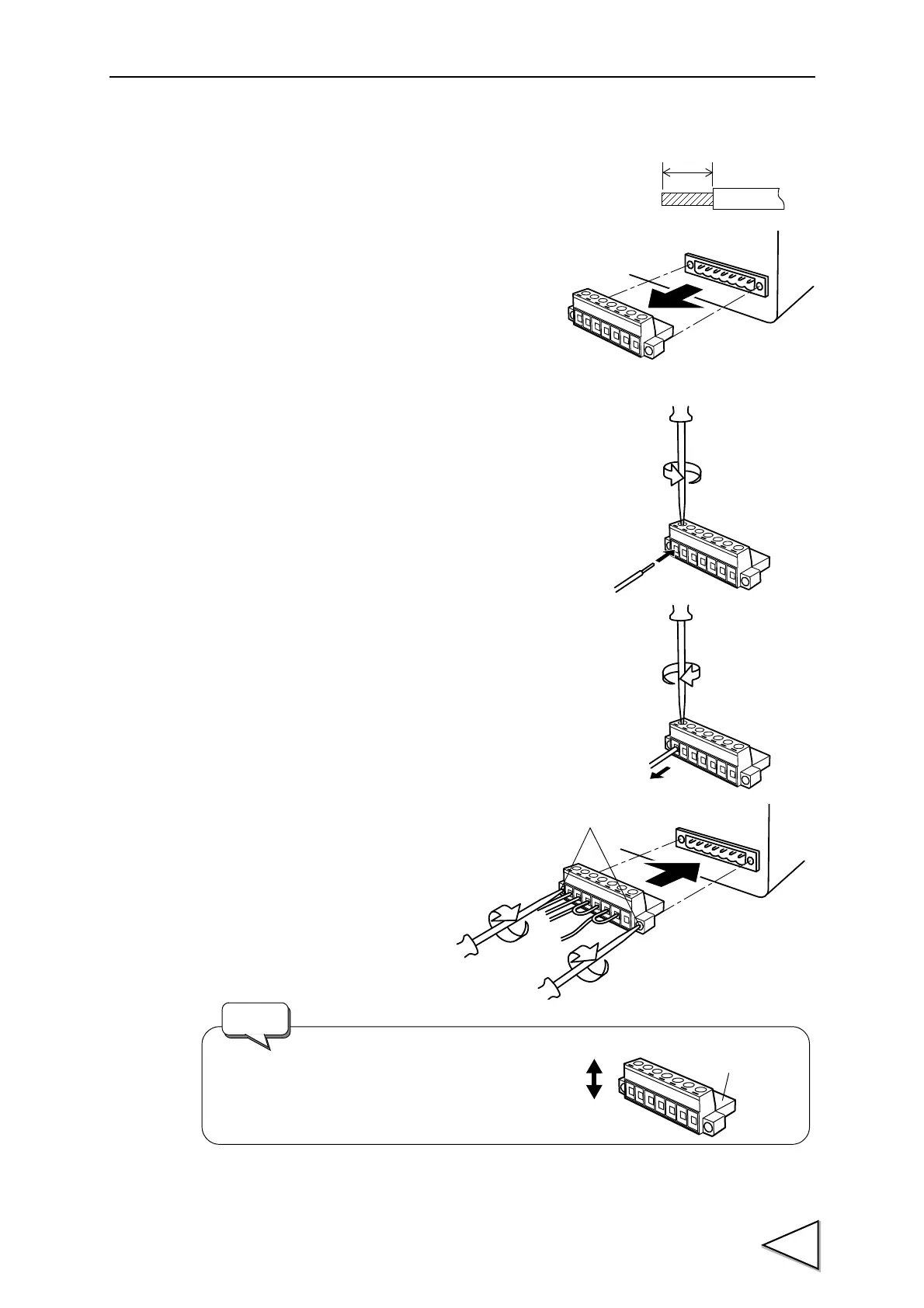

Method of connection
1) Peel the sheath of the wire to be connected 5mm.
2) Twist the end to such an extent that it will not become loose.
3) Remove the terminal block from the F701-C body
with a strong pull.
4) Loosen the screw with a screwdriver to open the hole.
A Phillips screwdriver with a shaft diameter of 3 ~ 3.5mm
#1 is recommendable
(precision screwdriver, etc.).
5) Insert the wire into the hole so as not to loosen the end.
6) Tighten the screw with the screwdriver.
7) Lightly pull the wire to check that it is clamped securely.
* Connectable wires are 0.21 ~ 3.31mm
2
(AWG12 ~ 24).
Recommendable tightening torque is 0.5Nm.
8) Insert the wire-connected plug into
the F701-C body, and tighten the
screws (two).
Hole
Turn
counterclockwise.
Turn clockwise.
Screws(two)
When mounting the terminal block to the
F701-C body, check its vertical orientation.
(See the illustration on the right-hand side.)
UP
DOWN
Request
Insertion side
