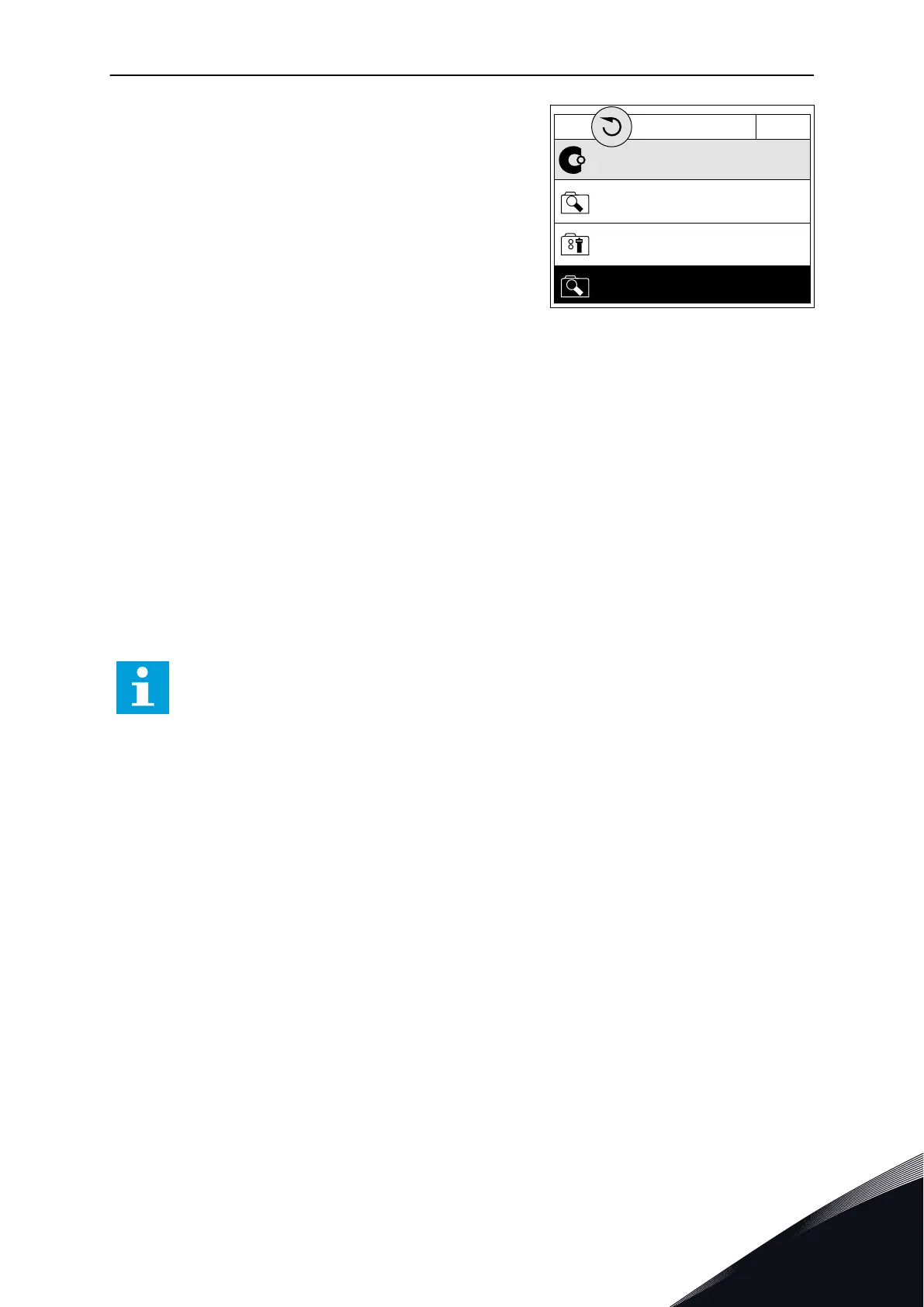

4 The rotation direction changes immediately. You
can see that the arrow indication in the status field
of the display changes.
STOP
READY I/O
ID: M1
Main Menu
Monitor
( 7 )
Parameters
( 15 )
Diagnostics
( 6 )
THE QUICK EDIT FUNCTION
With the Quick edit function, you can have a quick access to a parameter by typing the ID
number of the parameter.
1 Anywhere in the menu structure, push the FUNCT
button.
2 Push the arrow buttons Up and Down to make a
selection of Quick Edit and accept with the OK
button.
3 Write the ID number of a parameter or monitoring
value. Push OK. The display shows the parameter
value in the edit mode and the monitoring value in
the monitoring mode.
3.2.4 COPYING THE PARAMETERS
NOTE!
This function is available only in the graphical display.
Before you can copy parameters from the control panel to the drive, you must stop the drive.
COPYING THE PARAMETERS OF AN AC DRIVE
Use this function to copy parameters from a drive to another.
1 Save the parameters to the control panel.
2 Detach the control panel and connect it to another
drive.
3 Download the parameters to the new drive with the
command Restore from keypad.
USER INTERFACES VACON · 83
