The display shows the status of the motor and the AC drive. It also shows faults in the
operation of the motor and the drive. On the display, you see your current location in the
menu. You also see the name of the group or item in your current location. If the text is too
long for the display, the text scrolls to show the full text string.
A B
F
C
D
E

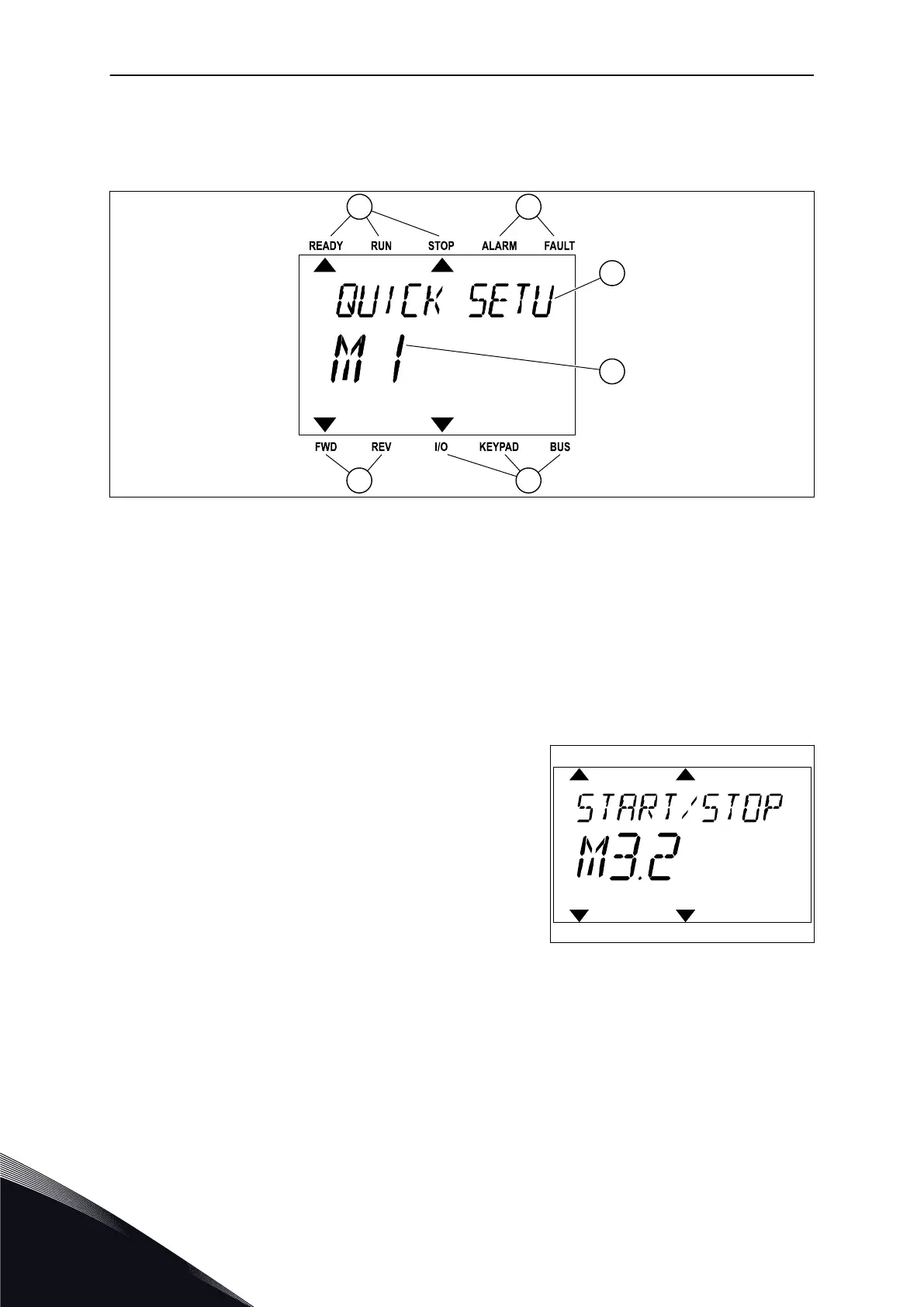

Fig. 18: The main menu of the text display
A. The indicators of status
B. The indicators of alarm and fault
C. The name of the group or item of the
current location
D. The current location in the menu
E. The indicators of the control place
F. The indicators of the rotation direction
3.3.1 EDITING THE VALUES
CHANGING THE TEXT VALUE OF A PARAMETER
Set the value of a parameter with this procedure.
1 Find the parameter.
READY
FAULT
ALARM
STOP
RUN
BUS
KEYPAD
I/O
REV
FWD
VACON · 88 USER INTERFACES
3
TEL. +358 (0)201 2121 · FAX +358 (0)201 212 205
