Vacon 100 Applications Manual

4 MONITORING MENU
4.1 MONITOR GROUP
You can monitor the actual values of the parameters and signals. You can also monitor the
statuses and measurements. You can customise some of the values that you can monitor.
4.1.1 MULTIMONITOR
On the Multimonitor page, you can collect 4 to 9 items to monitor. Make a selection of the
number of items with the parameter 3.11.4 Multimonitor View. See more in chapter 5.11
Group 3.11: Application settings.

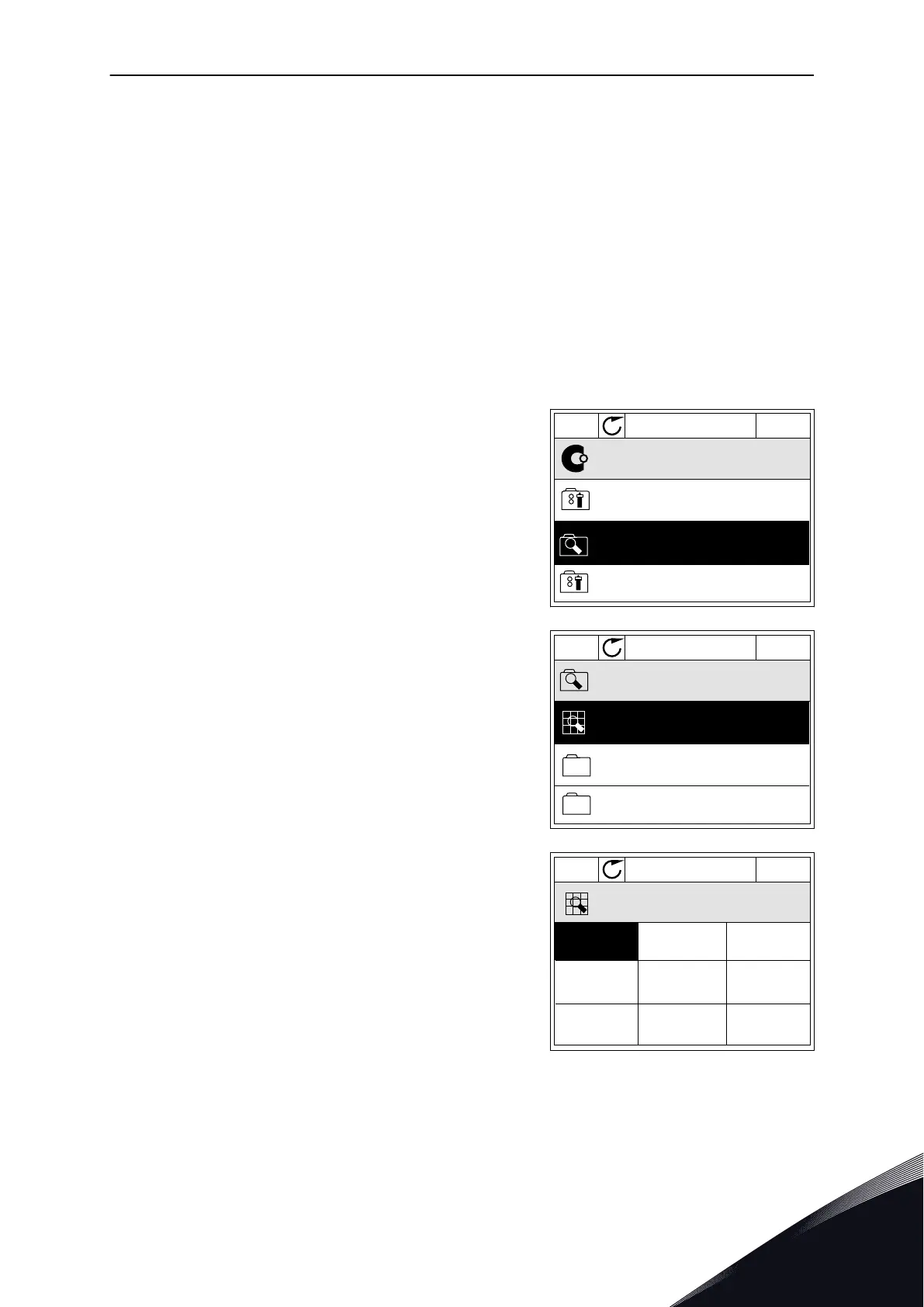

CHANGING THE ITEMS TO MONITOR
1 Go into the Monitor menu with the OK button.
STOP
READY I/O
ID: M1
Main Menu
Monitor
(12)
Quick Setup
(4)
Parameters
(21)
2 Go into Multimonitor.
STOP
READY I/O
ID: M2.1
Monitor
Multimonitor
Timer Functions
Basic
(13)
(7)
3 To replace an old item, activate it. Use the arrow
buttons.
STOP
READY I/O
ID:25 FreqReference
Multimonitor
20.0 Hz
Motor Curre
0.00A
DC-link volt
0.0V
Output Freq
0.00 Hz
Motor Speed
0.0 rpm
Motor Voltage
0.0V
Motor Tempera
0.0%
Motor Torque
0.00 %
Unit Tempera
81.9°C
FreqReference
MONITORING MENU VACON · 97
24-HOUR SUPPORT +358 (0)201 212 575 · EMAIL: VACON@VACON.COM
4
