3.2 USING THE GRAPHICAL DISPLAY
STOP
READY I/O
Main Menu
A B C D E
F
H
G
Quick Setup
( 17 )
Monitor
( 5 )
Parameters
( 12 )
M1ID:

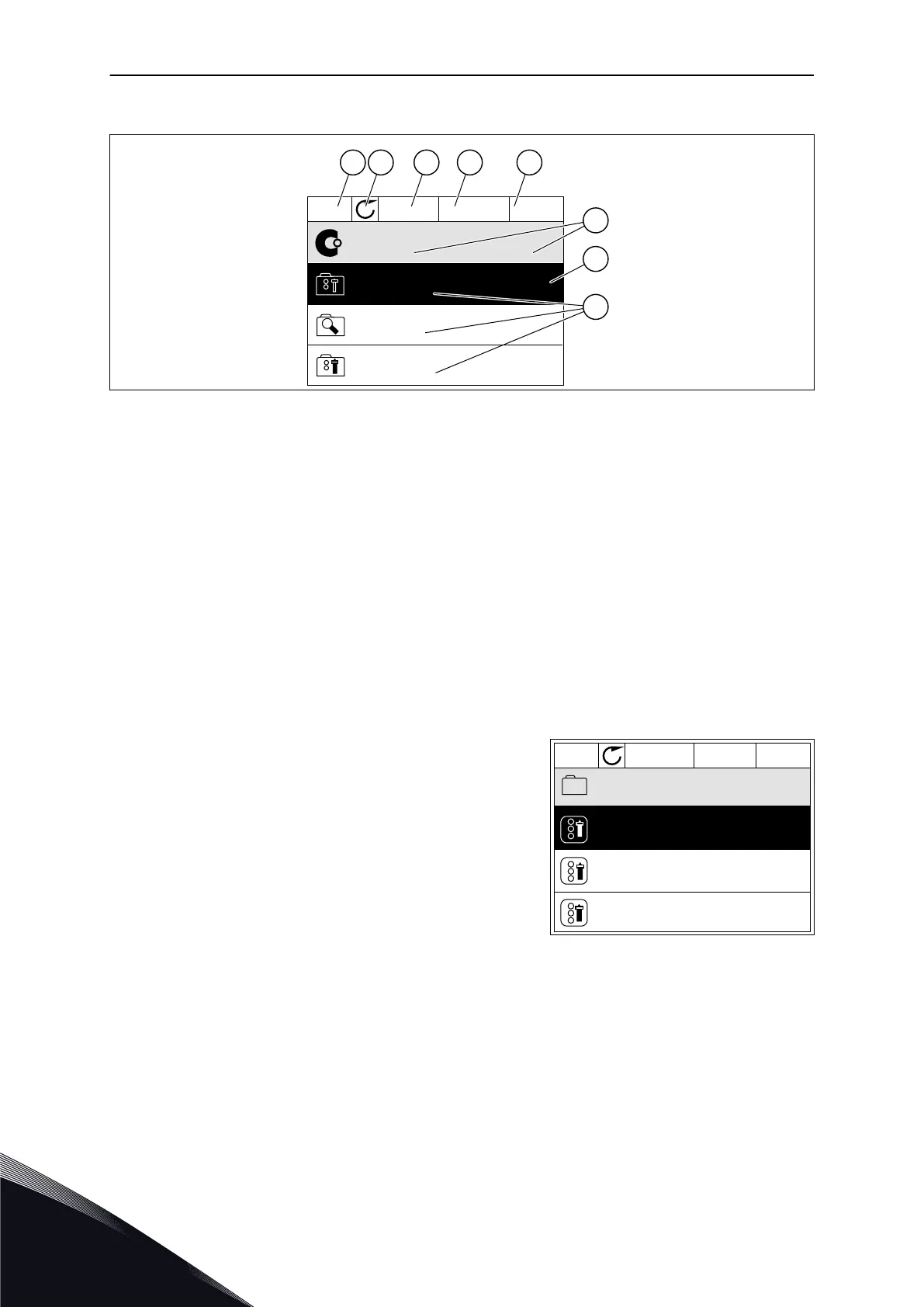

Fig. 17: The main menu of the graphical display
A. The first status field: STOP/RUN
B. The rotation direction
C. The second status field: READY/NOT
READY/FAULT
D. The alarm field: ALARM/-
E. The control place: PC/IO/KEYPAD/
FIELDBUS
F. The location field: the parameter ID
number and the current location in the
menu
G. An activated group or item: push OK to
go in
H. The number of items in the group in
question
3.2.1 EDITING THE VALUES
On the graphical display, there are 2 different procedures to edit the value of an item.
Usually, you can set only 1 value for a parameter. Make a selection from a list of text values
or from a range of numerical values.
CHANGING THE TEXT VALUE OF A PARAMETER
1 Find the parameter.
STOP
READY
I/O
Rem Control Place
I/O Control
KeypadStopButton
Yes
Start Function
Ramping
Start / Stop Setup
M3.2.1ID:172
VACON · 76 USER INTERFACES
3
TEL. +358 (0)201 2121 · FAX +358 (0)201 212 205
