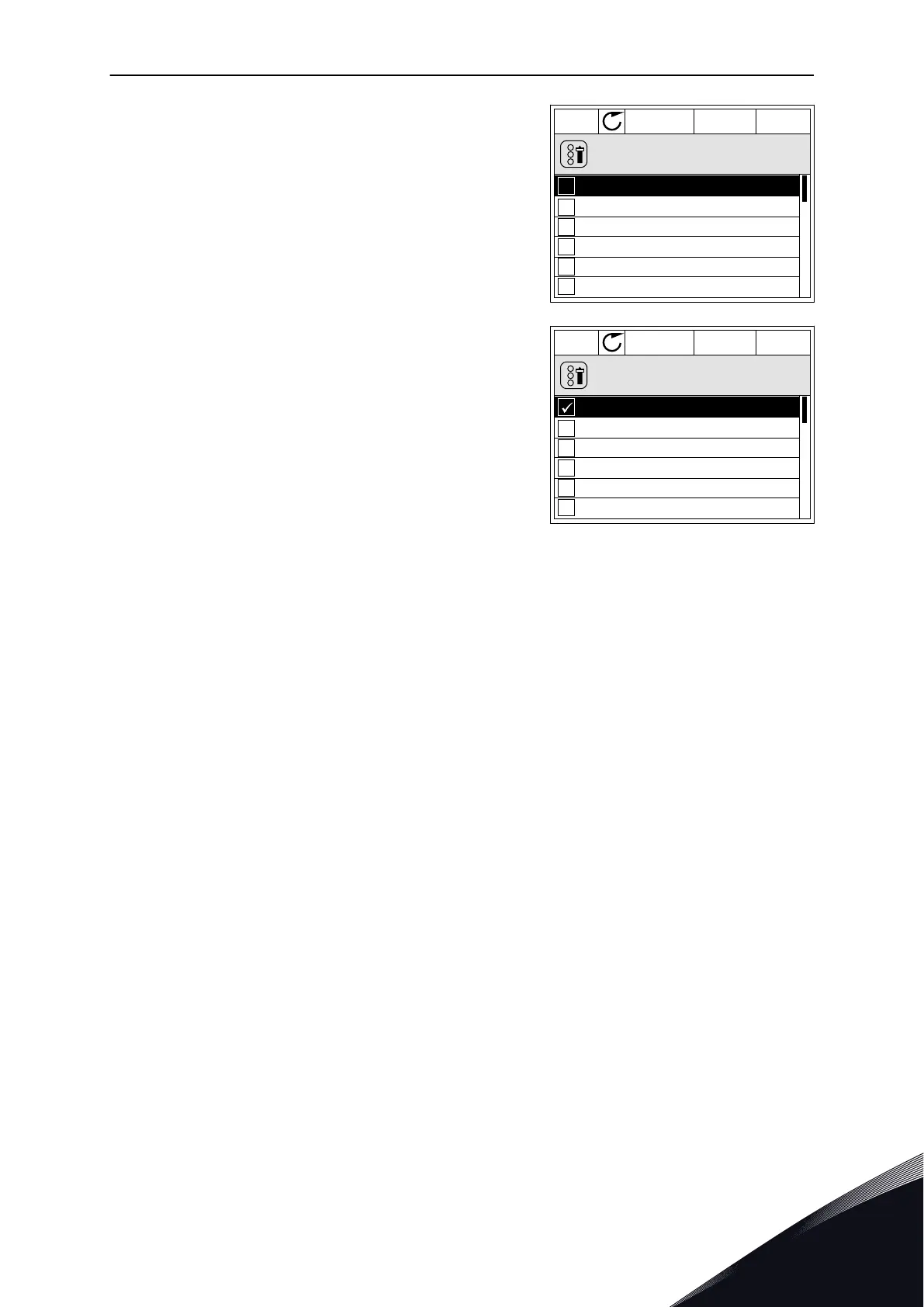

2 To move in the list of values, use the arrow buttons
Up and Down.
STOP
READY
I/O
M 3.12.1.3.1ID:
Days
Monday
Tuesday
Wednesday
Thursday
Friday
Sunday
3 To add a value into your selection, tick the box that
is next to it with the arrow button Right.
STOP
READY
I/O
M 3.12.1.3.1ID:
Days
Monday
Tuesday
Wednesday
Thursday
Friday
Sunday
3.2.2 RESETTING A FAULT
To reset a fault, you can use the Reset button or the parameter Reset Faults. See the
instructions in 10.1 A fault comes into view.
3.2.3 THE FUNCT BUTTON
You can use the FUNCT button for 4 functions.
•
To have an access to the Control page.
•
To easily change between the Local and Remote control places.
•
To change the rotation direction.
•
To quickly edit a parameter value.
The selection of the control place determines from where the AC drive takes the start and
stop commands. All the control places have a parameter for the selection of the frequency
reference source. The Local control place is always the keypad. The Remote control place is
I/O or Fieldbus. You can see the current control place on the status bar of the display.
It is possible to use I/O A, I/O B and Fieldbus as Remote control places. I/O A and Fieldbus
have the lowest priority. You can make a selection of them with P3.2.1 (Remote Control
Place). I/O B can bypass the Remote control places I/O A and Fieldbus with a digital input.
You can make a selection of the digital input with parameter P3.5.1.7 (I/O B Control Force).
The keypad is always used as a control place when the control place is Local. Local control
has higher priority than Remote control. For example, when you are in Remote control, if
parameter P3.5.1.7 bypasses the control place with a digital input, and you make a selection
of Local, Keypad becomes the control place. Use the FUNCT button or P3.2.2 Local/Remote
to change between the Local and Remote control.
USER INTERFACES VACON · 79
