Vacon 100 Applications Manual

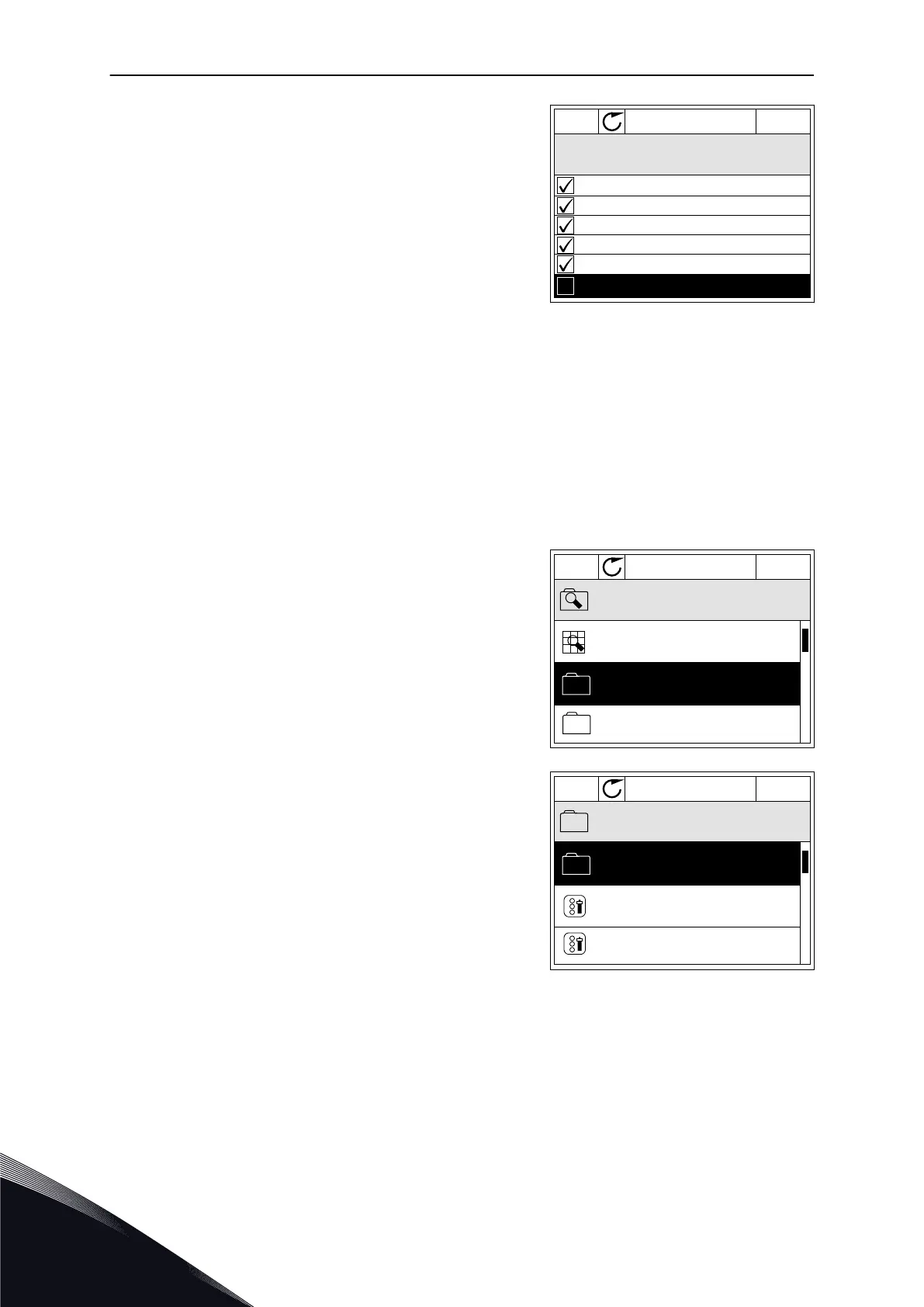

4 To make a selection of a new item in the list, push
OK.
STOP
READY I/O
ID:1 M2.1.1.1
FreqReference
0.00 %Motor Power
Output frequency
FreqReference
Motor Speed
Motor Current
Motor Torque
0.00 Hz
10.00 Hz
0.00 rpm
0.00 A
0.00 %
4.1.2 TREND CURVE
The Trend curve is a graphical presentation of 2 monitor values.
When you make a selection of a value, the drive starts to record the values. In the Trend
curve submenu, you can examine the trend curve, make the signal selections. You can also
give the minimum and maximum settings and the sampling interval, and use Autoscaling.
CHANGING THE VALUES
Change the monitoring values with this procedure.
1 In the Monitor menu, find the Trend curve submenu
and push OK.
STOP
READY I/O
ID: M2.2
Monitor
Multimonitor
Basic
Trend Curve
(13)
(7)
2 Go into the submenu View trend curve with the OK
button.
STOP
READY I/O
ID: M2.2.1
Trend Curve
Channel 1 min
View Trend Curve
-1000
Sampling interval
100 ms
(2)
VACON · 98 MONITORING MENU
4
