Chapter 6 Installation and Initial Operation Alpha Compact 32708612
Version: 14.12.2012 page 35 of 135
Positioning the Labeler
Property damage caused by improper installation.
Use only the existing factory mounting points.
Do not drill new mounting points into the cabinet.

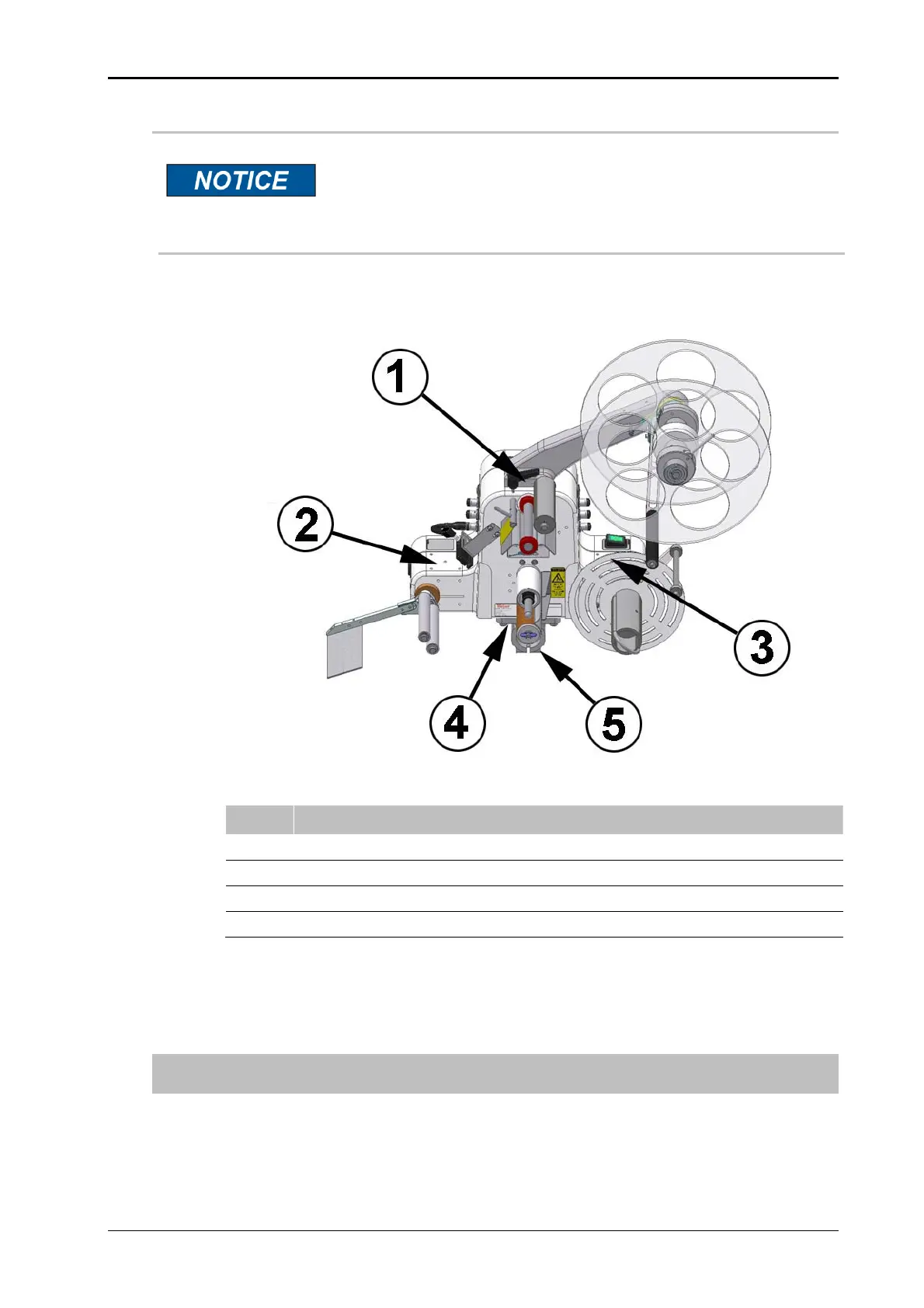

Fig.: 6-1 Mounting Points
No. Description
1 MOUNTING POINT TOP SIDE
2 MOUNTING POINT LEFT SIDE
3 MOUNTING POINT RIGHT SIDE
4 MOUNTING POINT BOTTOM SIDE
The Alpha Compact is equipped with four possible fixing positions at the cabinet. Depend-
ing on the order there are four M8 or four M6 threads at one of the positions. The other 3
mounting points are marked.
The mounting points may not be drilled later. The components of Alpha Compact
would be damaged thereby.
When fixing all four threads have to be screwed to a sufficiently stable mounting. The
screws have to be at least 8 mm deeply into the thread. Suitable are screws of the proper-
ty class 8.8 with a tightening torque of 18Nm at M8 and 10Nm at M6. At standard systems
at the bottom side a clamping flange is fixed that enables the installation at 40 mm tubes.
Many suitable mountings are available in our product range and can be ordered at Weber
Marking Systems GmbH.
