Chapter 6 Installation and Initial Operation Alpha Compact 32708612
Version: 14.12.2012 page 40 of 135
Labeler is connected with supply voltage.
Control of product supply and if necessary the customer`s conveying system.
Instruction
Please adjust the sensor LD86PCT3 to the adequate teach modes.
Step Procedure
1
Push the teach-button for 10 seconds until the LED changes from fast flashing
to slow flashing.
2
Each pushing of the teach-button switches to the next teach-mode.
The teach-modes are indicated by differing flashing of the shift indicator.
3
If the teach-button is not pushed for 15 seconds, the shift indicator goes back to
normal indication mode and the settings are saved.
You will find further information on sensor settings in the manufacturer`s manual.
Product Sensor Positioning

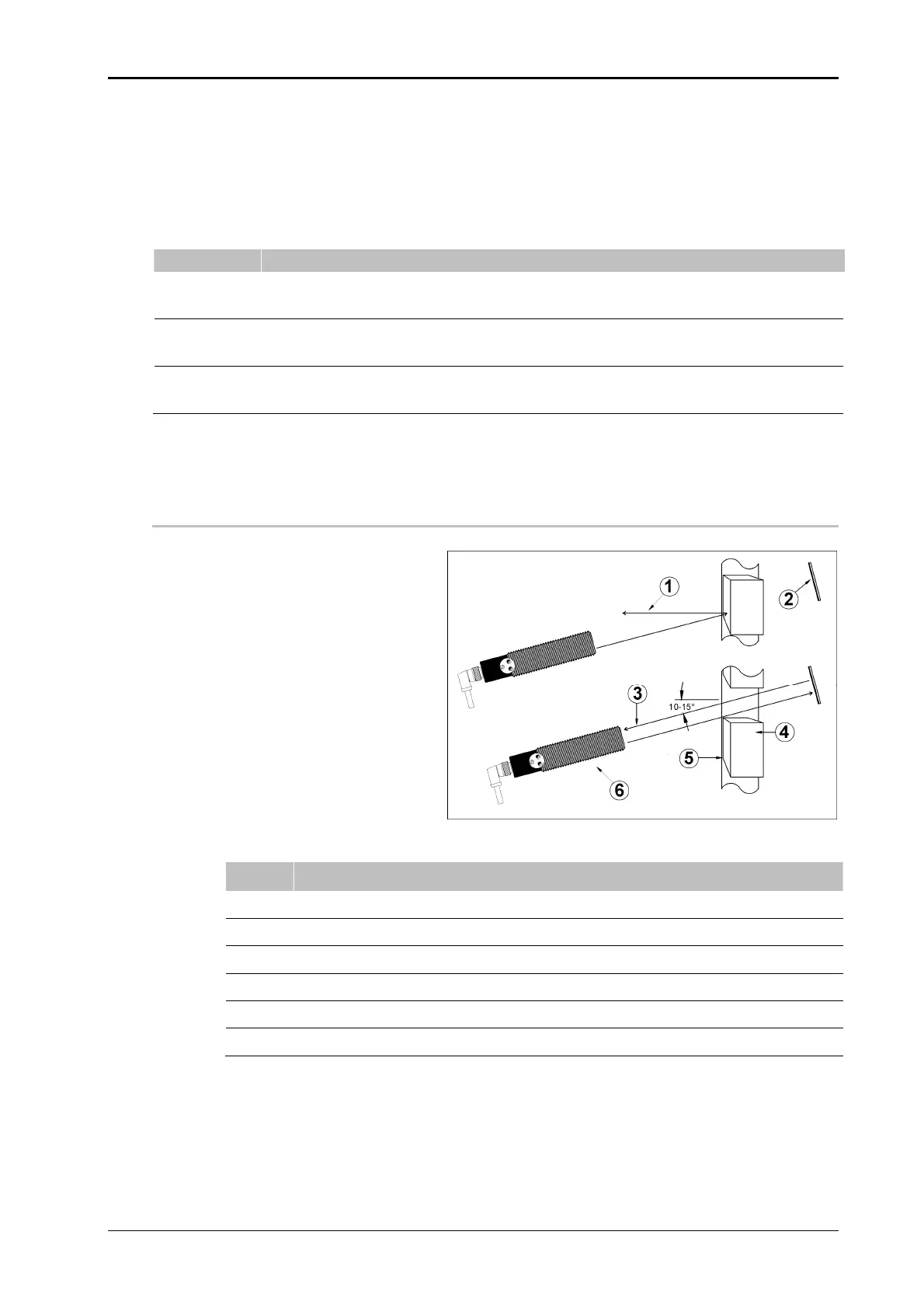

Fig.: 6-4 Light Barrier
No. Description
1
NOT INTENDED REFLECTION OF PRODUCT SURFACE
2
REFLECTOR
3
REFLECTED LIGHT BEAM
4
PRODUCT
5
CONVEYOR BELT
6
LIGHT BARRIER
The fixing of the product sensor has to be performed before adjusting the sensitivity.
Please mount the product sensor the way that you still can change adjustment later.
