Weber ALPHA COMPACT User Manual

Chapter 6 Installation and Initial Operation Alpha Compact 32708612
Version: 14.12.2012 page 53 of 135
Instruction
Please adjust the
micro-switch scanning as follows.
Step Procedure
1
Lead a label gab at the label scanning position.
2
Turn the knurl wheel until the indicator light of the senosor goes straigt out.
3
Press the [Start] button for checking the adjustment. If necessary, correct
the setting by small adjustment on the knurl wheel.
(X8) Applicator (Option)
The applicator connection happens via M12, 5 pin socket. This enables the labeler`s con-
nection with further optional sub-assemblies.

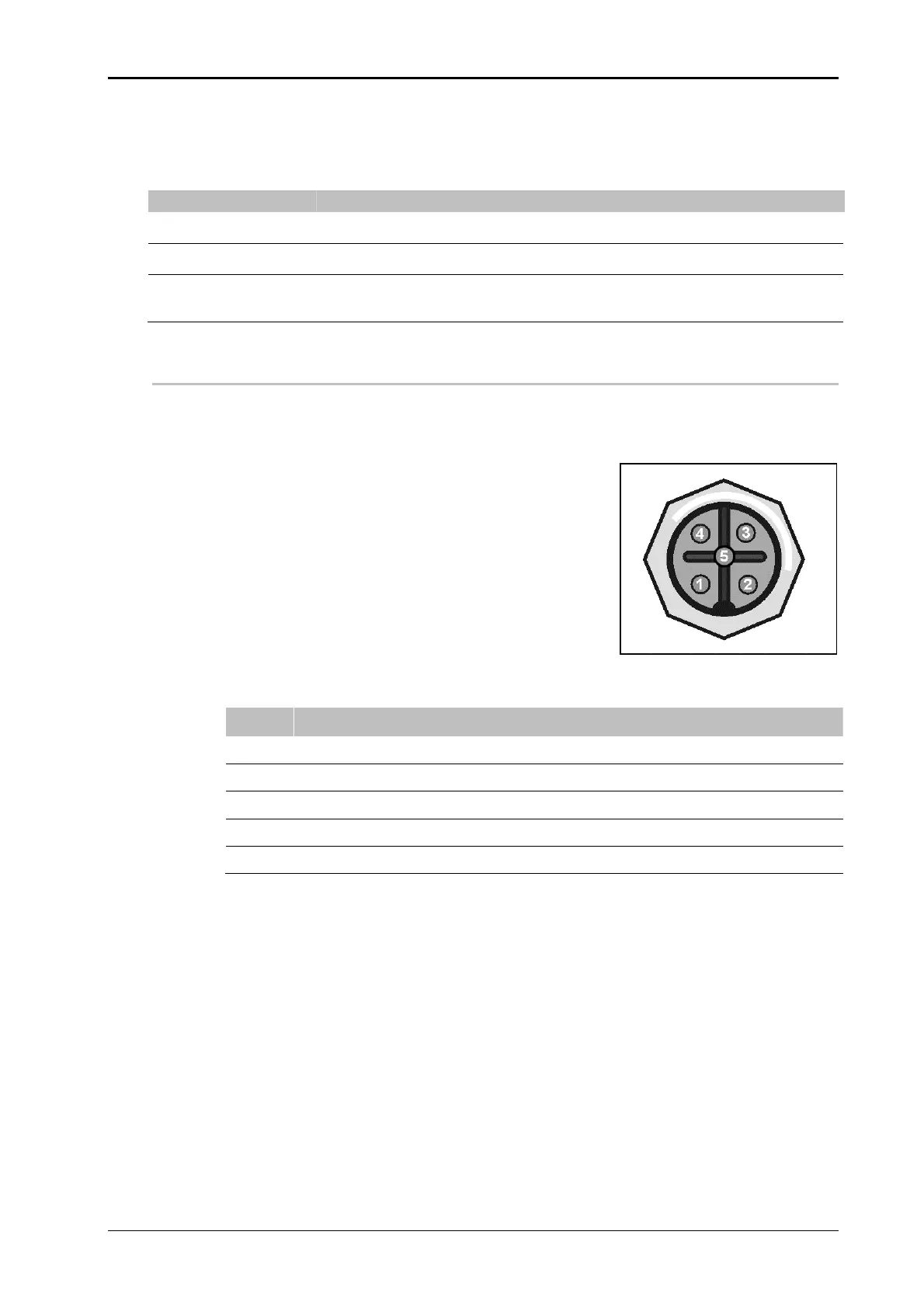

Fig.: 6-14: PIN Assignment Applicators
PIN Assignment
1
+ 24V DC (BROWN)
2
NOT USED
3
GND (BLUE)
4
NOT USED
5
NETWORK
