Chapter 8 System Options
Alpha Compact 32708612
Version:
14.12.2012 page 83 of 135
Program-Menus
Safety Instructions
The PROGRAMMING MODE is only allowed to be used by
qualified persons!
- A false programming may cause failures!
The display controller of the Alpha Compact includes three menu modes which can be
reached and left via key combination. Push the following buttons together at the same
time in stand-by status to get to the desired menu:

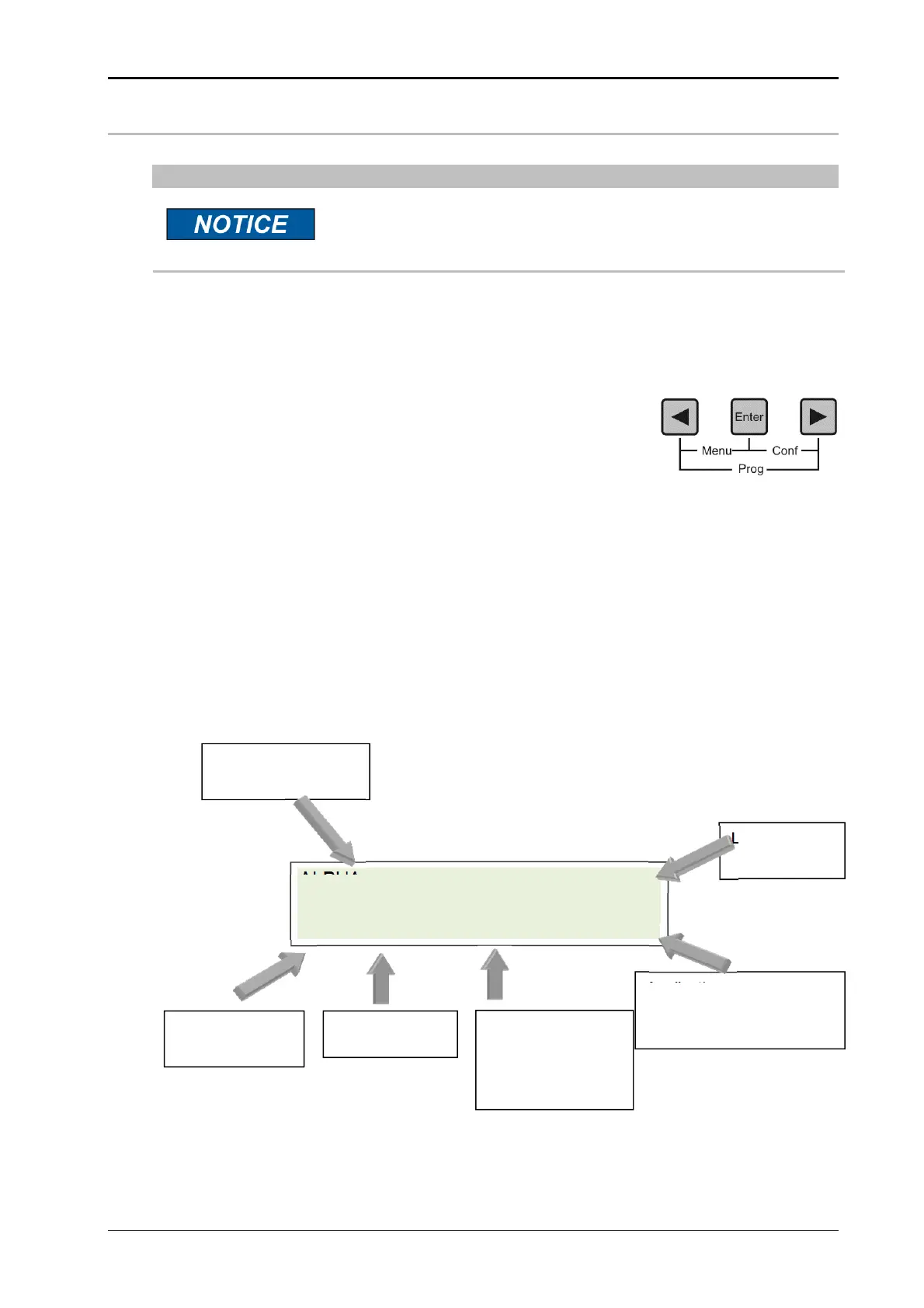

Fig. 7-4: Buttons below Display
[] + [Enter] =
FUNCTION-MENU
[Enter] + [] =
CONFIGURATION-MODE
[] + [] =
PROGRAMMING-MODE
(Only for qualified personnel, further information in the service manual)
Here is a display example for further explanations:
Fig. 7-5: Display Explanation
ALPHA.03 0884
C=0 004.3 03.6
50.0
Firmware version of
the controller
Status line
Label counter
Application rate in m/min
Label length in
cm
Position label to
label sensor in cm
