Chapter 8 System Options Alpha Compact 32708612
Version: 14.12.2012 page 82 of 135

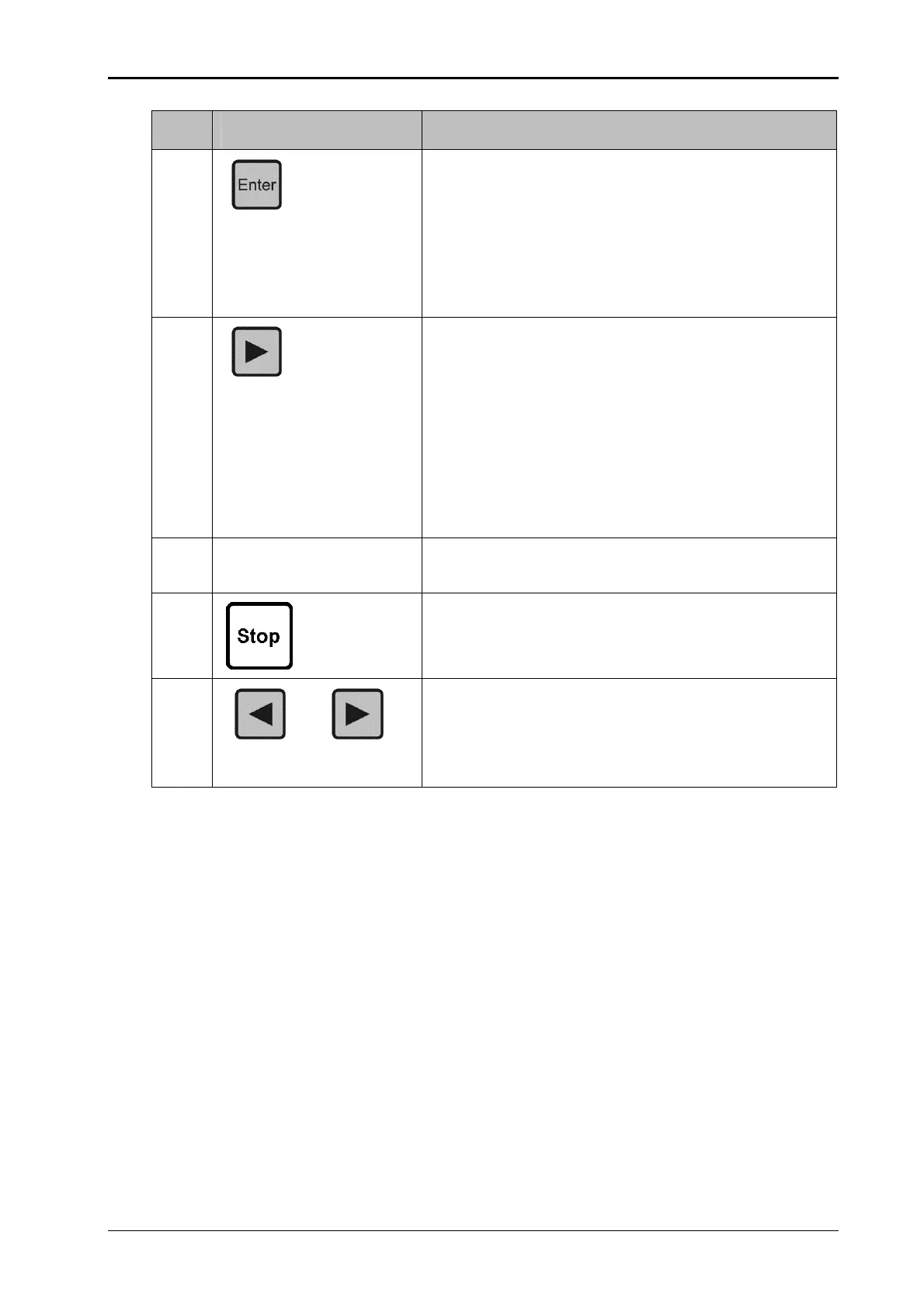

No. Term Description
5
The [Enter] key has 3 functions:
JOG-function: during labeling operation the alpha
Compact can be triggered by this key.
In combination with further keys for calling up
menus.
In the menus, the [Enter] key serves for changing
parameter or to confirm inputs.
6
The buttons [] / [] have 3 functions:
In combination with other buttons for selecting
menus
For navigation in menus
For changing parameter values ([] = reduces/
[] = increases).
The autorepeat-function of the buttons enables a quick
change of high values when you hold on pushing the
certain button.
7 LED Stop
If the red LED flashes above the [Stop]-button, the „read-
iness for labeling“ will be interrupted.
8
The [Stop]-button is used to terminate the labeling opera-
tion. After pushing the button, the labeler changes to
standby mode.
3+5
+
By pushing the [] + [] and [Cal] button simultaneously
the label position is aligned in direction of the peeler bar.
The labeler carries out 3 label applying procedures for
calibration. Then the label’s leading edge is aligned to the
peeler bar.
