Dancer arm unwinder- setting
Safety instructions
Danger of drawing in by rotating elements.
DANGER OF DRAWING IN
Rotating elements at labeler, rewinder, web brake and rollers of
the friction unit.
 Disconnect the labeler from supply voltage when performing
any work.
Danger of production disruptions.
The setting of the brake belt for the label unwinder may only be
arranged by trained personnel!

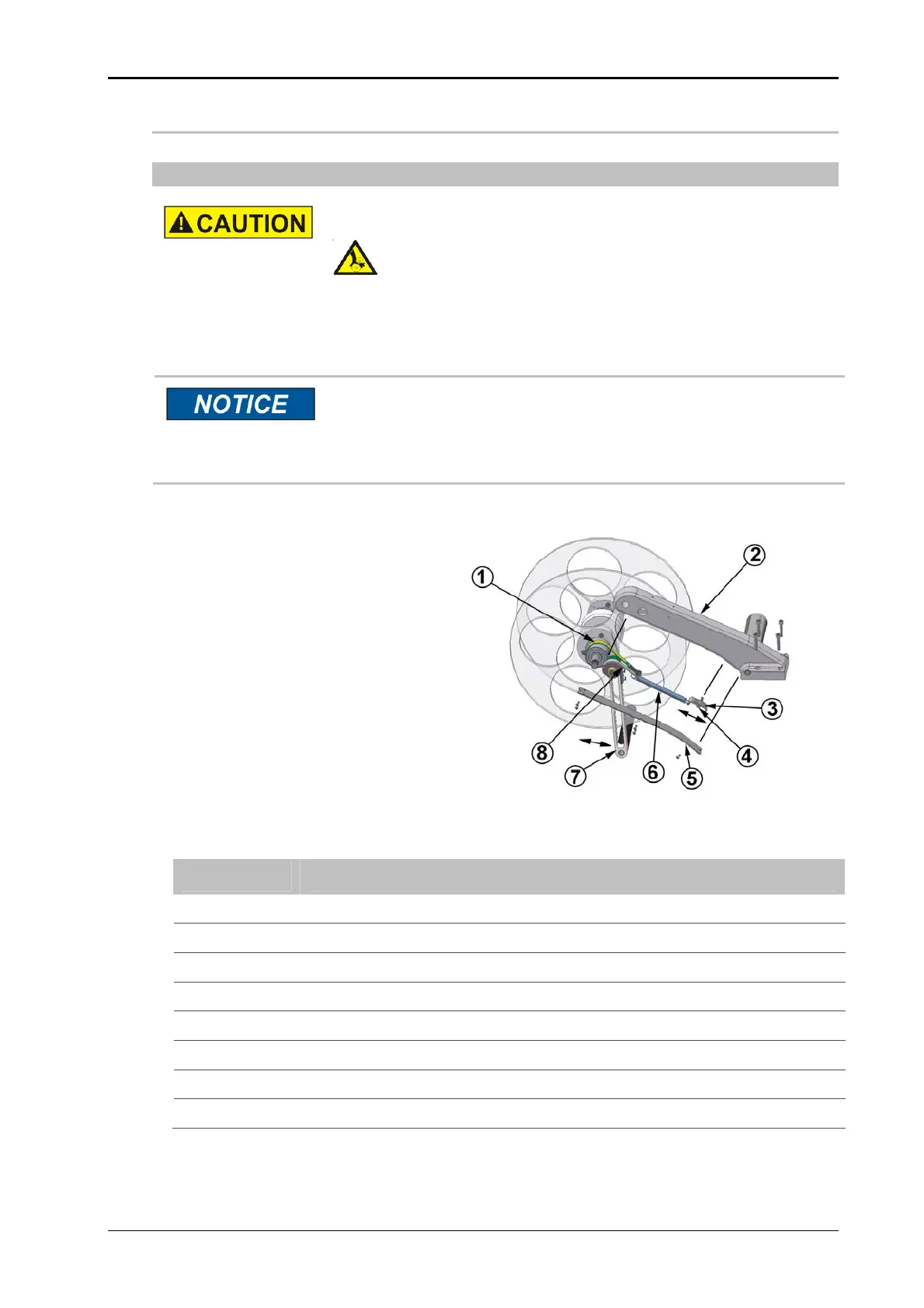

Fig.: 6-22: Unwinder in dismantled view
Schritt Vorgehen
1
BRAKE BELT OUTSIDE
2
UNWINDER ARM
3
ADJUSTMENT TO TENSION SPRING INSIDE
4
SCREW TO CLAMPING OF TENSION SPRING INSIDE
5
COVER PLATE
6
TENSION SPRING INSIDE
7
DANCER ARM WITH DEFLECTION ROLLER
8
BRAKE BELT INSIDE
