Weber ALPHA COMPACT User Manual

Chapter 6 Installation and Initial Operation Alpha Compact 32708612
Version: 14.12.2012 page 54 of 135
(X9) I/O (Option)
The I/O interface serves for the connection of the Alpha Compact with new machine op-
tions or the customer`s controller. The PIN 4 is not used for the external trigger. It has the
same function as the [Start] button of the Control Panel. A signal will be activated and
maybe failure messages will be reset by pushing.

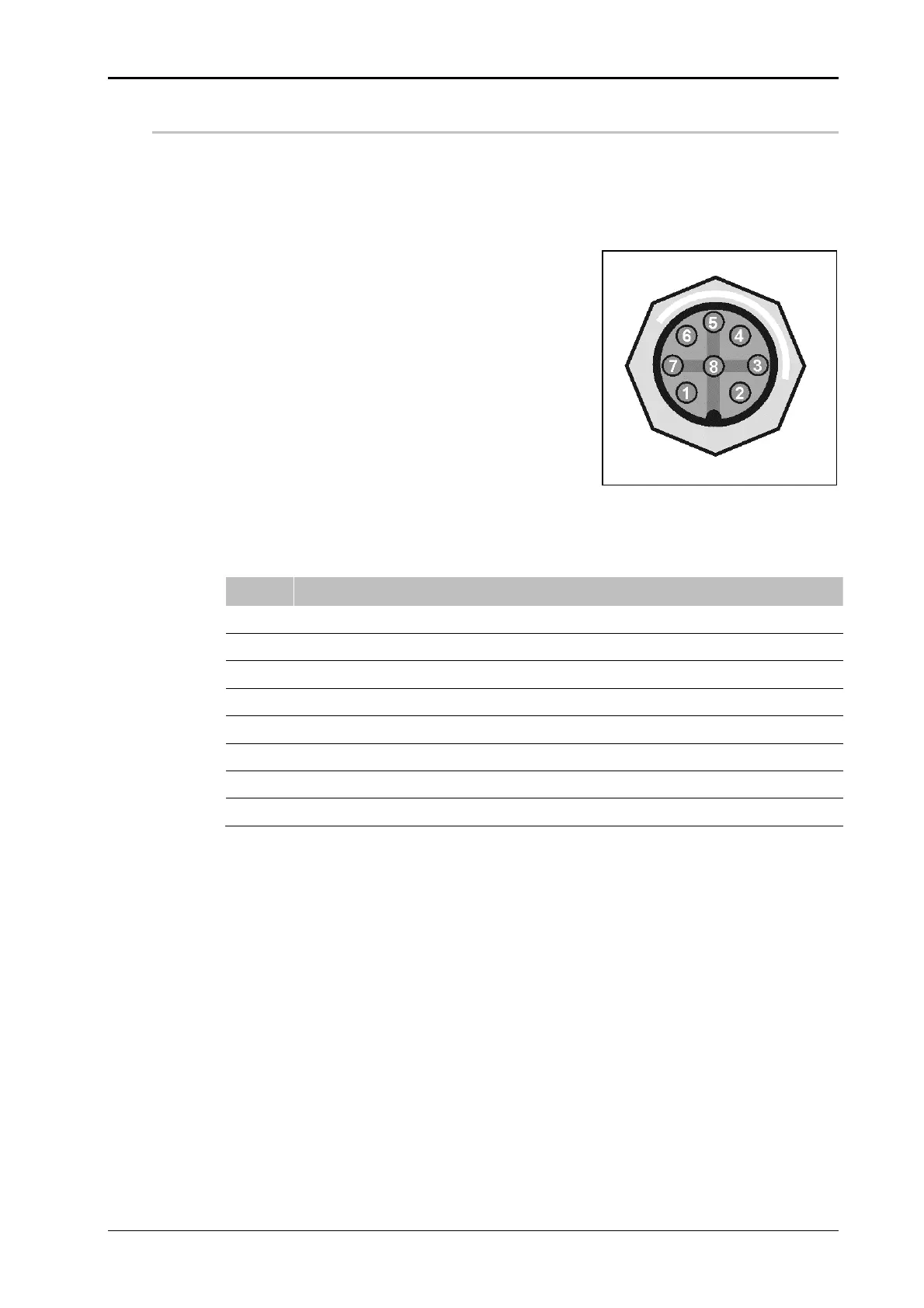

Fig.: 6-15: PIN Assignment X9 I/O
*All outputs which are supplied via (P 24) are not alowed to consume together more than max. 500mA.
PIN Assignment
1
OUTPUT SIGNAL: READY, (N.O.) MAX: 200MA, MAX. 30V
2
OUTPUT SIGNAL: LOW LABEL WARNING (N.O.) MAX. 200MA, MAX. 30V
3
OUTPUT SIGNAL: SYNC, (N.O.) MAX: 200MA, MAX. 30V
4
INPUT SIGNAL: REMOTESTART MAX. 10MA, LOW < 3VDC, HIGH > 15VDC
5
COM INPUT SIGNAL
6
COM OUTPUT SIGNAL
7
+24V (P24)
8
0 V TO EARTH
