Weber ALPHA COMPACT User Manual

Chapter 6 Installation and Initial Operation Alpha Compact 32708612
Version: 14.12.2012 page 73 of 135
*²Adjust angle of rotation at optional rotating tamp
Danger due to actively controlled movements..
DANGER OF BEING CRUSHED!
The movements of the applicator are driven by pneumatic cylin-
ders.
- Maintain a distance from applicator.

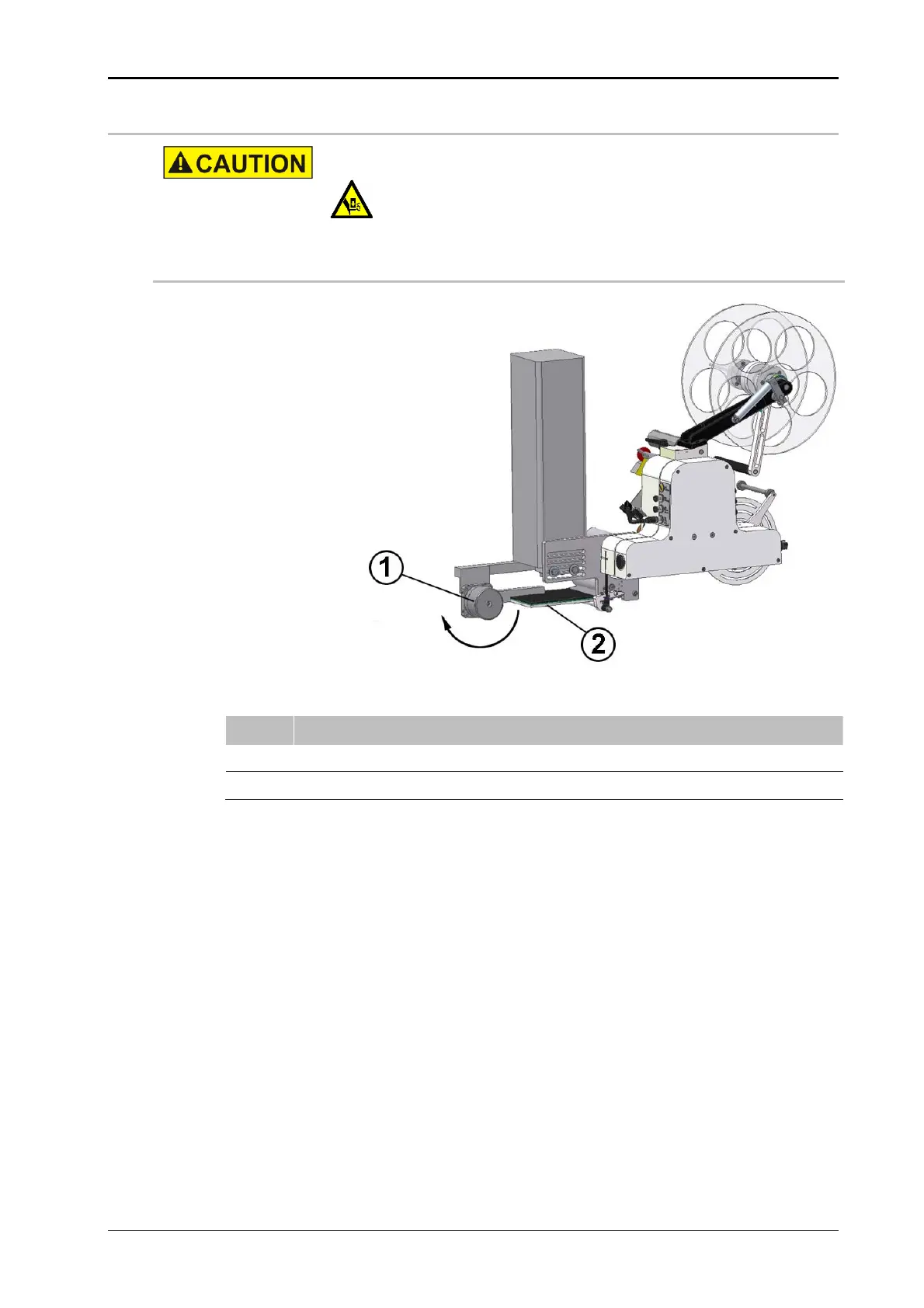

Fig. 6-3: Alpha Compact with rotating tamp
No. Description
1
SWING MODULE
2
ROTATING TAMP
The rotating angle of the rotating tamp has to be adjusted appropriate to the product.
The adjustment is arranged at the swing module by regulation of two end stops. The end
stops impede a pin from turning on and limit in this way the swing angle of the rotating
tamp.
