Chapter 6 Installation and Initial Operation Alpha Compact 32708612
Version: 14.12.2012 page 74 of 135

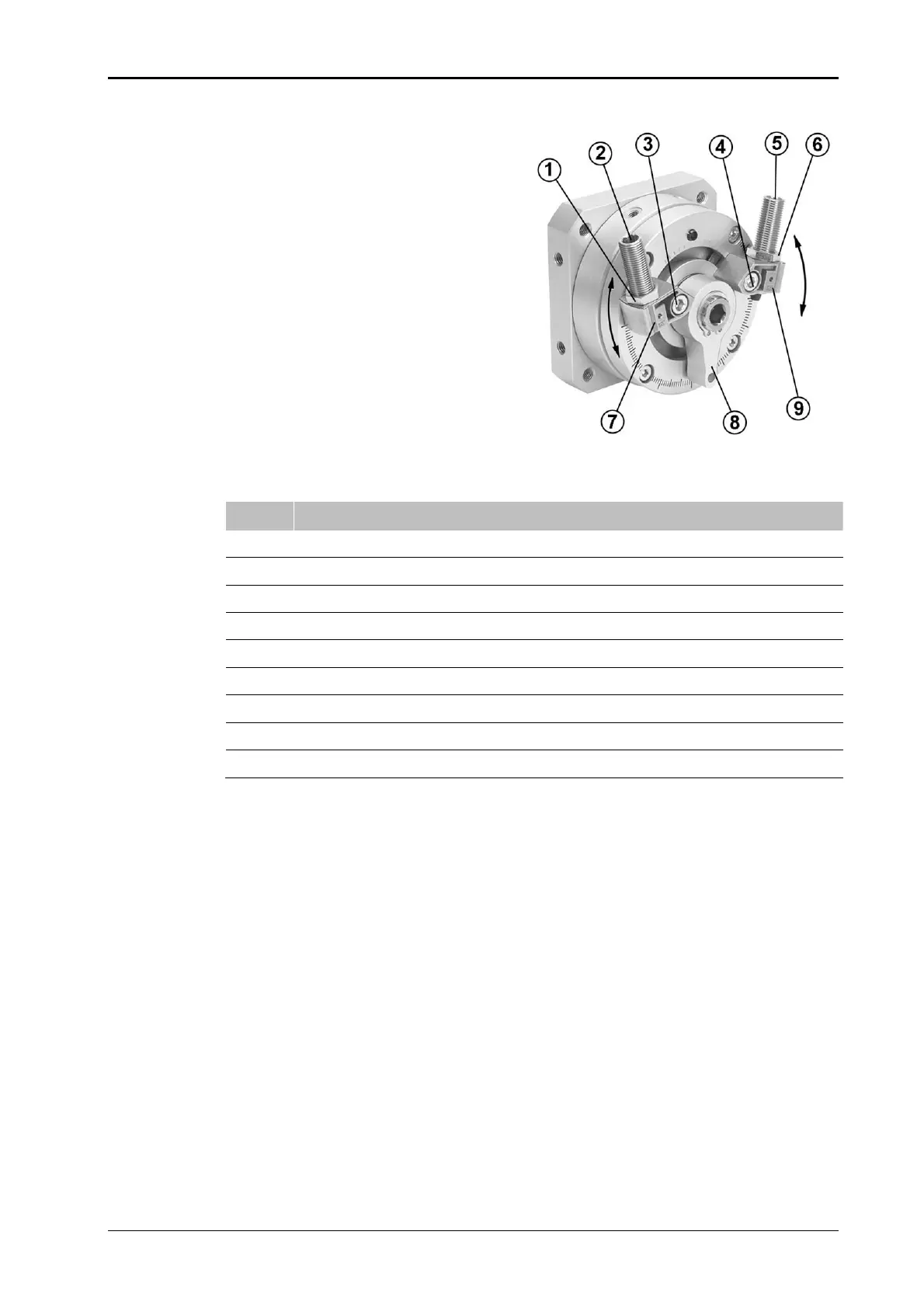

Fig. 6-4: Alpha Compact with rotating tamp
No. Description
1
COUNTER NUT
2
*² OPTIONAL SHOCK ABSORBER
3
CLAMPING SCREW TO END STOP
4
CLAMPING SCREW TO END STOP
5
*² OPTIONAL SHOCK ABSORBER
6
COUNTER NUT
7
1. END STOP AT LH / 2. END STOP AT RH
8
PIN
9
2. END STOP AT LH / 1. END STOP AT RH
Requirements
- Labeler is powerless (power – and compressed air supply is turned off).
- Product feed is stopped.
- Labeler is aligned in position to the product.
Required equipment:
- 3mm hexagon socket wrench
- Screw driver G00
