Chapter 6 Installation and Initial Operation Alpha Compact 32708612
Version: 14.12.2012 page 44 of 135
Test Run
After you are finished with all adjustments, please check the repeated application accura-
cy.
Requirements
Control of product supply.
Labeler is switched-on.
Position of product sensor is adjusted.
Sensitivity of product sensor is adjusted.
Instruction
Please check the repeated application accuracy as follows:
Step Procedure
1
Pass, if possible, always the same product to the labeler to examine the application
accuracy of the on each other pasted labels.
2
Examine the application accuracy of the on each other pasted labels.
If the label position is not constant, you will please have to check the adjustments of the
labeler (from the beginning of this chapter) and the product sensor.
(X3) Low Label (Option)
The connection of the Low Label Sensor happens via a M12, 4 pin plug socket. This plug
socket is suitable for the optional Low Label Warning 35001817.

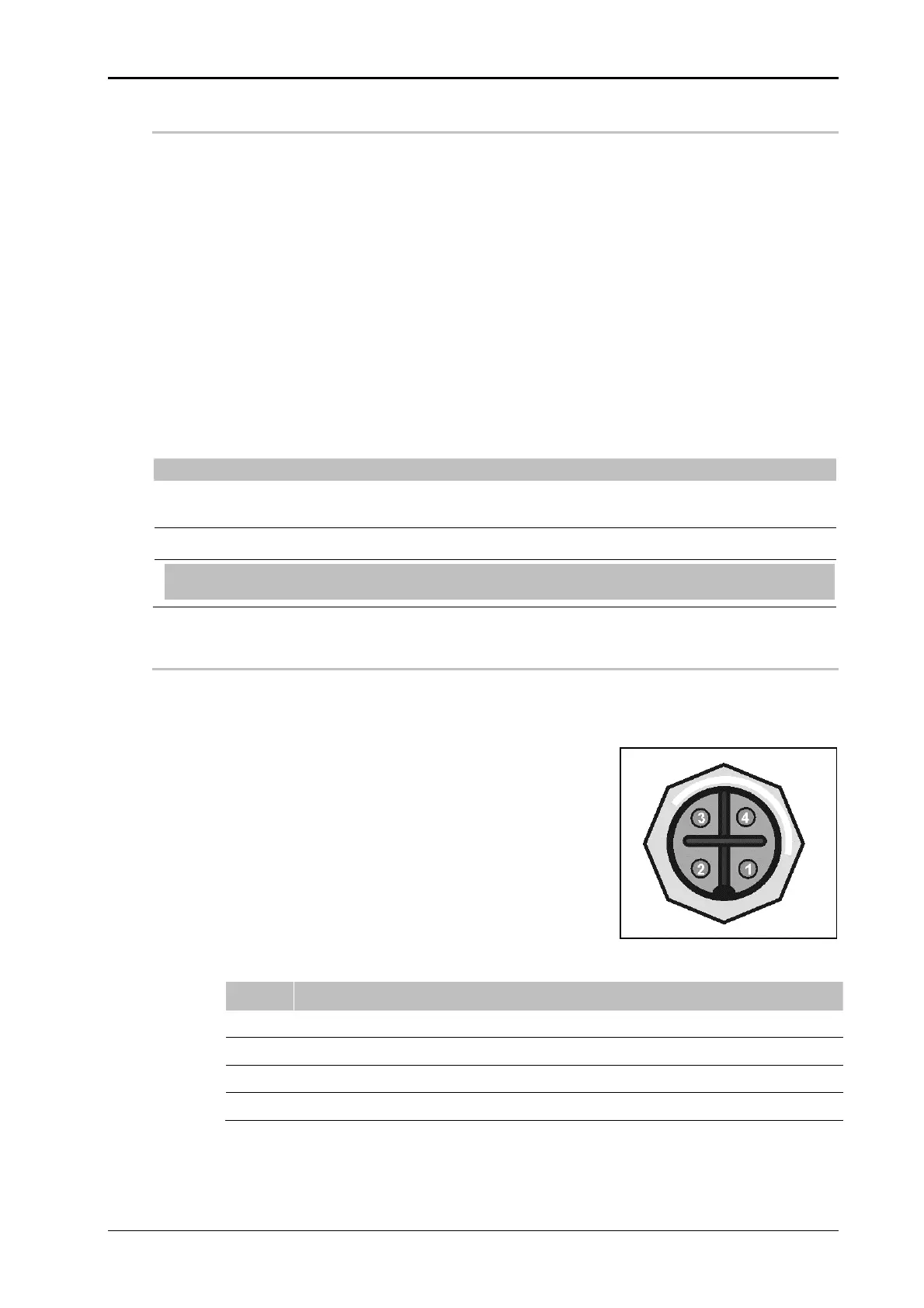

Fig.: 6-6: Pin Assignment Low Label Warning
PIN Assignment
1 + 24V DC (BROWN)
2 NOT USED
3 GND (BLUE)
4 INPUT SIGNAL (BLACK)
