Chapter 6 Installation and Initial Operation Alpha Compact 32708612
Version: 14.12.2012 page 39 of 135
Configuration Product Sensor Wenglor LD86PTC (Option)
The functioning of the standard sensor Wenglor LD86PCT3 is adjusted directly at the
sensor via teach-button.

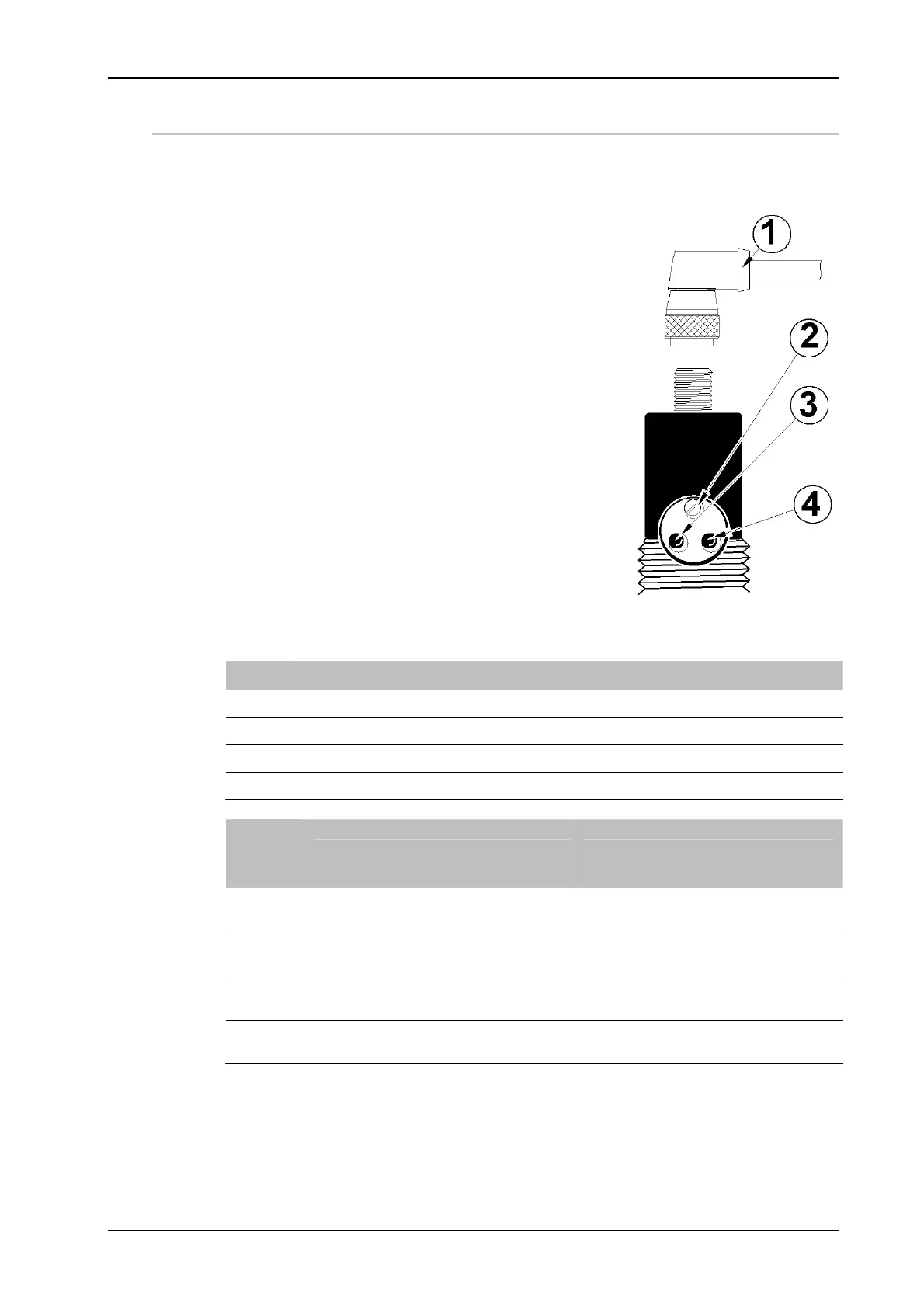

Fig.: 6-3 Wenglor LD86PTCT3
No. Description
1 SENSOR-CONNECTION LINE
2 TEACH-BUTTON
3 LED RED DIRT STATUS DISPLAY
4 LED YELLOW SWITCHING STATUS DISPLAY
Flashing
Teach-
Button.
NCC/NOC Teach Mode
1x NOC (normally open contact)
Normal Teach
2x NOC (normally open contact)
Minimal Teach
3x NCC (normally closed contact)
Normal Teach
4x NCC (normally closed contact)
Minimal Teach
If the sensor LD86PCT3 is used as product sensor with leading edge detection, you will
have to adjust the teach mode NCC (normally closed contact) normal teach. If the sen-
sor is used as low label warning, you will have to adjust the teach mode NOC (normally
open contact) normal teach.
