Chapter 6 Installation and Initial Operation Alpha Compact 32708612
Version: 14.12.2012 page 60 of 135
Loading and Changing Label Material
Safety Instructions
Danger of drawing in by rotating elements.
DANGER OF DRAWING IN
Rotating elements at labeler, rewinder, web brake and rollers of
the friction unit.
Disconnect labeler from power voltage when performing any
work.
Danger of damage.
The rewinder has a free-wheel that avoids the winding up of the
label liner material. It can be damaged by forcibly turning
against the wind-up. Do never turn the rewinder against rewind
direction.
Label web guiding for Wipe-On Mode

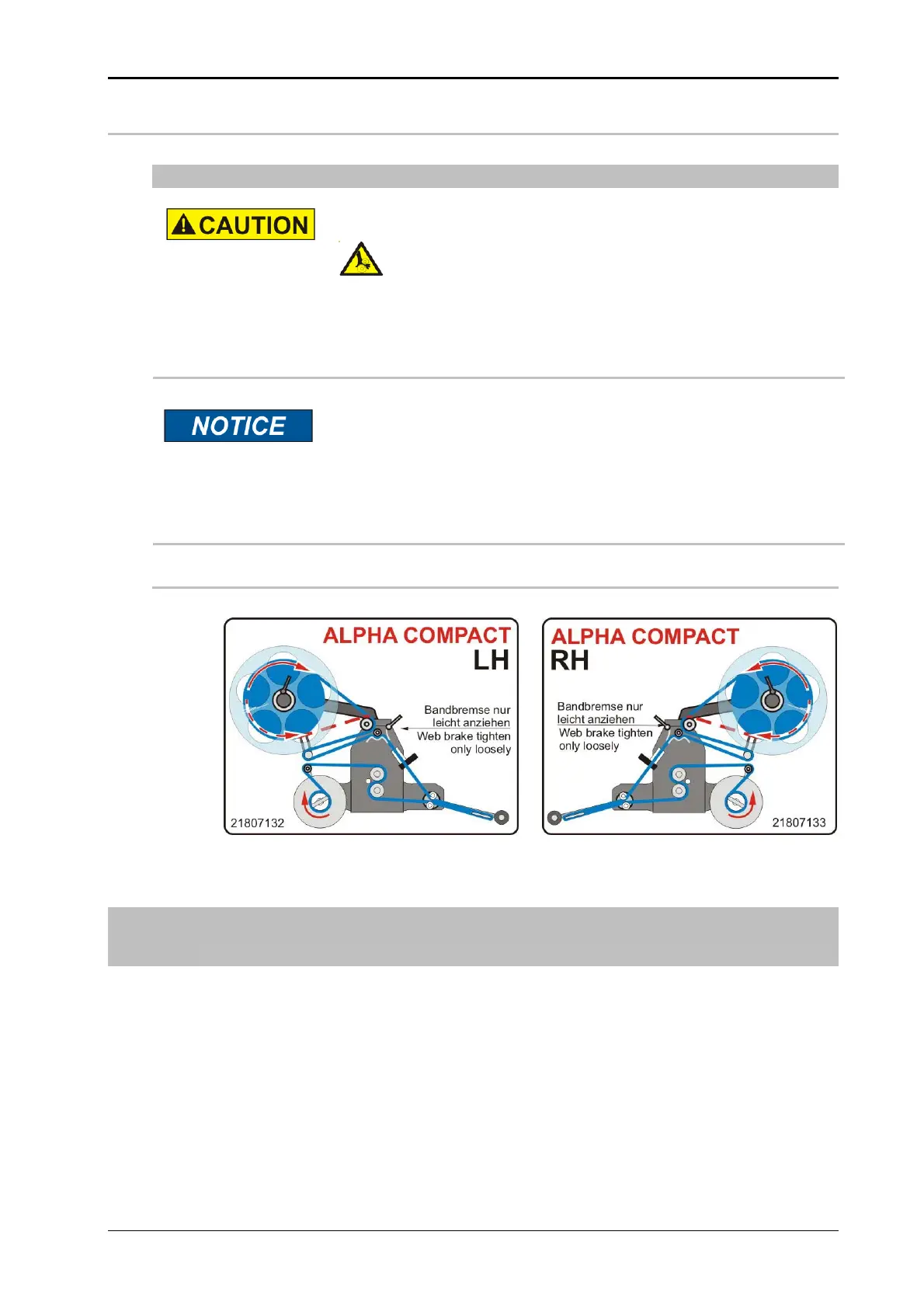

Fig.: 6-20 Loading Scheme LH Fig.: 6-21 Loading Scheme RH
The threading scheme is sticked onto the labeler. For a better understanding, it shows
the label web without traverse, mouning or hand guard. If the labeler has optional special
equipment, an appropriate threading scheme is sticked onto the labeler.
