Weber ALPHA COMPACT User Manual

Chapter 6 Installation and Initial Operation Alpha Compact 32708612
Version: 14.12.2012 page 68 of 135

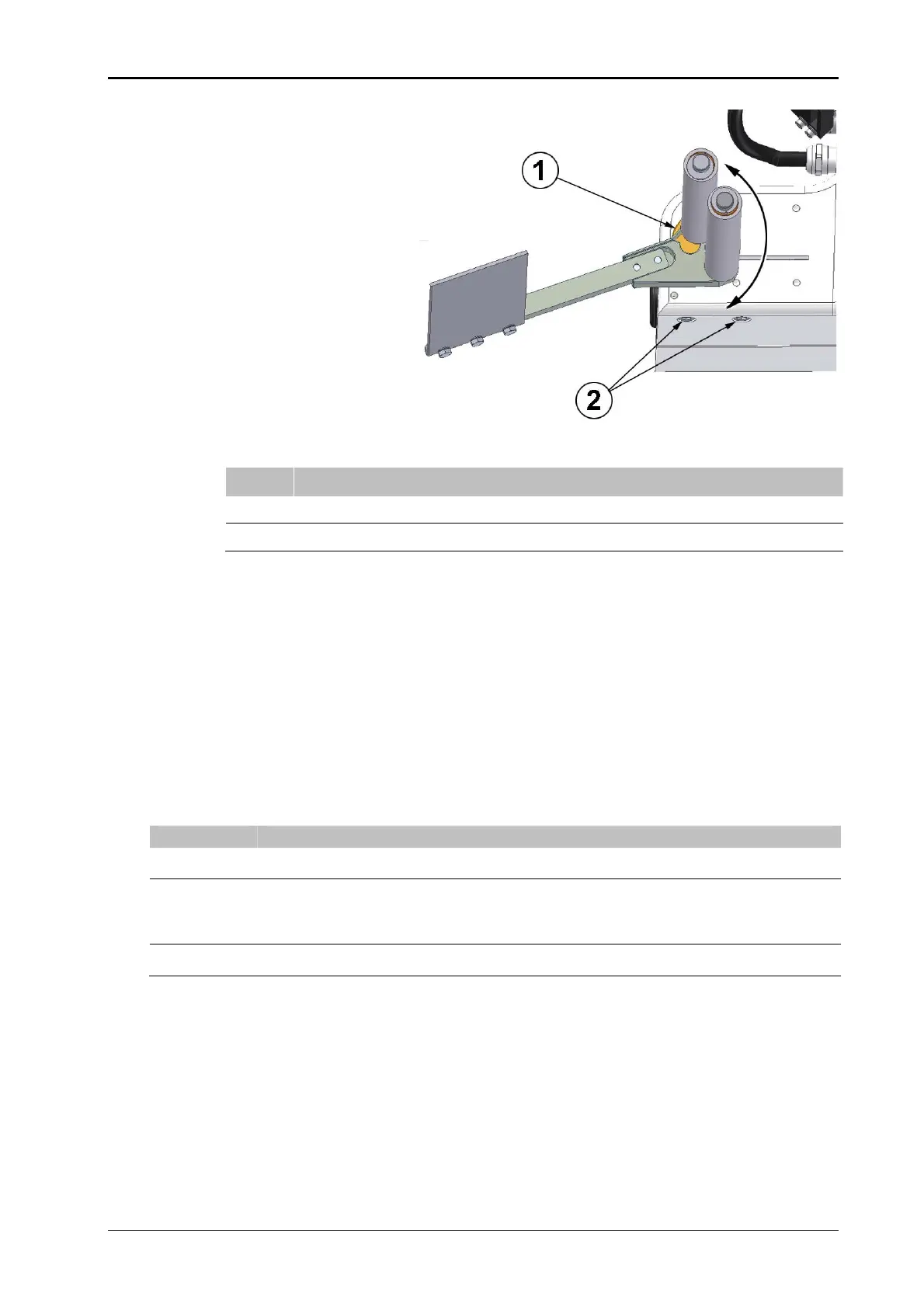

Fig.: 6-26: Adjust extender bearing
No. Description
1
EXTENDER BEARING
2
CLAMPING SCREWS
Requirements
 Product feed is stopped.
 Disconnect labeler from voltage supply.
Required equipment:
 5mm Hexagon socket wrench
Instruction
Please adjust the distance of the peeler blade’s mounting to the deflection roller as fol-
lows.
Step Procedure
1
Loosen the both screws (Fig.: 6-27, Pos.2) to clamping.
2
Turn the extender bearing to that the gap between peeler blade’s mounting and
deflection roller is not more than 5 mm.(Check the gaps distance (e.g. with a 4mm
and 5mm hexagon socket wrench).
3
Tighten again the both screws (Fig.: 6-27, Pos.2) to clamping.
